Description & Specification

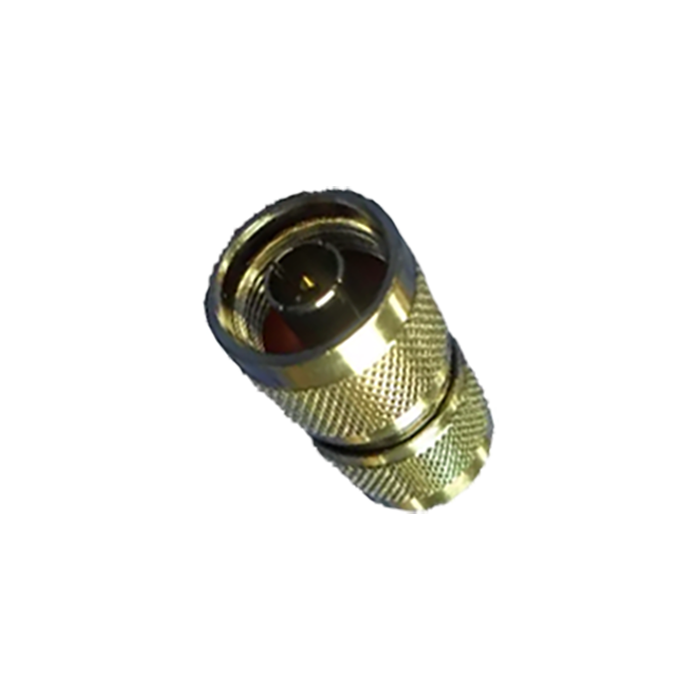

N-Type Male Precision Adapter

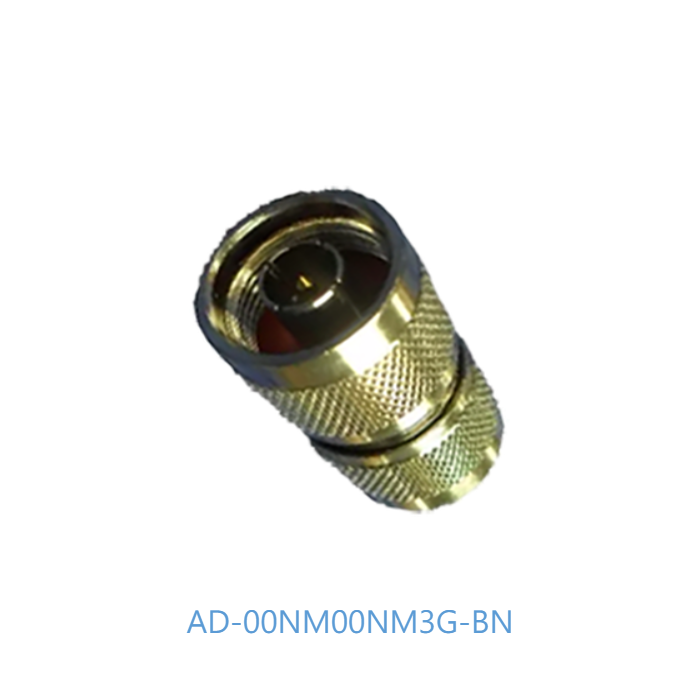

Model: AD-00NM00NM3G-BN | DC - 3GHz | Male to Male
The AD-00NM00NM3G-BN is a high-performance coaxial adapter designed for seamless signal transition and equipment coupling within the S-band spectrum. Optimized for a frequency range up to 3GHz, it ensures minimal signal loss and reflection with an industry-leading VSWR profile. This adapter is a critical component for laboratory testing, telecommunications maintenance, and field antenna deployments where Signal Integrity must be maintained across diverse operating environments.
Core Electrical Specifications
| Frequency Range | DC to 3 GHz |
| V.S.W.R (MAX) | 1.1 : 1 |
| Impedance | 50 Ohm |
| Series Type | N-Male to N-Male |
| Contact Gender | Male to Male |
Material & Mechanical Parameters
| Body Material | Copper Nickel-Plated |
| Center Pin Material | Gold-Plated Pin |
| Outline Configuration | Straight |
| Connector Standard | MIL-STD-348 |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Engineering Features
High Shielding Effectiveness
The precision-machined copper nickel body provides excellent EMI shielding and structural rigidity, essential for maintaining Signal Integrity in complex RF environments.
Low Loss Connection
Gold-plated center pins ensure superior conductivity and minimize insertion loss across the 3GHz spectrum, providing reliable measurements for wireless data links.
Universal N-Type Interface
Features a standardized N-type male-to-male interface with knurled coupling nuts, allowing for secure, high-torque manual installation without specialized tools.
Durable Field Design
Engineered for mechanical longevity and corrosion resistance, ensuring stable electrical contact over hundreds of mating cycles in both lab and tactical deployments.
