Description & Specification

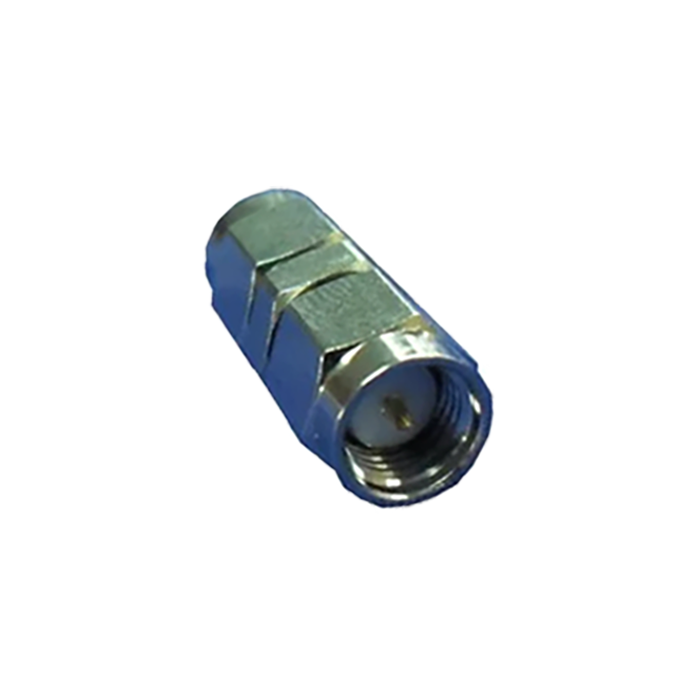

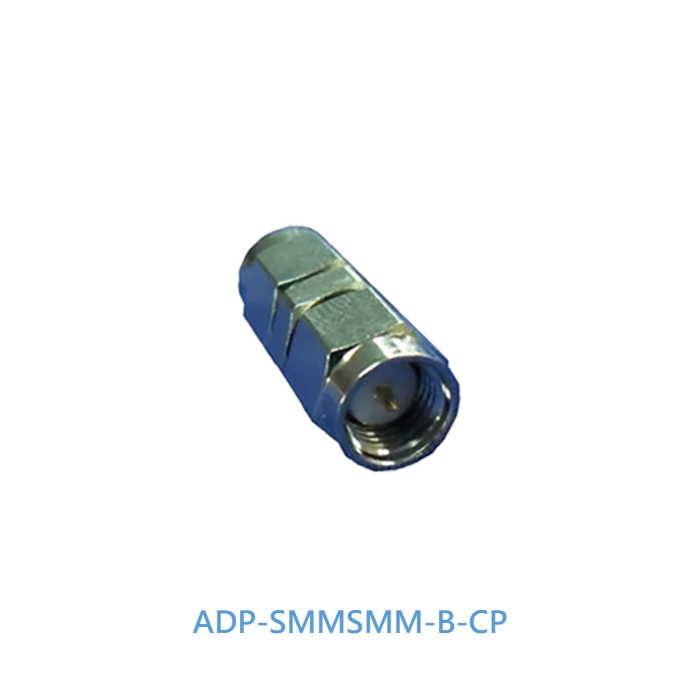

SMA Male to SMA Male Adapter
DC - 18 GHz | 50 Ohm | V.S.W.R ≤ 1.25 | Gold-Plated Pins
The SMA-PP is a high-reliability SMA Male to SMA Male interconnect solution designed for mission-critical RF applications requiring precision signal integrity from DC to 18 GHz. Engineered for Signal Defense systems and advanced communication dominance, this adapter features a robust Copper Nickel body and high-conductivity Gold-Plated pins. Precision-machined for 50 Ohm stability, it ensures unwavering performance and mechanical endurance in mobile tactical command units and professional-grade shielding environments.
Technical Specifications
Electrical Performance
| Frequency Range | DC ～ 18 GHz |
| Impedance | 50 Ohm |
| V.S.W.R (MAX) | 1.25 : 1 |
| Interconnect Type | SMA-Male to SMA-Male |
| Outline | Straight |
Mechanical & Material Specs
| Body Material | Copper Nickel (CuNi) |
| Contact Material | Gold-Plated Precision Pins |
| Durability | Standard-Tested Military Grade |
| Operating Temp | -55°C ～ +165°C |
Key Tactical Features
High-Frequency Stability
Engineered to maintain an ultra-low VSWR of ≤ 1.25:1 across the full 18 GHz band, ensuring minimal signal reflection for critical microwave links.
Superior Signal Integrity
Equipped with gold-plated pins to maximize conductivity and prevent oxidation, supporting advanced Signal Integrity in professional networks.
Ruggedized Body Construction
The Copper Nickel body provides exceptional structural strength and resistance to corrosive field environments, ideal for tactical field use.
Precision Interconnect
Designed for seamless coupling between SMA-Female ports, providing a stable 50 Ohm path for electronic protection and surveillance hardware.
Get a Quote / Custom RF Solutions
Contact us for bulk procurement, specific plating requirements, or integrated RF cable assembly solutions.
