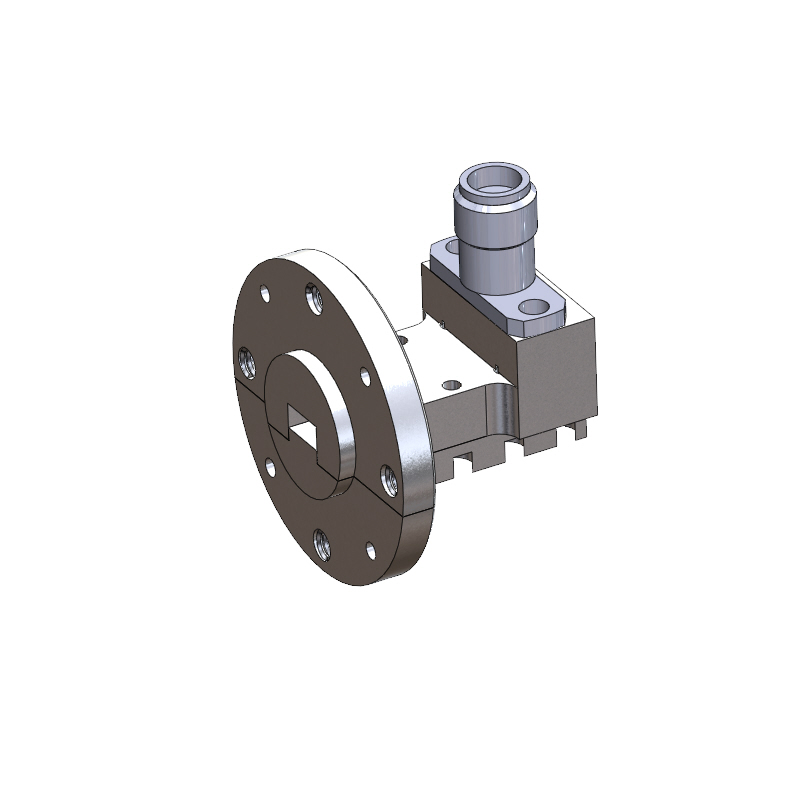

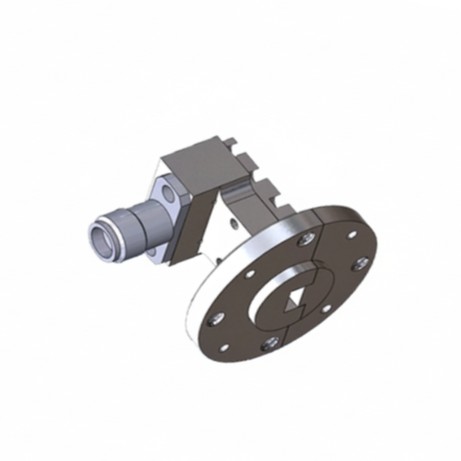

WC-19-UG-A1-VF Waveguide to Coaxial Adapter
U-Band Precision Solution | 1.85mm V-Type Interface | 40 GHz – 60 GHz
The WC-19-UG-A1-VF is a professional-grade precision Waveguide to Coaxial Adapter engineered for ultra-high frequency signal transitions within the 40 GHz to 60 GHz U-band spectrum. This premium component directly bridges standard WR-19 waveguide architectures with high-frequency coaxial lines via a precision-engineered V-Female (1.85mm) connector interface. Delivering an exceptional maximum VSWR profile of 1.25, it guarantees pure Signal Integrity and ultra-low return loss for mission-critical 6G research, automotive radar testing, and high-capacity millimeter-wave backhaul setups. Expertly CNC-machined from high-quality aluminum in Taiwan, this ultra-lightweight 20g adapter safely handles continuous power levels up to 30W (CW) while meeting demanding industrial hardware benchmarks.
Electrical Performance
| Frequency Range | 40 to 60 GHz |
| V.S.W.R (Max) | 1.25 |
| Maximum Power Handling | 30 Watts (CW) |
Mechanical & Construction
| Waveguide Standard Size | WR-19 |
| Waveguide Flange Interface | UG Flange |
| Coaxial Connector Type | V-Female (1.85mm) |

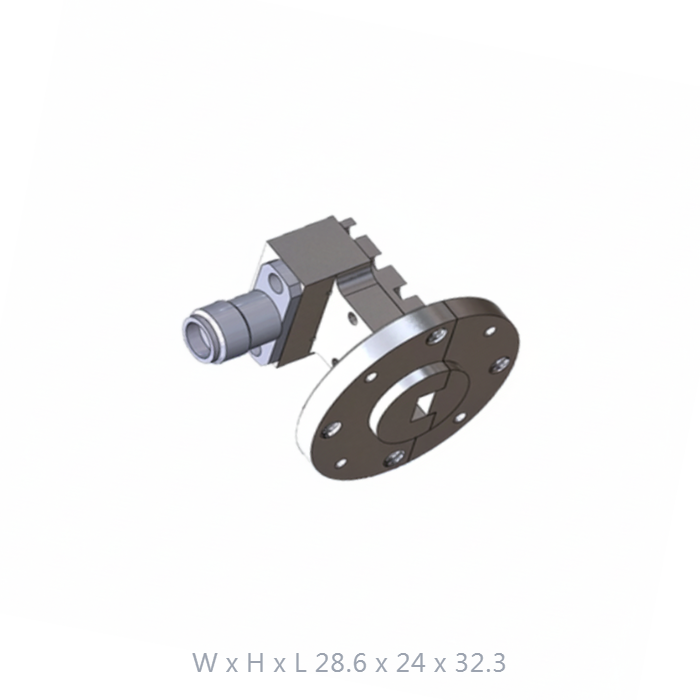

| Dimensions (W x H x L) | 32.3 x 28.6 x 24 mm |
| Net Weight | 20 g (Ultra-Lightweight) |
| Body Material | High-Grade Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Millimeter-Wave Precision
Optimized internal transition geometry ensures minimal signal reflection and low insertion loss across the entire 40 to 60 GHz U-band spectrum.
1.85mm V-Type Interface
Premium V-Female coaxial port guarantees maximum repeatable performance, stable electrical contact, and superior mating wear resistance.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
Ultra-Lightweight Profile
Weighing only 20g within a compact mechanical framework, it is perfectly suited for high-density mm-wave subsystem packaging and delicate test setups.
Inquire About Professional Waveguide Solutions
Contact our engineering team to request customized flange configurations, alternative interface alignments, or integrated RF sub-assembly specifications.
