Description & Specification

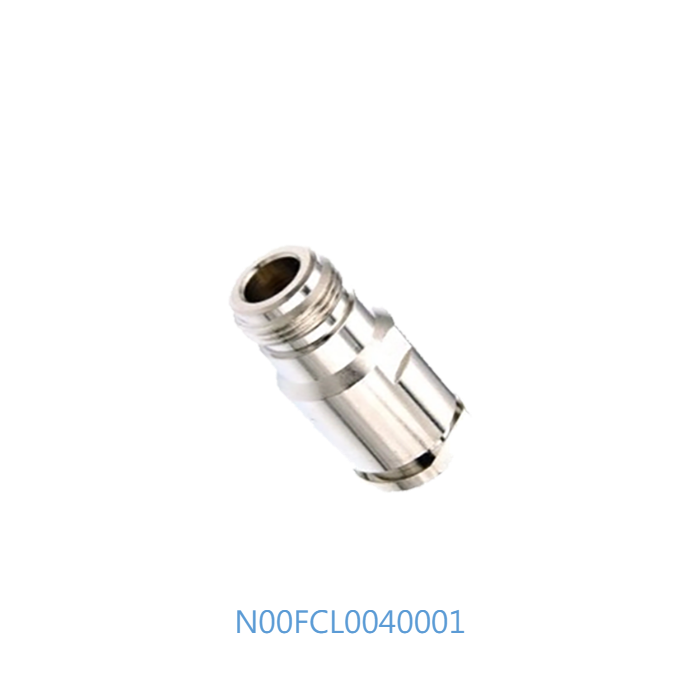

N-Type Female High-Power Clamp
Model: N00FCL0040001 | 50 Ohm | 11 GHz Precision
The N00FCL0040001 is a high-accuracy coaxial jack designed for large-diameter, high-efficiency coaxial transitions. Engineered for a straight cable entry, this connector utilizes a professional clamp mechanism to ensure a gas-tight, high-reliability connection without specialized crimping tools. Supporting high-performance standards like LMR400 and RG-214, this series is optimized for Signal Integrity, extreme weather sealing, and long-term mating reliability in both industrial wireless and mission-critical Signal Defense deployments.
| Series Type | N-Type |
| Connector Gender | Jack (Female Body) |
| Contact Gender | Female |
| Mating Type | Clamp (Compression) |
| Impedance | 50 Ohm |
| Frequency Range | 0 to 11 GHz |
High-Reliability Clamp Design
Provides a superior 360-degree electrical contact with the cable braid, ensuring high shielding effectiveness and Signal Integrity under environmental stress.
Broadband Performance
Optimized for low VSWR up to 11 GHz, providing reliable measurements for high-frequency microwave, 5G, and professional data links.
No Specialized Tools Required
The clamp mating mechanism allows for precise assembly using standard wrenches, making it the definitive choice for field repairs and tactical range adjustments.
Precision Taiwan Build
Fully designed and manufactured in Taiwan, featuring high-grade alloy construction with a corrosion-resistant finish for hundreds of mating cycles.
