Description & Specification

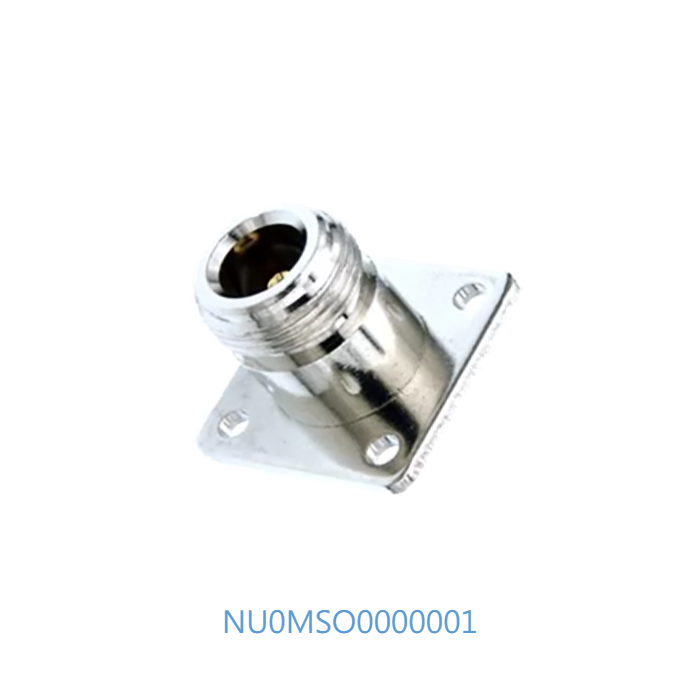

N-Type Female Square Flange Series
Model: NU0MSO0000001 | 50 Ohm | High-Stability Chassis Mount
The NU0MSO0000001 is a professional-grade coaxial connector designed for panel-mount applications requiring a high-strength mechanical interface. Its 4-hole square flange design provides superior resistance to axial and rotational forces, ensuring long-term connection reliability in intensive RF environments. With a precision solder pot terminal, this connector allows for direct, low-loss electrical coupling to internal circuitry, maintaining excellent Signal Integrity across professional telecommunications and industrial wireless hardware.
Technical Specifications
| Series Type | N-Type |
| Connector Gender | Jack (Female Body) |
| Contact Gender | Female |
| Mating Type | Solder Pot |
| Mounting Type | Square Flange (4-Hole) |
| Impedance | 50 Ohm |
| Outline Configuration | Straight Panel Mount |
Key Features
Vibration-Resistant Mounting
The 4-hole square flange architecture provides an exceptionally stable mechanical bond, ideal for mobile equipment and high-vibration tactical environments.
Superior Signal Integrity
Maintains low insertion loss and high shielding effectiveness, ensuring consistent performance in high-power transmission and sensitive signal capture.
Durable Material Build
Constructed from high-performance alloys with precision plating to ensure corrosion resistance and long-term mating reliability over hundreds of cycles.
High-Power N-Type Interface
The N-type standard supports significantly higher power throughput compared to miniature connectors, essential for professional RF infrastructure.
