Description & Specification
N-Type Female Bulkhead Series

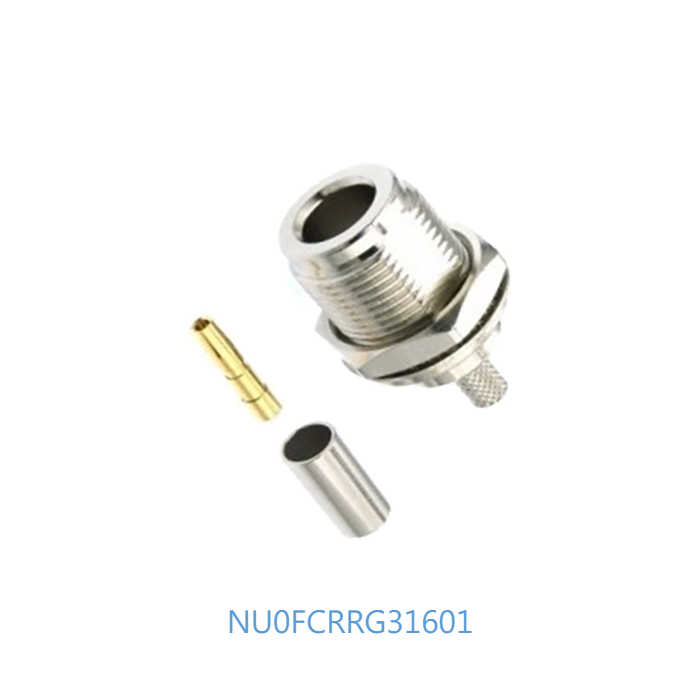

Model: NU0FCRRG31601 | 50 Ohm | Rear-Mount Precision
The NU0FCRRG31601 is a laboratory-grade N-type female connector specifically optimized for bulkhead applications. Featuring a straight-outline, rear-mount design, it provides a secure interface for chassis transitions without compromising shielding effectiveness. Engineered to support a wide range of cable diameters—from miniature RG-174/316 to large-bore RG-213/214—this series maintains excellent Signal Integrity and mechanical longevity in high-frequency wireless deployments and mission-critical telecommunications systems.
Technical Specifications
| Series Type | N-Type |
| Connector Gender | Jack (Female Body) |
| Contact Gender | Female |
| Mating Type | Crimp |
| Mounting Type | Bulkhead - Rear Mount |
| Impedance | 50 Ohm |
Key Tactical & Engineering Features
Superior Shielding Effectiveness
The precision-machined bulkhead design ensures a low-impedance ground path and high EMI shielding, critical for maintaining Signal Integrity in noisy environments.
Stable Panel Integration
Rear-mount threaded body with high-torque nut provides a vibration-resistant mechanical bond, ideal for mobile base stations and tactical hardware.
High Power Handling
The N-type architecture supports higher power throughput compared to miniature connectors, making it suitable for professional transmission equipment.
Taiwan Precision Engineering
Fully designed and manufactured in Taiwan, ensuring structural rigidity and electrical stability across hundreds of mating cycles.
