Description & Specification
N-Type Male Straight Clamp Series

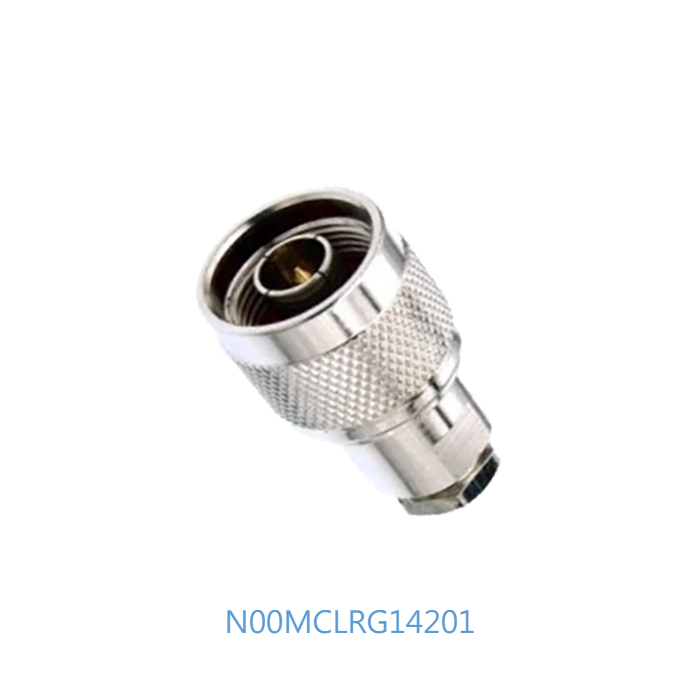

Model: N00MCLRG14201 | 50 Ohm | Precision Field Termination
The N00MCLRG14201 is a laboratory-grade coaxial plug designed for high-performance signal transmission. Engineered with a straight clamp entry, this connector offers a solderless cable attachment (for the braid) that provides exceptional shielding and physical pull-strength. Supporting standard flexible cables like RG-58 and high-temperature RG-142, this series is optimized for Signal Integrity, repeated field assembly, and long-term mating reliability in both industrial wireless and mission-critical Signal Defense deployments.
| Series Type | N-Type |
| Connector Gender | Plug (Male Body) |
| Contact Gender | Male (Center Pin) |
| Mating Type | Clamp |
| Impedance | 50 Ohm |
| Outline Configuration | Straight Cable Entry |
High-Reliability Clamp Design
Provides a superior 360-degree electrical contact with the cable braid, ensuring high shielding effectiveness and Signal Integrity under environmental stress.
No Specialized Tools Required
The clamp mating mechanism allows for precise assembly using standard wrenches, making it the definitive choice for field repairs and tactical range adjustments.
Superior Signal Integrity
Maintains low insertion loss and high return loss across a wide frequency spectrum, critical for maintaining accurate signal defense parameters.
Aerospace Grade Build
Precision-machined body with corrosion-resistant finish ensures structural rigidity over hundreds of mating cycles in professional environments.
