Description & Specification

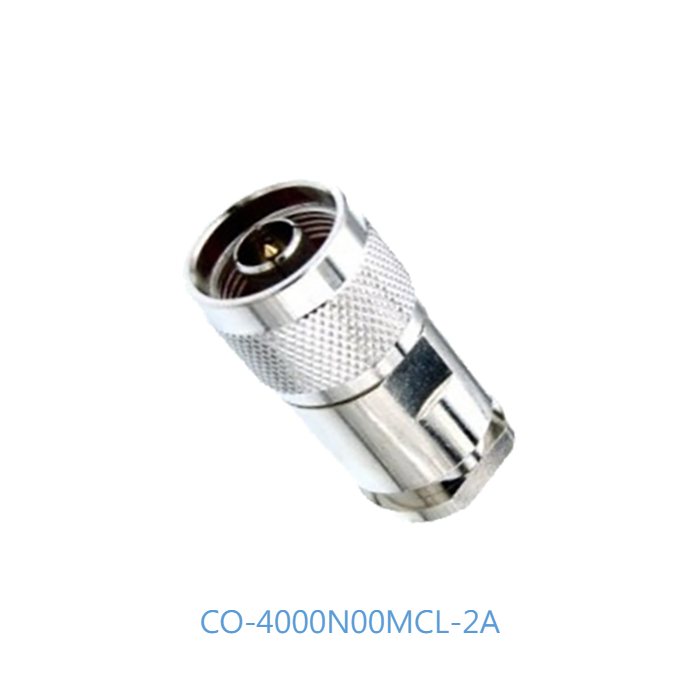

N-Type Male High-Power Clamp
Model: CO-4000N00MCL-2A | 50 Ohm | 11 GHz Precision
The CO-4000N00MCL-2A represents an elite-tier coaxial solution for high-diameter, low-loss RF transitions. Engineered for straight cable entry, this connector facilitates maximum power throughput with minimal insertion loss across a broad spectrum up to 11 GHz. Supporting high-performance standards like LMR-400, FT400, and RG-214, this series is optimized for Signal Integrity, extreme weather sealing, and field-reusable assembly in both industrial wireless and mission-critical Signal Defense deployments.
| Series Type | N-Type |
| Connector Gender | Plug (Male Body) |
| Contact Gender | Male (Center Pin) |
| Mating Type | Clamp (Compression) |
| Impedance | 50 Ohm |
| Frequency Range | 0 to 11 GHz |
High-Reliability Clamp Design
Ensures a superior 360-degree electrical bond with the cable braid, providing excellent shielding effectiveness and physical pull-strength without crimping tools.
Broadband Signal Integrity
Optimized for low VSWR up to 11 GHz, ensuring reliable performance in demanding Microwave, 5G, and high-frequency data links.
Weather-Resistant Sealing
The integrated compression gasket and threaded coupling provide a secure, environmentally stable connection ideal for mobile base stations and outdoor tactical hardware.
Precision Taiwan Build
Fully designed and manufactured in Taiwan, featuring high-grade alloy construction with corrosion-resistant finish for long-term mating cycles.
