Description & Specification
N-Type Female Square Flange Series

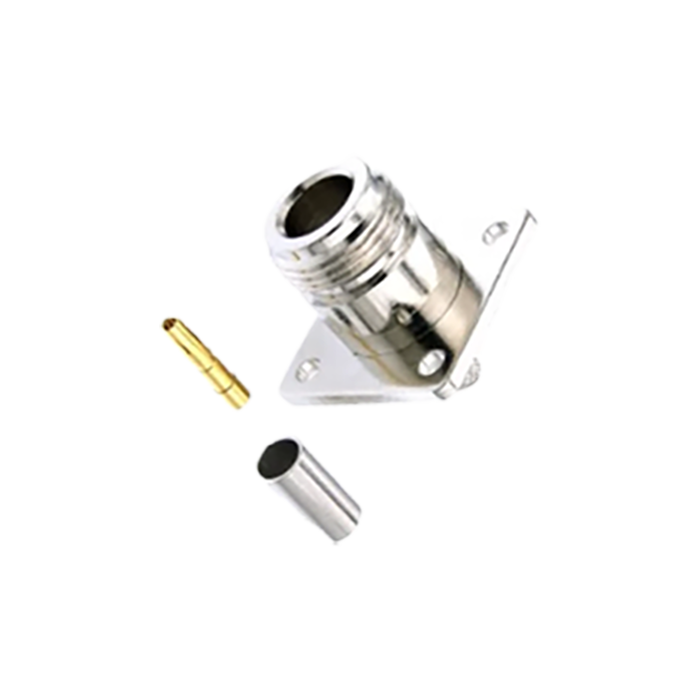

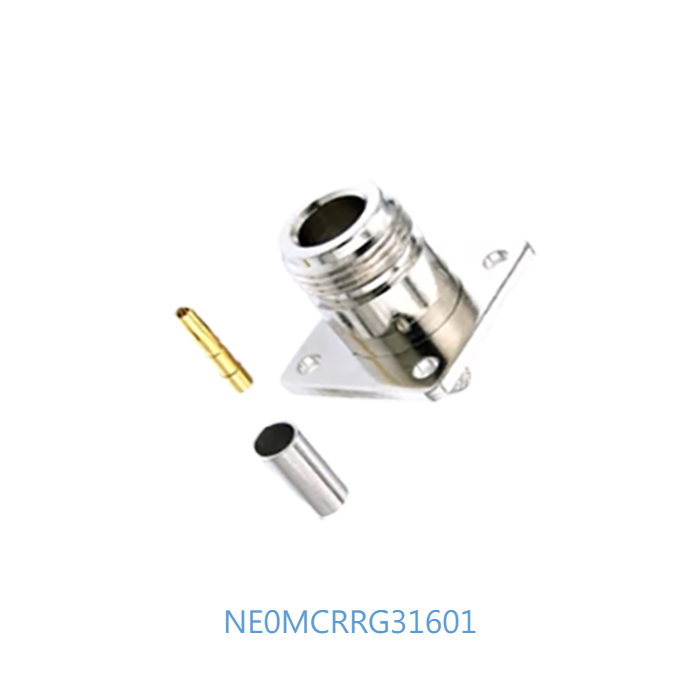

Model: NE0MCRRG31601 | 50 Ohm | Panel-Mount Crimp
The NE0MCRRG31601 is a professional-grade coaxial connector designed for chassis-mount applications requiring a high-strength mechanical interface and reliable cable termination. Its 4-hole square flange design provides superior resistance to axial stress and torque, ensuring consistent electrical contact in intensive RF environments. Engineered to accommodate a comprehensive range of cables—including RG-58, RG-174, and RG-316—this connector maintains excellent Signal Integrity and durability for industrial wireless hardware and telecommunications infrastructure.
Core Connector Specifications
| Series Type | N-Type |
| Connector Gender | Jack (Female Body) |
| Contact Gender | Female |
| Mating Type | Crimp |
| Mounting Type | Square Flange (4-Hole) |
| Impedance | 50 Ohm |
| Outline Configuration | Straight Panel Mount |
Key Tactical & Engineering Features
Vibration-Resistant Mounting
The 4-hole square flange architecture provides an exceptionally stable mechanical bond, ideal for mobile equipment and high-vibration tactical environments.
Superior Signal Integrity
Maintains low insertion loss and high shielding effectiveness, ensuring consistent performance in high-power transmission and sensitive signal capture.
High-Power N-Type Interface
The N-type architecture supports higher power throughput compared to miniature connectors, essential for professional RF infrastructure.
Taiwan Precision Engineering
Fully designed and manufactured in Taiwan, ensuring structural rigidity and electrical stability over hundreds of mating cycles.
