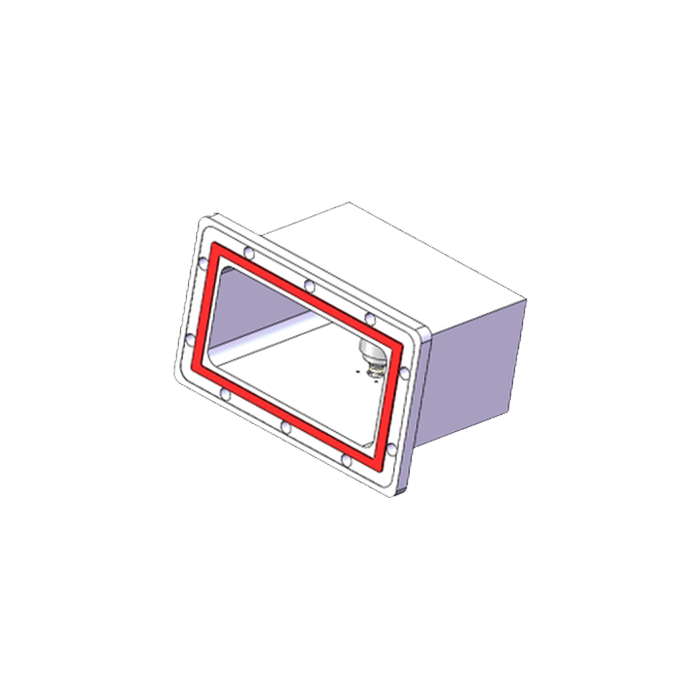

| Frequency Range | 1.14 GHz to 1.73 GHz (L-Band Spectrum) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 1000 Watts (1kW CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-650 (R14 / WG6 Layout) |
| Waveguide Flange Designation | UG417A/U Style Layout (Standardized PDR Layout with Gasket Groove) |
| Coaxial Connector Interface | N-Female Port Layout (Precision Grade) |

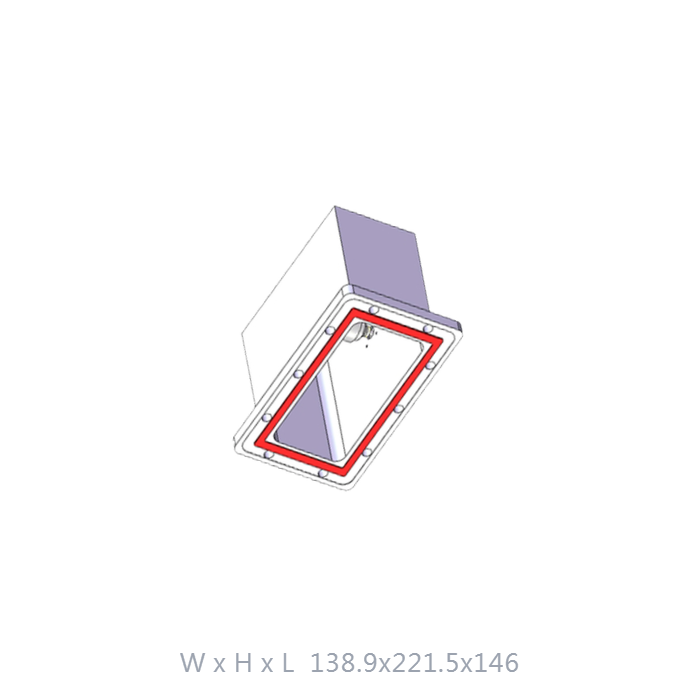

| Physical Dimensions (L x W x H) | 138.9 x 221.5 x 146 mm |
| Net Weight | 2200 g (2.2 kg Industrial Heavy-Duty Architecture Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum Core |
| Connector Port Material | Premium Wear-Resistant SUS/Stainless Steel |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Engineered precisely to match stringent global parameters for rectangular WR-650 waveguide layouts, ensuring optimal structural tolerances and clean, reproducible mode coupling factors.
Reliably manages continuous wave transmission thresholds up to 1000W CW, utilizing its high-grade machined aluminum housing as an integrated heat sink for flawless thermal dissipation parameters.
Precision designed and manufactured in Taiwan under rigid quality assurance guidelines, guaranteeing outstanding mechanical flat tolerances, stable internal launcher boundaries, and calibration constancy.
A premium 2.2 kg structural architecture using high-strength aluminum and passivated stainless steel interface details, completely preventing thread deformation and mechanical drift.
Precision-tuned internal cavity profiles eliminate line anomalies, providing the uncompromised return loss characteristics and stable 1.25 VSWR essential for high-fidelity boresight accuracy tests.
Contact our technical engineering team today to request certified alternative mechanical drilling layouts, individual certified V.S.W.R plots, or structural support guidelines for massive horn antenna sub-assemblies.
