| Frequency Range | 1.14 GHz to 1.73 GHz (L-Band Spectrum) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 1000 Watts (1kW CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-650 (R14 / WG6 Layout) |
| Waveguide Flange Designation | UDR Style Flange (UG417A/U Style Compatible Layout) |
| Coaxial Connector Interface | N-Female Interface Premium Port |

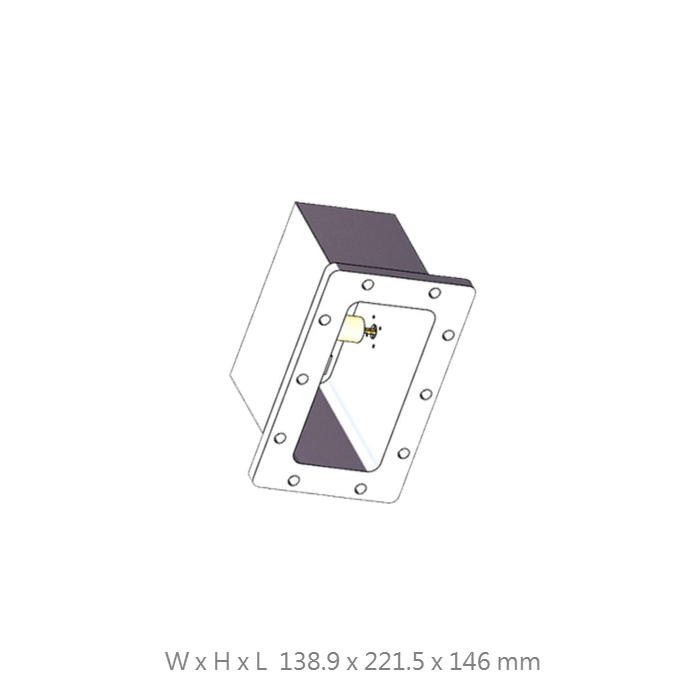

| Physical Dimensions (W x H x L) | 138.9 x 221.5 x 146 mm |
| Net Weight | 2200 g (2.2 kg Industrial Heavy-Duty Architecture Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Connector Interface Material | Premium Wear-Resistant Stainless Steel (SUS) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Precision-engineered to handle robust continuous wave power loads up to 1kW CW reliably without thermal breakdown, providing a trusted transition interface for radar transmitter feeds and industrial modules.
Equipped with a high-durability stainless steel (SUS) N-Female coaxial interface port, ensuring superior electrical contact stability and maximum wear resistance through extensive laboratory duty cycles.
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal signal leakage and clean mapping flatness across the full 1.14–1.73 GHz operating spectrum.
Fully machined from high-grade aluminum to ensure exceptional structural stiffness and effective thermal dissipation while maintaining balanced stability for deployment on positioners or masts.
Contact our technical engineering team today to request certified individual V.S.W.R plot metrics, alternative custom flange drilling patterns, specialized non-reflective treatments, or alternative connector configurations.
