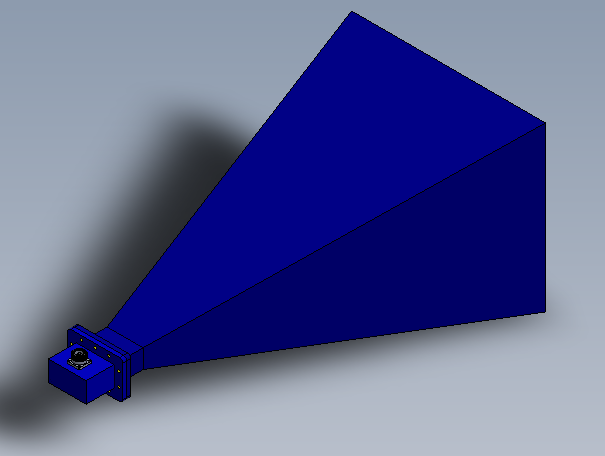

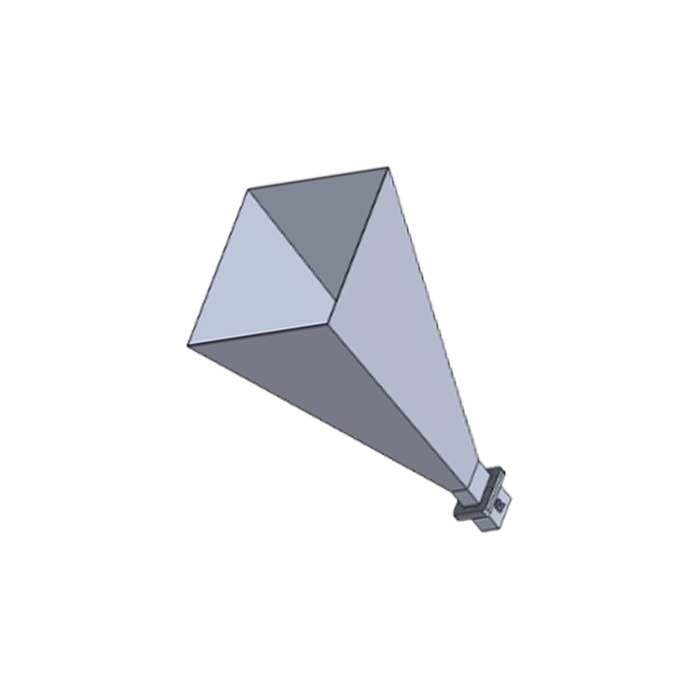

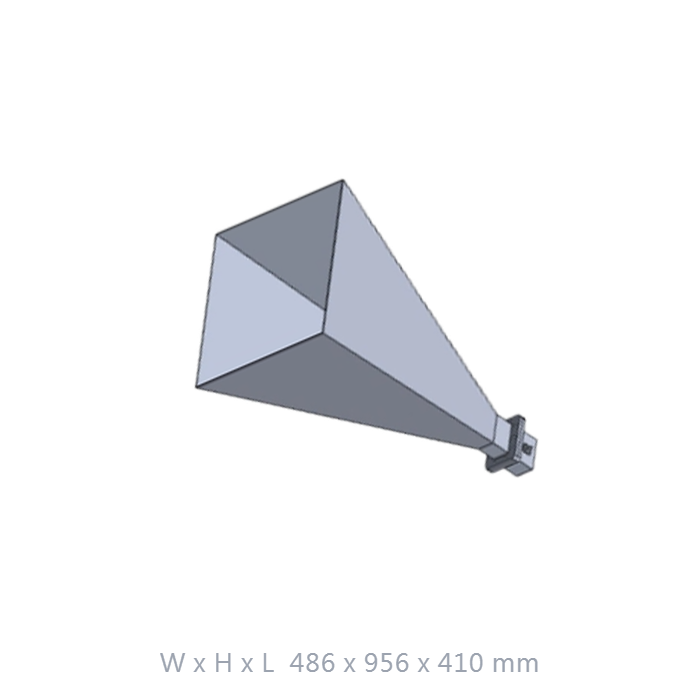

HS-34020A-SF Standard Gain Horn Antenna
2.2 GHz to 3.3 GHz | 20 dBi High Gain | WR-340 Waveguide
The HS-34020A-SF is a high-performance Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 2.2 GHz to 3.3 GHz frequency range, it delivers a superior directional gain of 20 dBi. Designed for precision microwave measurements in the S-band spectrum, this antenna utilizes a WR-340 waveguide styling and features a premium Stainless Steel N-Female connector to ensure stable signal integrity and long-term durability in professional laboratory and field environments.
Technical Specifications
Electrical Specifications
| Frequency Range | 2.2 GHz - 3.3 GHz |
| Gain | 20 dBi |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Connector | Stainless Steel N-Female |
Mechanical Specifications
| Waveguide Size | WR-340 |
| Material | Aluminum Alloy / Stainless Steel Connector |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
S-Band Optimization
Specifically tuned for the 2.2 - 3.3 GHz spectrum, providing high accuracy for satellite communication and radar calibration.
Specifically tuned for the 2.2 - 3.3 GHz spectrum, providing high accuracy for satellite communication and radar calibration.
Superior High Gain
Delivers a reliable 20 dBi gain profile, making it a premier reference antenna for precise S-band laboratory measurements.
Delivers a reliable 20 dBi gain profile, making it a premier reference antenna for precise S-band laboratory measurements.
Stable Directional Performance
Engineered for uniform gain and stable radiation patterns across the entire operating bandwidth.
Engineered for uniform gain and stable radiation patterns across the entire operating bandwidth.
Stainless Steel Connector
Equipped with a high-grade stainless steel N-Female connector for improved wear resistance and RF integrity.
Equipped with a high-grade stainless steel N-Female connector for improved wear resistance and RF integrity.
Rugged Construction
Manufactured using high-quality aluminum alloy to ensure mechanical stability and lightweight durability.
Manufactured using high-quality aluminum alloy to ensure mechanical stability and lightweight durability.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet the most stringent industrial RF testing standards.
Precision designed and manufactured in Taiwan to meet the most stringent industrial RF testing standards.
Contact Us
For pricing, data sheets, or technical support regarding the HS-34020A-SF, please contact us:
