WR159 4.9GHz to 7.05GHz 20dbi Standard Gain Waveguide Horn Antenna, UDR Flange N-Female

WR159 4.9GHz to 7.05GHz 20dbi Standard Gain Waveguide Horn Antenna, UDR Flange N-Female

Model No: HS-159-UDR-20A-NF

Product Datasheet: Download

Mechanical Drawing: Download

  • Waveguide Type: WR-159
  • Frequency: 4.9GHz to 7.05GHz
  • Waveguide Coaxial Adapter Model: WC-159-UDR-NF
  • Waveguide input Mode: WI-159-UDR-20
  • Connector: N-Female(SUS-303)
  • V.S.W.R: 1.25
  • Gain: 20 dBi
  • Wieght(g): 980
  • Size (mm): 174x256x309

Quantity:
INQUIRY

  • Description

  • Mechanical Specs

  • Original Model: HS-15920A-NF
  • Waveguide Type:WR159 / WG13 / R58
  • Connector: Stainless steel N-Female
  • Waveguide Flange :UDR 58 / UER58 / CPR159F / CMR 159

Application & Feature

  • 4.9GHz to 7.05GHz
  • 6061 Aluminum metal alloy
  • Antenna measurement
  • Radar Detection System
  • Wireless Communication
  • Spectrum Monitoring
  • Electromagnetic interference Testing (EMI test)

Electrical Specs

Frequency Range

4.9GHz - 7.05GHz

VSW R

1.5:1 (average)

Antenna Type

Horn

Radiation

Directional

Gain

16-19 dBi

Polarization

Vertical or Horizontal

Maximum Power

250 Watts

Vertical Beamwidth

21 Deg

Horizontal Beamwidth

16 Deg

Impedance

50 Ohm

FBR

29db

Antenna Design

WR159

Connector

N-Female

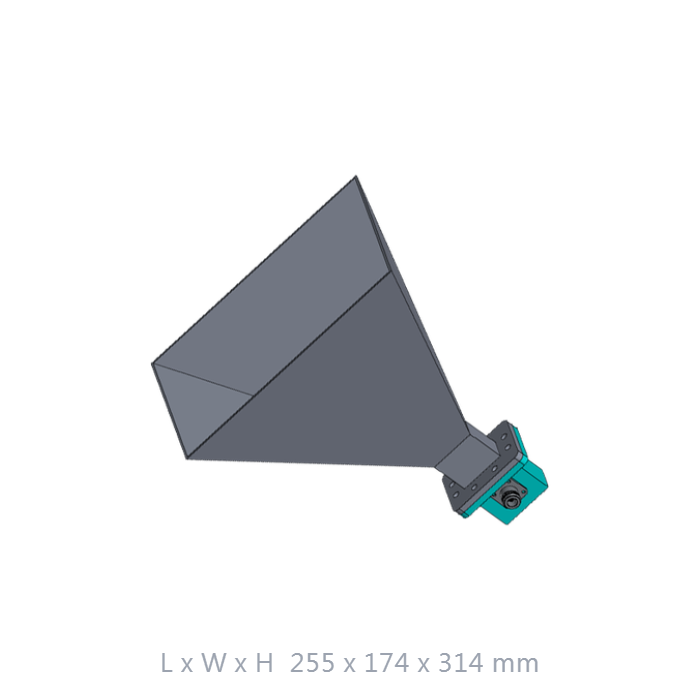

Length Width

255x174mm

Height

314 mm

Antenna Weight

796g

Application

Indoor

Parts Material

Aluminum

L Mount Style

N/A

Mounting

N/A

Mount Style

N/A

Indexing Ring Mounting

N/A

Storage Temperature

-20 to +80

Operating Temperature

-10 to +60

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission, and other

RoHS, WEEE, CE, FCC
