C-Band Standard Gain Waveguide Horn
Model: HS-159-UDR-15A-NF | 4.9 GHz - 7.05 GHz | UDR Flange
The HS-159-UDR-15A-NF is a high-precision Waveguide Horn Antenna utilizing WR-159 architecture to deliver exceptional microwave performance. Optimized for broad-spectrum C-band applications, it provides a uniform 15 dBi gain and matched 54° beamwidths for predictable radiation envelopes. Its robust aluminum body and SUS-303 stainless steel connector ensure industrial-strength reliability, making it the definitive instrument for Signal Integrity analysis, Radar calibration, and high-stakes Signal Defense operations.
Core Electrical Specifications
| Frequency Range | 4.9 GHz to 7.05 GHz |
| Standard Gain | 15 dBi |
| V.S.W.R | 1.25 (Optimized) |
| Maximum Power Handling | 380 Watts |
| -3dB Beamwidth (E / H Plane) | 54° / 54° |
| Connector Interface | N-Female (SUS-303) |
Mechanical & Environmental Parameters
| Waveguide Type / Flange | WR-159 / UDR Flange |

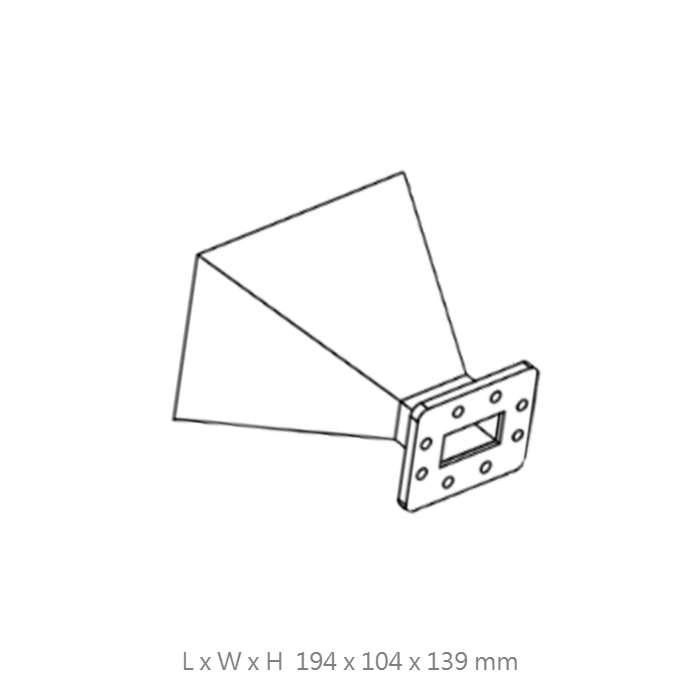

| Dimensions (L x W x H) | 194 x 104 x 139 mm |
| Net Weight (N.W.) | 501 g |
| Body Material | High-Quality Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
Symmetric Radiation Profile
Matched 54° E/H plane beamwidths provide the ultra-stable, symmetric radiation pattern necessary for repeatable laboratory antenna measurements.
Precision Signal Integrity
Maintains an exceptionally low VSWR of 1.25 across the entire 4.9-7.05 GHz band, ensuring maximum energy transfer and accurate data collection.
Corrosion-Resistant Architecture
Utilizes SUS-303 stainless steel for the N-Female interface, offering superior environmental resistance and mechanical longevity in tactical deployments.
High Power Reliability
Engineered to handle up to 380W of input power, making it suitable for high-intensity microwave radiators and professional signal security operations.
