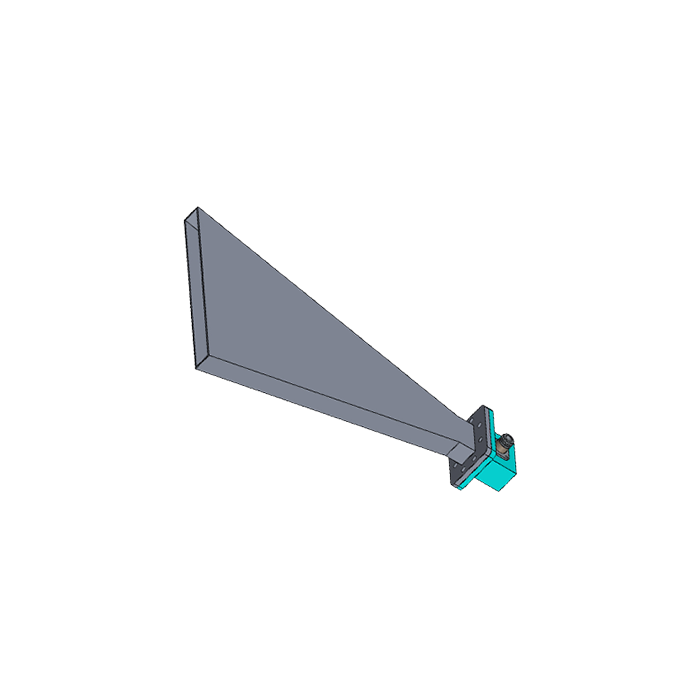

HS-159-UDR-10H-NF Wide-Elevation Horn Antenna
Advanced WR-159 standard gain horn antenna (4.9 - 7.05 GHz) engineered with a specialized 99° wide E-plane profile. Built for high-power elevation monitoring and mission-critical RF test environments.
Technical Specifications
| Frequency Range | 4.9 - 7.05 GHz |
| Gain (Typical) | 10 dBi |
| Peak Power (CW) | 380 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 17° / 99° |
| Connector Interface | N-Female (Stainless Steel SUS-303) |
| Waveguide / Flange | WR-159 / UDR |

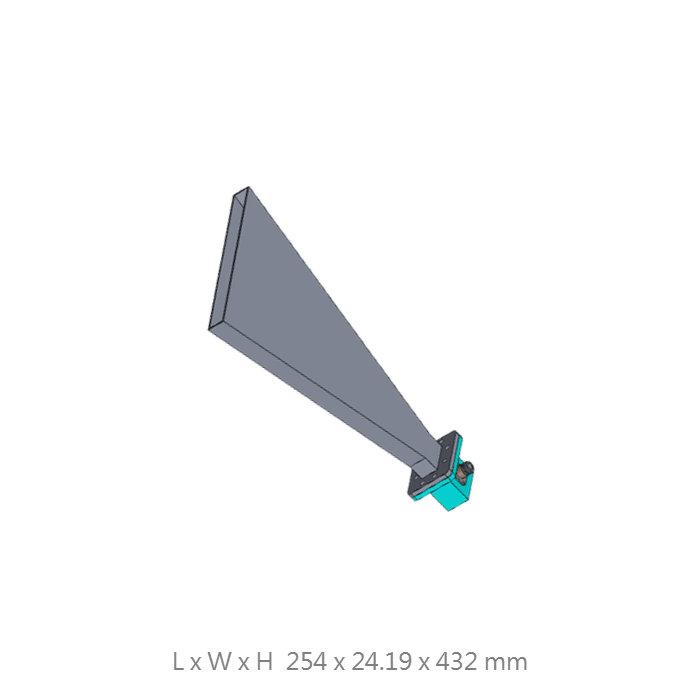

| Dimensions / Weight | 254 x 24.19 x 432 mm / 980 g |
Design & Material Highlights
99° Vertical Sector Coverage
Specialized E-plane radiation pattern optimized for altitude monitoring and wide-elevation signal capture in C-band tactical deployments.
Premium SUS-303 Interface
Equipped with a high-durability stainless steel N-Female connector, ensuring maximum corrosion resistance and stable signal integrity under continuous 380W loads.
Aerospace-Grade Aluminum
CNC-machined from premium aluminum alloy to ensure exceptional structural rigidity and a stable 10 dBi gain across the C-band spectrum.
Custom mounting fixtures or specific calibration reports are available upon request.
