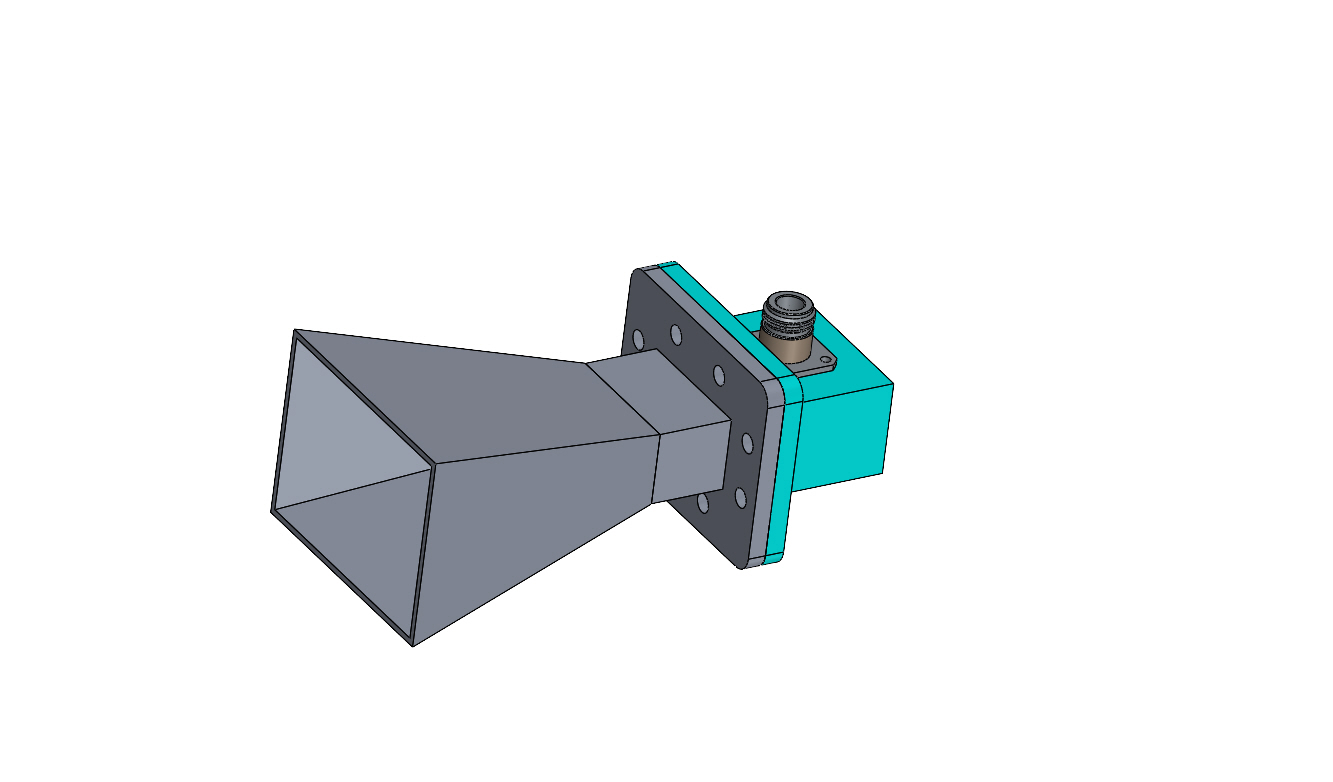

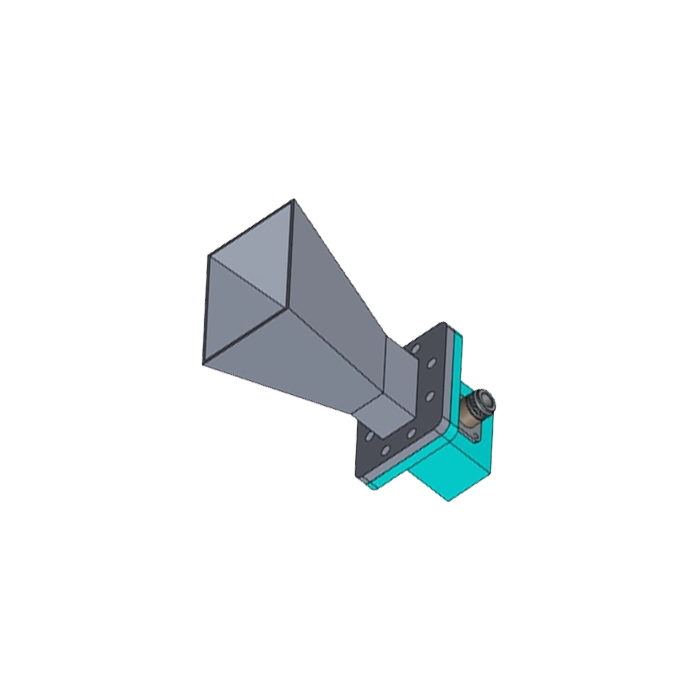

| Frequency Range Class | 4.9 - 7.05 GHz (Continuous C-Band Spectrum Optimization) |
| Waveguide Standard Size | EIA WR-159 Geometry Layout |
| Nominal Gain (Typical) | 10 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Peak Power Handling | 380 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 54° / 54° (Wide Symmetrical Radiation Envelope) |
| Nominal System Impedance | 50 Ohms |
| Physical Dimensions (W x H x L) | 63 x 83 x 173.4 mm |
| Antenna Net Weight Profile | 420 g (Compact Space-Optimized Design) |
| Waveguide Flange Interface | Standardized UDR Flange Configuration |
| Coaxial Connector Type | Stainless Steel N-Female Interface Port (SUS-303) |
| Structural Body Material | Aerospace-Grade Precision CNC Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Optimized radiation profile ensures consistent signal illumination over a wide field, perfect for broad-area spectrum monitoring and tactical RF setups.
High-durability stainless steel N-Female connector ensures maximum mechanical reliability and superior anti-corrosion protection in demanding field deployments.
CNC-machined from aerospace-grade aluminum to handle 380W continuous wave transmission with superior thermal stability and structural rigidity.
Fully adaptable architectural framework with options for customized mounting solutions, waterproof radomes, or specific calibration certificates available upon project request.
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, high-volume project arrays, or customized flange options.
