HS-159-UDR-10H-SF Sectoral Horn Antenna
Advanced C-band Monitoring | 99° Wide E-Plane | Precision RF Grade
The HS-159-UDR-10H-SF is an advanced C-band sectoral horn antenna designed for frequencies between 4.9 GHz and 7.05 GHz. It features a specialized 99° wide E-plane radiation profile, making it precision-engineered for wide-elevation monitoring and professional RF test environments. Constructed with high-grade materials for durability and performance, it provides a stable and reliable signal capture solution for tactical and laboratory applications.
Electrical & RF Performance
| Frequency Range | 4.9 - 7.05 GHz |
| Gain (Typical) | 10 dBi |
| Peak Power (CW) | 250 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 17° / 99° |
| Connector Interface | SMA-Female (SUS-303 Stainless Steel) |
| Waveguide / Flange | WR-159 / UDR |
Mechanical & Physical

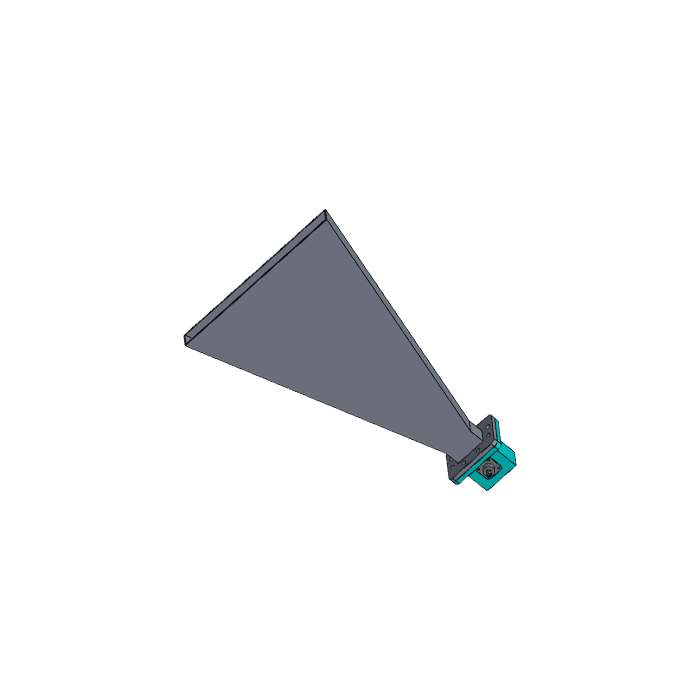

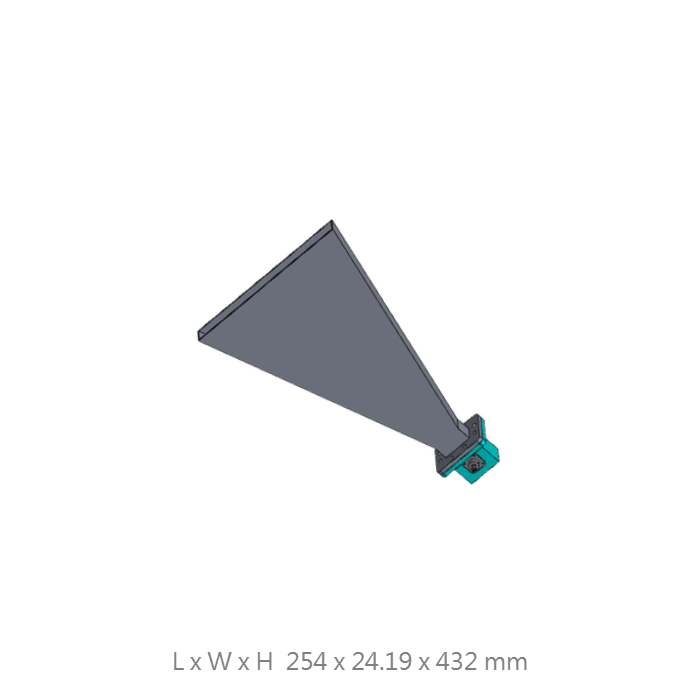

| Dimensions | 254 x 24.19 x 432 mm |
| Weight | 980 g |
99° Vertical Sector Coverage
Specialized E-plane radiation pattern optimized for altitude monitoring and wide-elevation signal capture in C-band tactical deployments.
Premium SUS-303 Interface
Equipped with a high-durability stainless steel SMA connector, ensuring maximum corrosion resistance and stable signal integrity in field use.
Aerospace-Grade Aluminum
CNC-machined from premium aluminum alloy for exceptional structural rigidity and a stable 10 dBi gain across the C-band spectrum.
Contact FT-RF Engineering Division
Contact our technical engineering subdivision today to request official quote sheets, individual traceable gain calibration plots, or customized mounting solutions.
