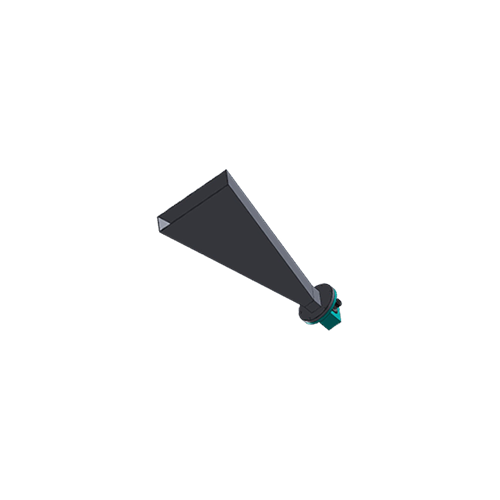

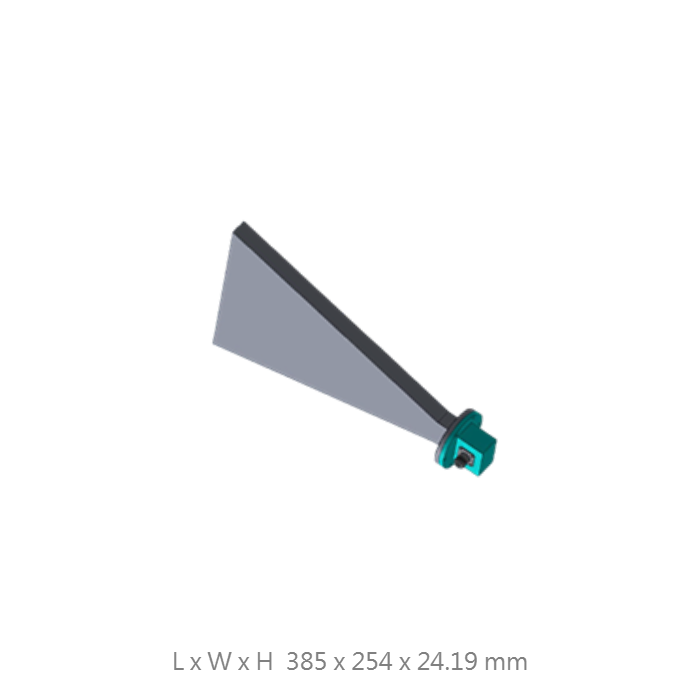

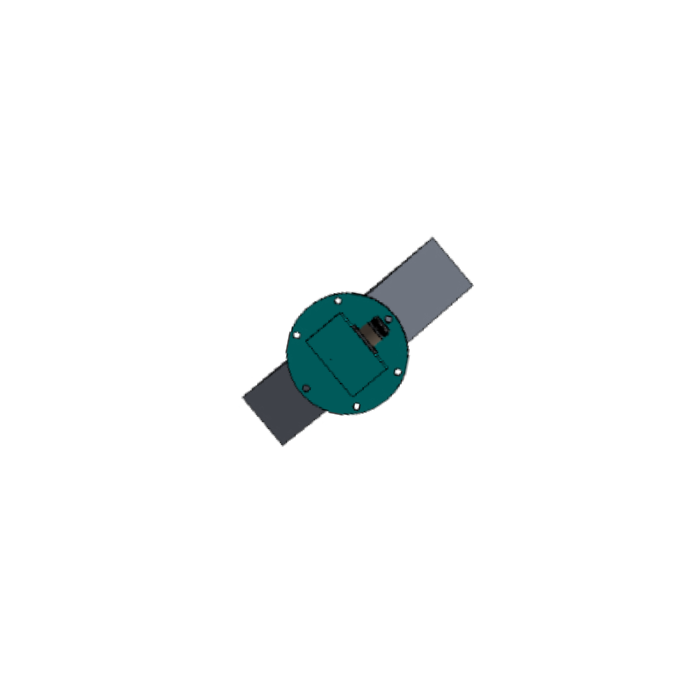

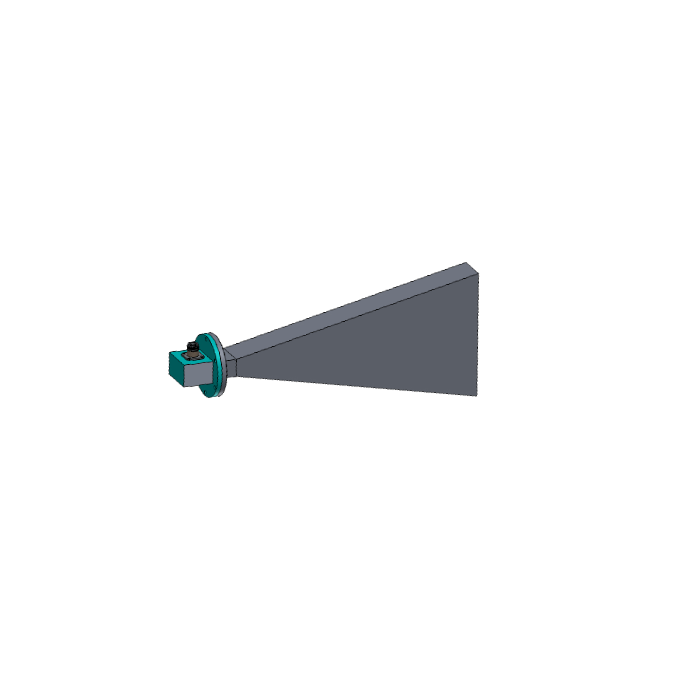

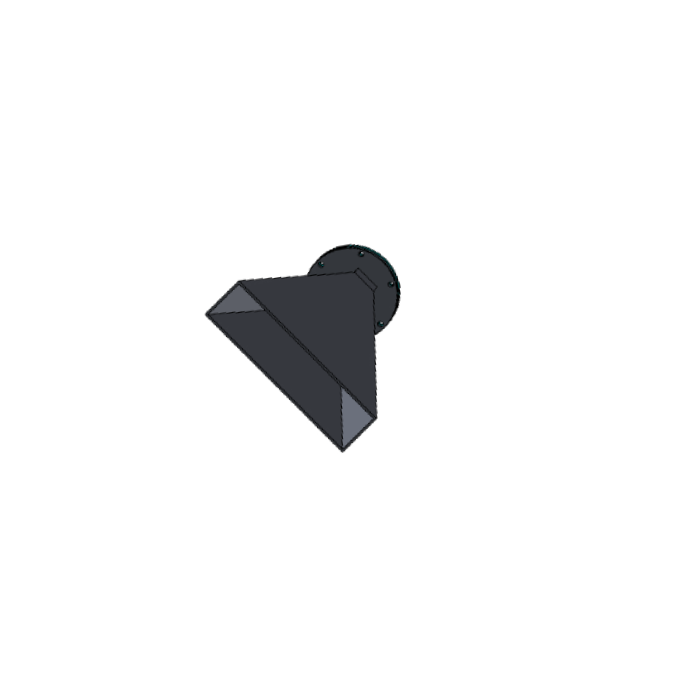

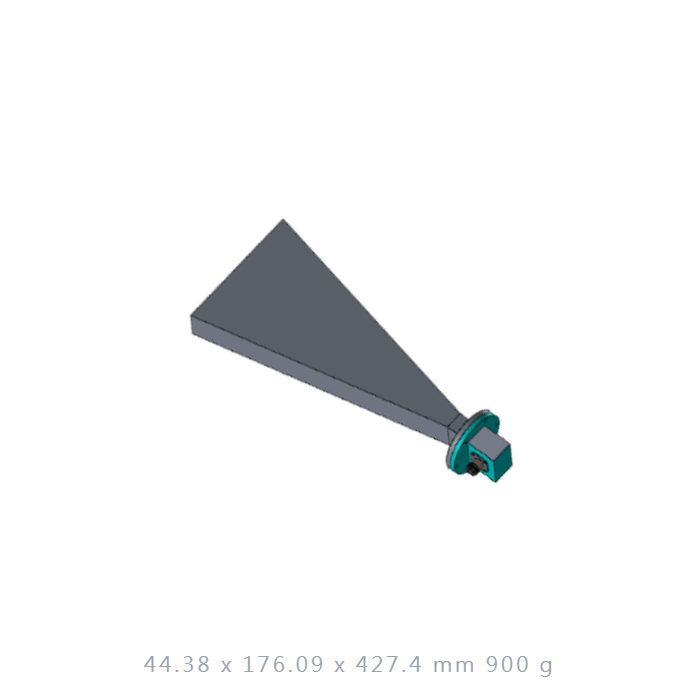

WR-159 E-Plane Sectoral Horn Antenna
Model: HS-159-UAR-15E-NF | 4.9 - 7.05 GHz | 15 dBi | CPR 159F/G Flange
The HS-159-UAR-15E-NF is a high-performance E-Plane Sectoral Horn Antenna designed for mission-critical RF applications requiring precision signal integrity from 4.9 GHz to 7.05 GHz. Engineered for Signal Defense systems and advanced communication dominance, this antenna flares in the E-plane to provide a wide sectoral beamwidth while maintaining a narrow H-plane focus. Precision-machined with a CPR 159F/G Flange and an integrated N-Female connector, it ensures superior mechanical survival and low loss in tactical and professional shielding environments.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-159 |
| Antenna Type | E-Plane Sectoral Horn |
| Frequency Range | 4.9 - 7.05 GHz |
| Standard Gain | 15 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| Impedance | 50 Ohm |
Mechanical & Physical Specs
| Waveguide Flange | CPR 159F / CPR 159G |
| Connector Type | N-Female |
| Body Material | Lightweight Aluminum |
| Design Compliance | International RF Standards |
Key Tactical Features
Sectoral Radiation Coverage
Flared E-plane design enables broad horizontal or vertical sector coverage (depending on mounting orientation), ideal for localized protection operations.
CPR Flange Precision
Includes a standard CPR 159 series interface for robust, low-leakage connection to waveguide distribution networks and communication sub-systems.
C-Band Signal Security
Optimized for 4.9-7.05 GHz precision, supporting advanced signal management and interference mitigation in professional communication networks.
Rugged Aluminum Build
Manufactured from high-durability aluminum to ensure long-term stability under mechanical and thermal stress in field-deployed mobile platforms.
Get a Quote / Custom Antenna Solutions
Contact us for custom H-plane sectoral flares, alternative connector types, or integrated mounting brackets for tactical dominance.
