WR159 (4.9 to 7.05GHz) 10dbi Standard Gain Waveguide Horn Antenna, H-plane sectoral, N-Female Connector, Flange:UAR
FT-RF Horn Antenna
10 out of
10
-
Description & Specification
4.9 GHz to 7.05 GHz WR-159 H-Plane Sectoral Horn Antenna
Model: HS-159-UAR-10H-NF | 10 dBi Gain | CPR 159F/G Flange

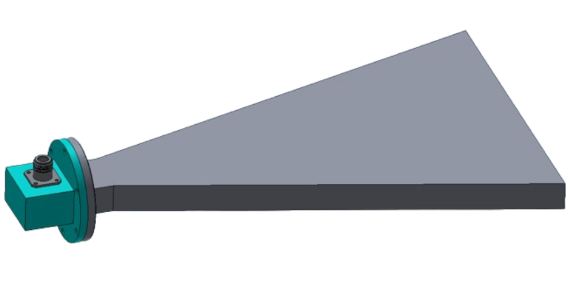

The HS-159-UAR-10H-NF is a high-performance H-Plane Sectoral Horn Antenna specifically engineered for mission-critical RF operations[cite: 307, 361]. Flaring in the H-plane to provide a 105° ultra-wide sectoral beamwidth, it is optimized for Signal Security operations[cite: 365]. Precision-machined from premium aluminum alloy with a CPR 159F/G flange and an N-Female stainless steel connector, it ensures the Signal Integrity required for professional Signal Defense environments[cite: 307, 368, 369].
Technical Specifications
Electrical & RF Performance
| Frequency Range | 4.9 GHz to 7.05 GHz [cite: 319, 361] |
| Waveguide Standard | WR-159 / WG13 / R58 [cite: 313, 315] |
| Nominal Gain | 10 dBi [cite: 362] |
| V.S.W.R (Max) | 1.25 : 1 [cite: 368] |
| -3dB Beamwidth (E-Plane) | 105° [cite: 365] |
| -3dB Beamwidth (H-Plane) | 15° [cite: 364] |
| Maximum Power Handling | 600 Watts (CW) [cite: 363] |
| Impedance | 50 Ohm |
Mechanical & Environmental

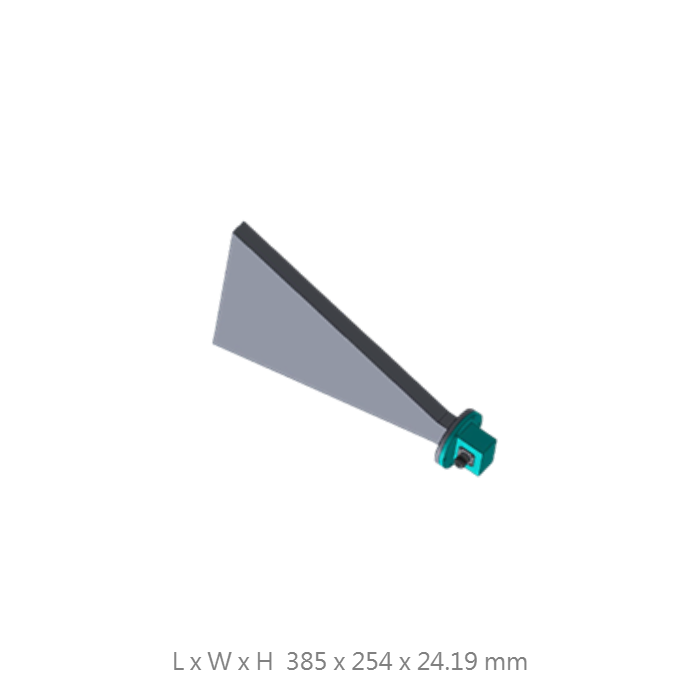

| Dimensions (L x W x H) | 385 x 254 x 24.19 mm [cite: 366, 370] |
| Net Weight | 800 g [cite: 367] |
| Waveguide Flange | CPR 159F / CPR 159G [cite: 307] |
| Body Material | High-Grade Aluminium Metal Alloy [cite: 369] |
| Connector Interface | N-Female [cite: 307] |
| Design & Origin | Taiwan Design / Made in Taiwan [cite: 310] |
Key Tactical & Lab Features
Sectoral H-Plane Coverage
Features a specialized flared profile to enable 105° horizontal monitoring, essential for localized Signal Security area surveillance[cite: 365].
Optimized Signal Integrity
Precision WR-159 geometry ensures minimal return loss and predictable radiation envelopes for mission-critical measurements[cite: 318, 368].
Professional Flange Precision
Equipped with standardized CPR 159F/G interfaces, ensuring high-stability connectivity for industrial microwave link infrastructures[cite: 307, 324].
Consolidated Performance Data
Supported by a comprehensive performance database for accurate system calibration and traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, alternative connector types, or customized sectoral flare configurations.
