Description & Specification

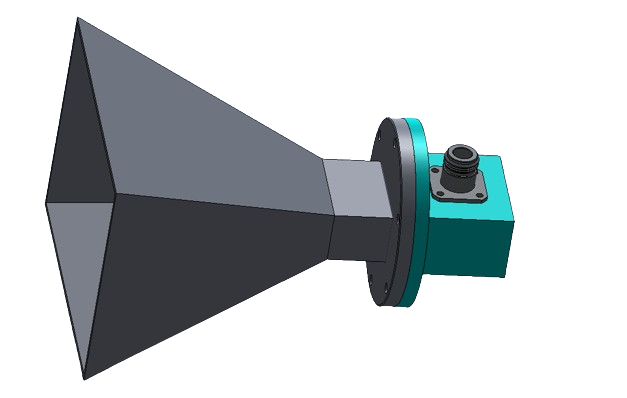

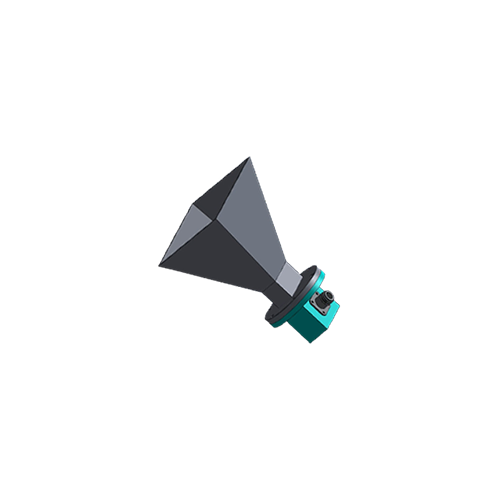

HS-159-UAR-15A-NF WR-159 Standard Gain Horn Antenna
4.9 - 7.05 GHz | 15 dBi | Professional C-Band Reference
The HS-159-UAR-15A-NF is a high-performance Waveguide Horn Antenna specifically engineered for precision measurements and high-power operations within the 4.9 GHz to 7.05 GHz C-band spectrum. Precision-manufactured from high-grade aluminum and featuring a standard CPR 159F/G Flange, it ensures low VSWR and consistent 15 dBi gain. Its robust 500W power handling and controlled beamwidth make it an essential radiator for EMI/EMC testing, antenna calibration, and professional Signal Security infrastructure.
Electrical & RF Performance
| Frequency Range | 4.9 - 7.05 GHz |
| Waveguide Standard | WR-159 |
| Standard Gain | 15 dBi |
| Max Power Handling | 500 Watts (CW) |
| 3dB Beamwidth (H/E) | 32° / 53° |
Mechanical & Physical

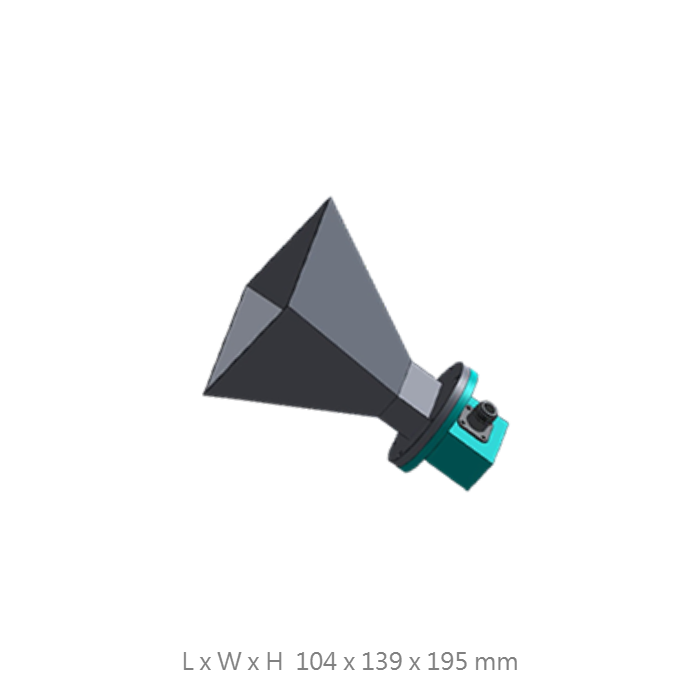

| Dimensions | 104 x 139 x 195 mm |
| Weight | 600 g |
| Flange Type | CPR 159F / CPR 159G |
| Connector | N-Female |
High-Power Signal Integrity
Engineered to withstand up to 500 Watts continuous power, ensuring unwavering stability and interference mitigation in demanding Signal Defense operations.
CPR Flange Precision
Equipped with a standard CPR 159 series flange, ensuring a secure, pressurized, and low-leakage connection for professional microwave link infrastructure.
C-Band Spectrum Dominance
Optimized for 4.9-7.05 GHz operation, providing a critical low-loss link for tactical signal management and professional shielding systems.
Rugged Aluminum Build
Manufactured from high-durability aluminum to ensure long-term mechanical survival and stable radiation patterns in diverse field environments.
Contact FT-RF Engineering Division
Contact our engineering team for custom gain configurations, specialized mounting adapters, or alternative waveguide flange patterns.
