| Frequency Range Class | 300 MHz - 10 GHz (Ultra-Broadband Continuous Spectral Optimization) |

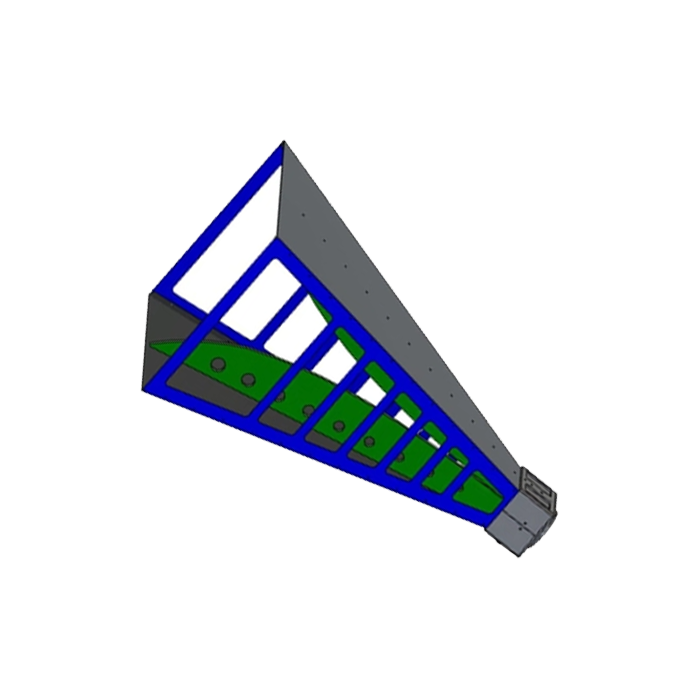

| Antenna Radiation Style | Double-Ridged Horn Antenna Geometry |
| Nominal Gain Curve | 7 dBi - 20 dBi (Sustained High-Gain Resolution) |
| Antenna Factor Range | 12 - 37 dB/m |
| V.S.W.R Profile (Average) | < 2.0 : 1 (Precision Broadband Impedance Matching) |
| Maximum Continuous Power Handling | 500 Watts (CW Continuous Wave Capacity) |
| Maximum Peak Power Handling | 800 Watts (Transient Load Peak Limit) |
| -3dB Beamwidth (Horz / Vert) | 21° / 22° |
| Nominal System Impedance | 50 Ohm |

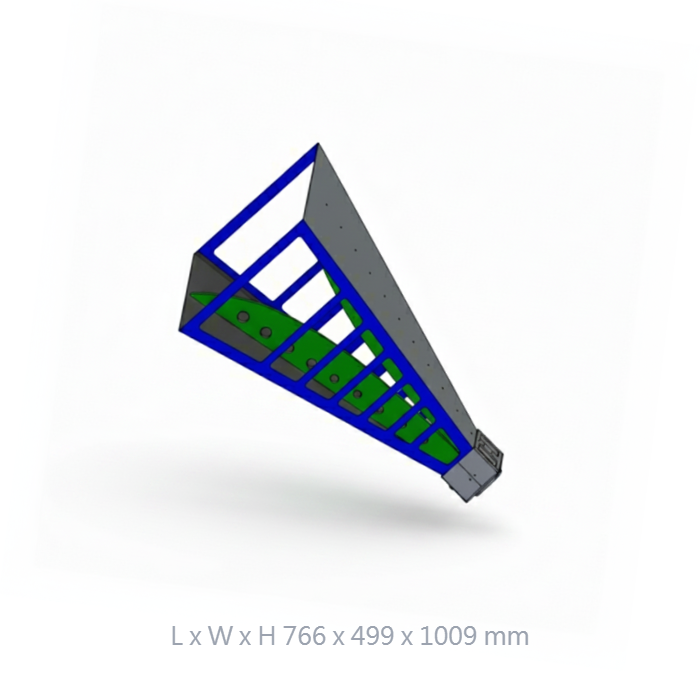

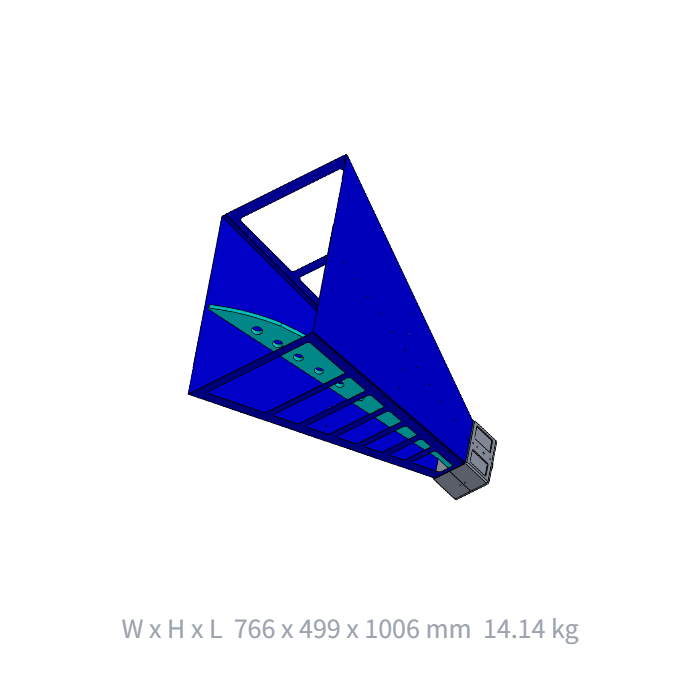

| Physical Dimensions (L x W x H) | 766 x 499 x 1009 mm |
| Antenna Net Weight Profile | 14.86 kg (Industrial Grade Robust Configuration) |
| Structural Body Composition | Aerospace 6061 Aluminum Alloy Frame Structure |
| Coaxial Connector Type | Precision Stainless Steel N-Female Interface Port |
| Mounting Adaptability Options | L Mount (M8/M6/1.4in holes) and specialized Indexing Ring Mount |
Ideally suited for emission and susceptibility immunity testing, providing exceptionally reliable performance for Signal Integrity acquisition across a massive operational bandwidth.
Supports a peak power input of 800W and a continuous wave thermal load of 500W, making it perfect for high-intensity field strength generation and rigorous directional radar measurements.
Equipped with a built-in DC short structural protection circuit to safeguard expensive laboratory measurement instrumentation from transient surges and static accumulation.
Fully supported by a comprehensive traceable calibration performance database and a consistent uniform gain profile, ensuring repeatable and reproducible compliance results.
Contact our technical engineering division today to request official quote sheets, individual certified calibration data, CE/FCC compliance documentation, or alternative custom mounting interface configurations.
