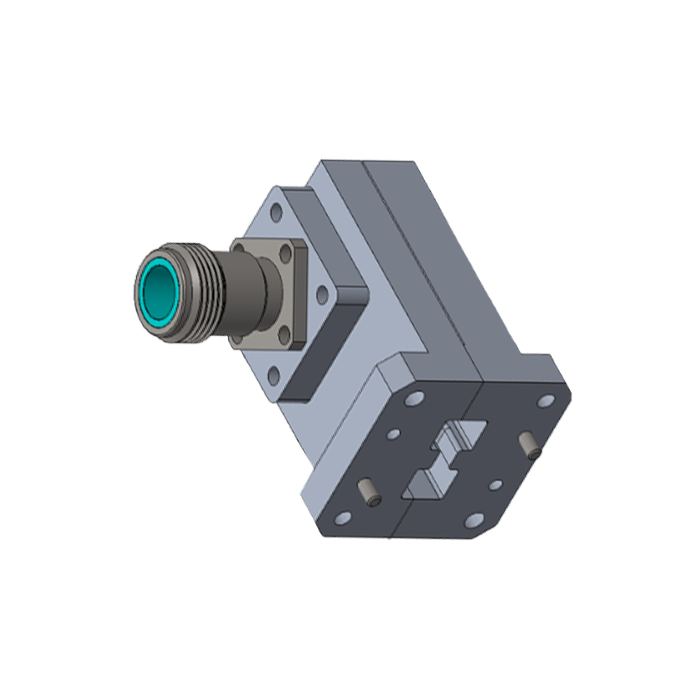

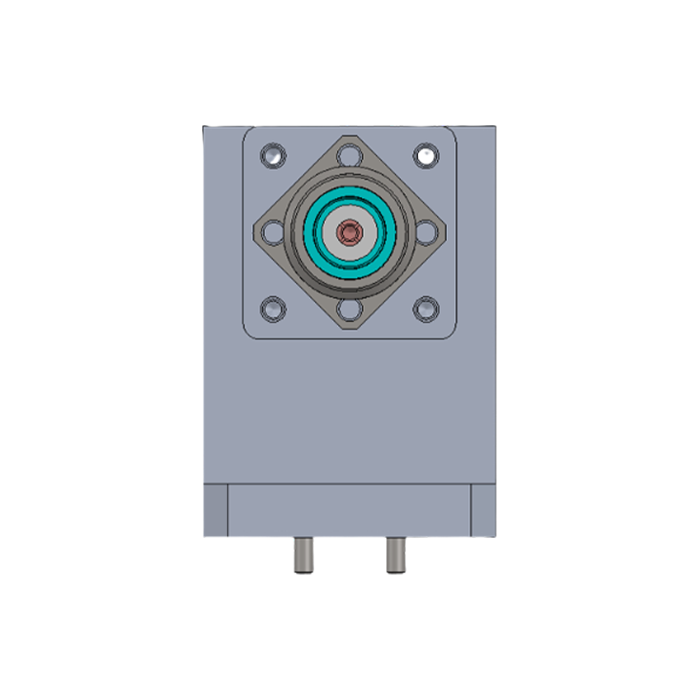

WRD750 Double Ridge Waveguide to Coaxial Adapter
Precision Wideband Transition | Standard UAR Flange Layout | 7.5 GHz – 18.0 GHz
The WC-750D-UAR-NF is a high-performance microwave Double Ridge Waveguide to Coaxial Adapter professionally engineered for strict compliance with the multi-octave WRD750 architectural layout. Operating continuously across an extended 7.5 GHz to 18.0 GHz frequency spectrum, this premium transition component overcomes the bandwidth limitations of standard rectangular waveguide formats, enabling high-efficiency mode conversion and maximum energy transfer with minimum insertion loss. Manufactured from high-grade aluminum alloy in Taiwan, this compact micro-format adapter features a standardized rectangular UAR Style flange interface mated to a precision coaxial N-Female connector port, ensuring stable electrical contact in high-vibration systems. This advanced configuration makes it the definitive choice for wideband satellite communications, multi-band electronic intelligence surveillance, airborne tracking sub-systems, and broadband laboratory measurement arrays where uncompromising Signal Integrity is mandatory.
Electrical & RF Interconnect
| Waveguide Geometry Standard | WRD750 (Double Ridge Layout) |
| Frequency Range | 7.5 GHz - 18.0 GHz (Multi-Octave Continuous) |
| Nominal Impedance | 50 Ohms |
| Coaxial Interconnect Interface | N-Female Port Layout |
| Standard Compliance | Tactical Grade Precision RF Interconnect Standard |
Mechanical & Material Specs

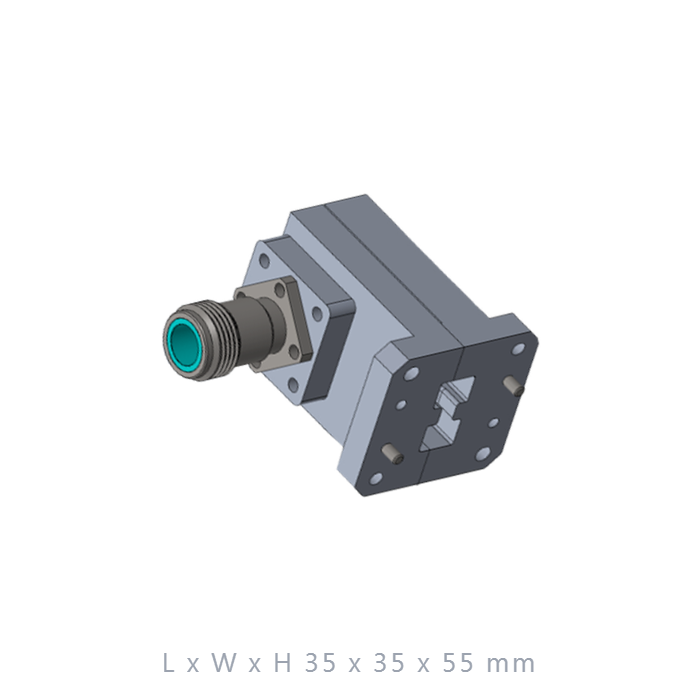

| Physical Dimensions (L x W x H) | 35 x 35 x 55 mm |
| Waveguide Flange Designation | UDR / UAR Flange Layout Compatibility |
| Structural Body Material | High-Grade Structural Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Broadband Performance
The specialized WRD750 ridge architecture provides a significantly wider operating frequency spectrum compared to traditional rectangular formats, making it ideal for multi-band tactical arrays.
Compact & Lightweight
With a ultra-compact footprint of only 35x35mm, this low-mass adapter facilitates high-density electromechanical integration in airborne systems and localized tracking assemblies.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigid quality assurance guidelines, guaranteeing outstanding mechanical flat tolerances, stable internal launcher boundaries, and calibration constancy.
Superior Signal Integrity
Precision-machined internal waveguide cavity dimensions eliminate path anomalies, ensuring exceptionally low return loss, predictable mapping flatness, and stable VSWR properties.
Rugged Aluminum Build
Constructed from premium structural aluminum alloy to provide a perfect balance between mechanical layout rigidity and lightweight durability under severe field testing conditions.
Get a Quote / Custom RF Adapters
Contact our technical engineering team today to request certified alternative flange hole drilling layouts, individual certified V.S.W.R plots, alternative connector ports (SMA/TNC), or integrated broadband waveguide assembly requirements.
