Description & Specification
WF-PDR Waveguide Gasket Series
Professional Rectangular PDR Flange Sealing Solutions
The WF-PDR Series is specifically designed for high-frequency waveguide flange assembly. These gaskets provide a reliable RF seal and pressure containment, essential for high-power microwave transmissions. Optimized for precision fit across standard waveguide sizes, they minimize passive intermodulation (PIM) and maximize Signal Integrity in satellite, radar, and broadcasting infrastructure.
Full Dimension Series
(LxWxH mm)
(LxWxH mm)
| Model No. | Dimensions (mm) | Model No. | Dimensions (mm) |
|---|---|---|---|

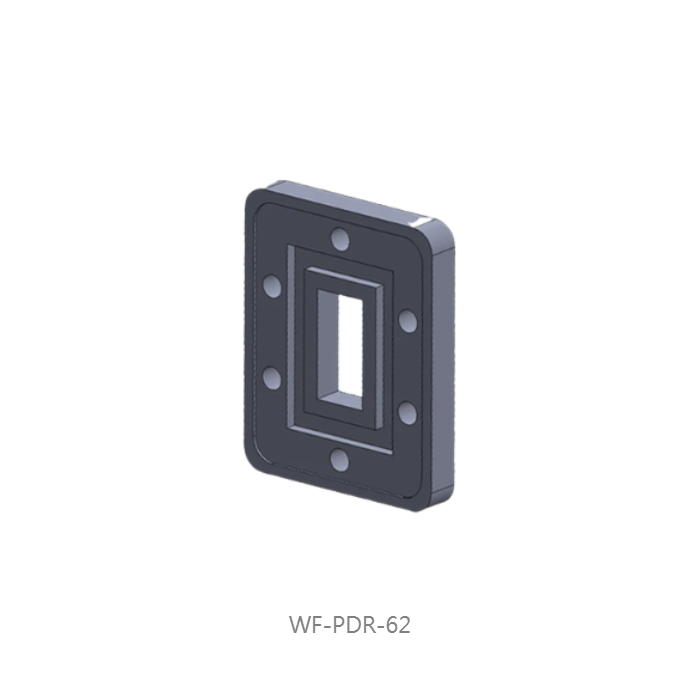

| WF-PDR-51 | 42 x 35.5 x 6 | WF-PDR-62 | 44.5 x 36.5 x 6 |

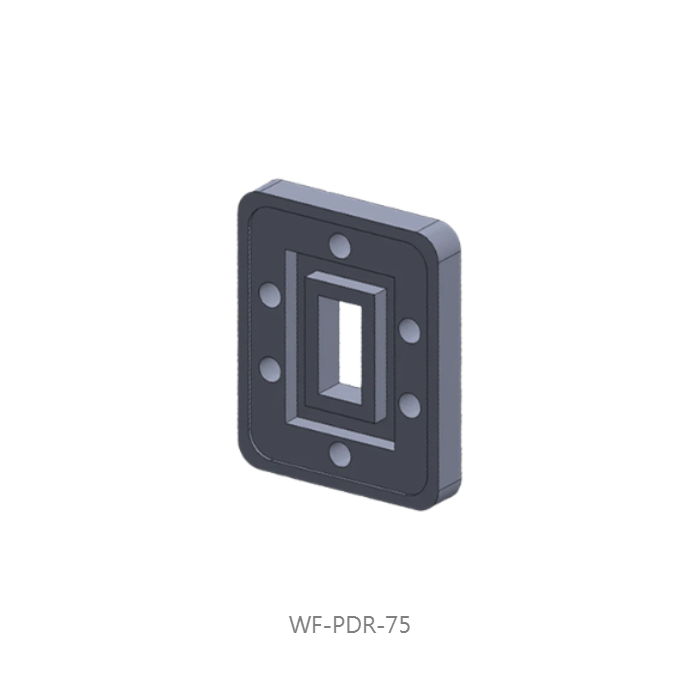

| WF-PDR-75 | 49 x 39.5 x 6 | WF-PDR-90 | 53.2 x 40.5 x 6 |

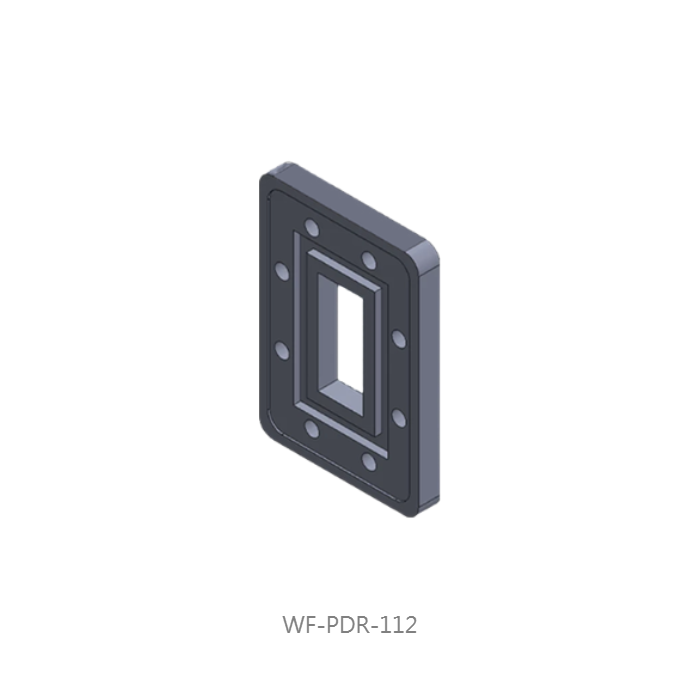

| WF-PDR-112 | 63.5 x 44.5 x 6 | WF-PDR-137 | 68.3 x 49.2 x 7 |

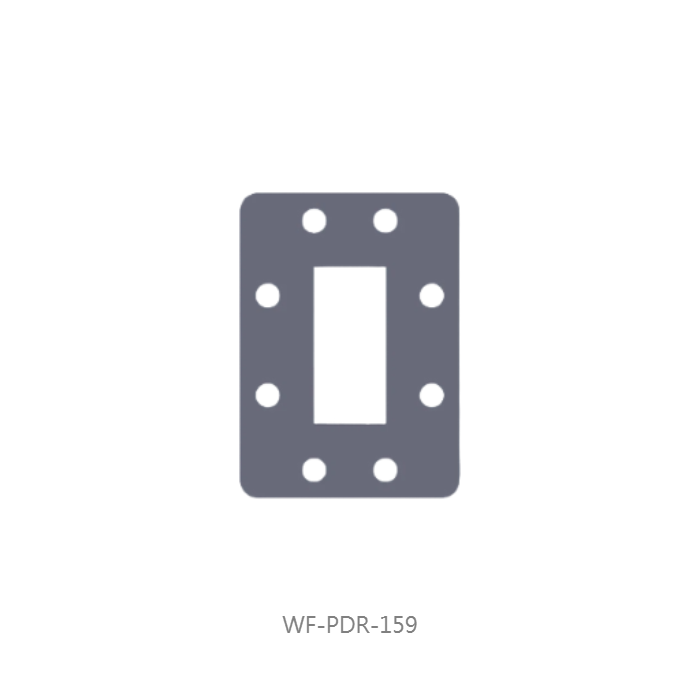

| WF-PDR-159 | 81 x 61.9 x 7 | WF-PDR-187 | 88.9 x 63.5 x 7 |

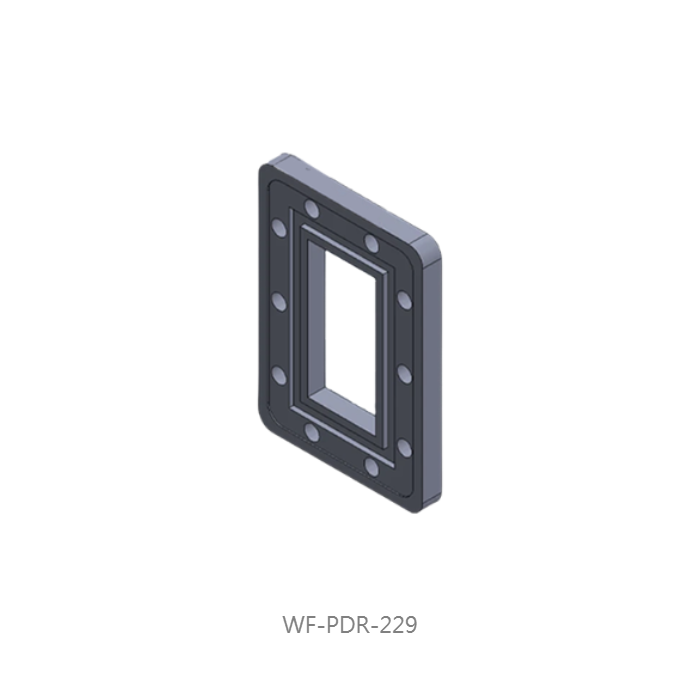

| WF-PDR-229 | 98.4 x 69.9 x 8 | WF-PDR-284 | 114.3 x 76.2 x 8 |

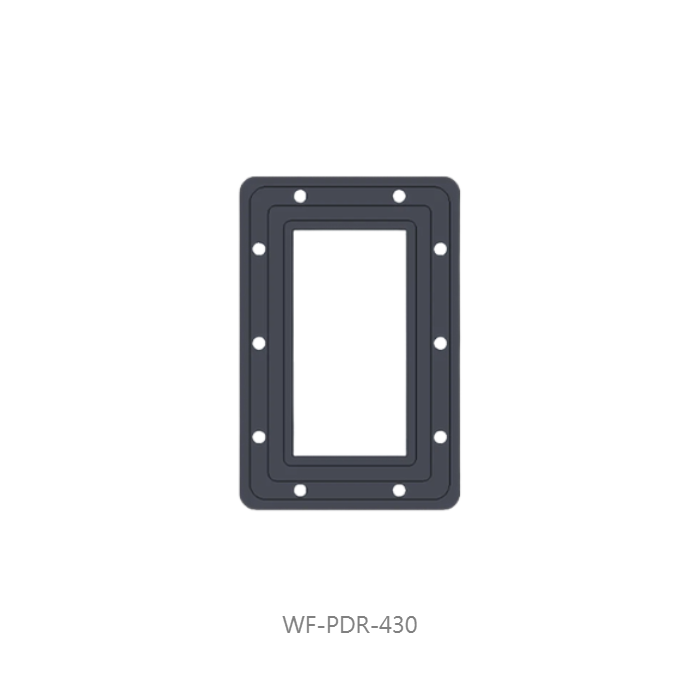

| WF-PDR-340 | 138.9 x 5.3 x 10 | WF-PDR-430 | 161.1 x 106.4 x 10 |

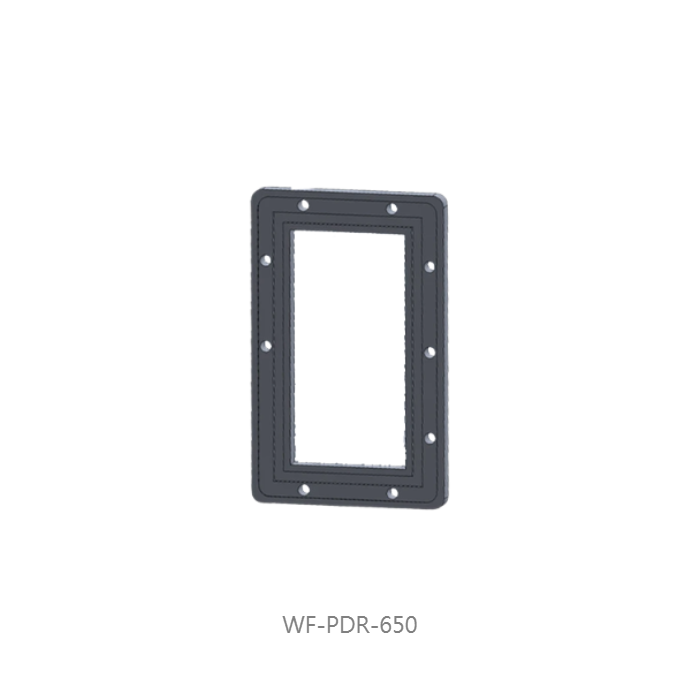

| WF-PDR-510 | 185 x 120 x 12 | WF-PDR-650 | 220.7 x 138.1 x 12 |
Key Tactical Features
Superior EMI Shielding
Ensures a continuous conductive path across flange interfaces, preventing RF leakage and protecting sensitive electronics from interference during Protection Operations.
High Pressure Sealing
Engineered to maintain internal waveguide pressure, crucial for preventing moisture ingress in outdoor satellite deployments and tactical signal management.
Precision PDR Interface
Specifically designed for PDR type flanges, providing an exact mechanical fit that eliminates gaps and significantly reduces signal reflection.
Material Durability
Constructed from high-grade conductive elastomers to withstand thermal expansion and repeated maintenance cycles in mission-critical environments.
Inquire About WF-PDR Series
Contact our engineering team for customized thickness, specialized material data sheets, or alternative flange standard compatibility (UDR/UER).
