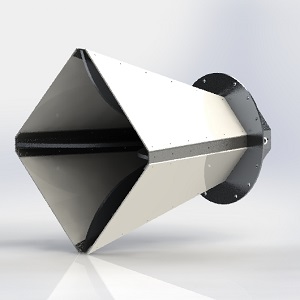

Quad-Ridged Broadband Horn Antenna, operating from 300MHz to 6GHz, SMA- Female Connector

Quad-Ridged Broadband Horn Antenna, operating from 300MHz to 6GHz, SMA- Female Connector

Model No: HQ-03M06G01-SF

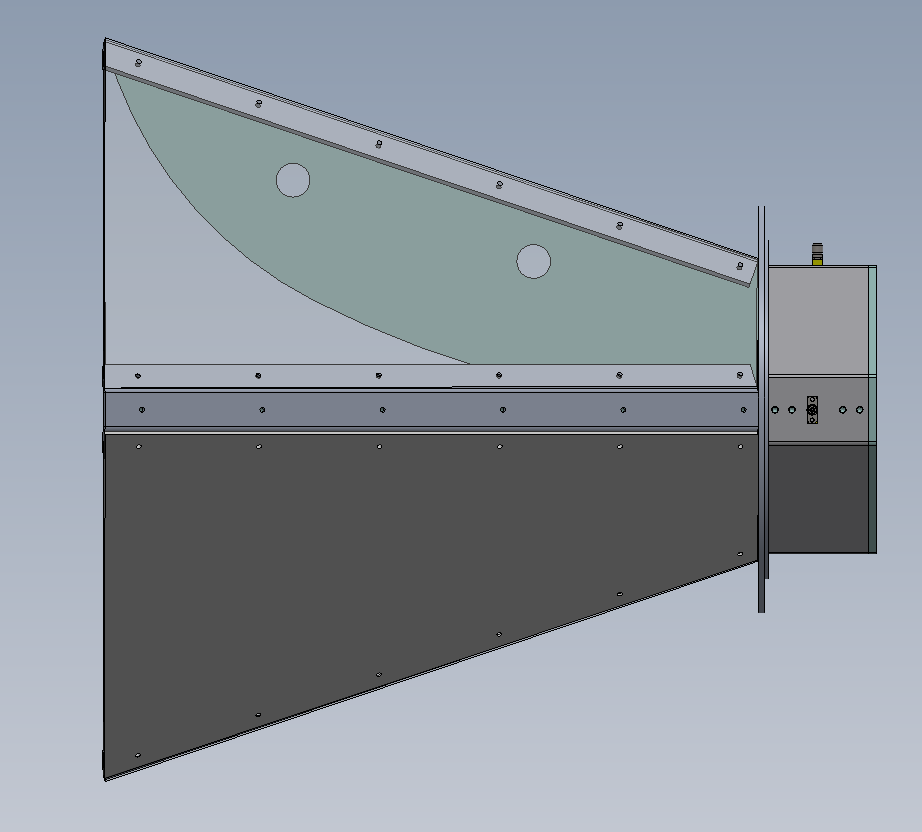

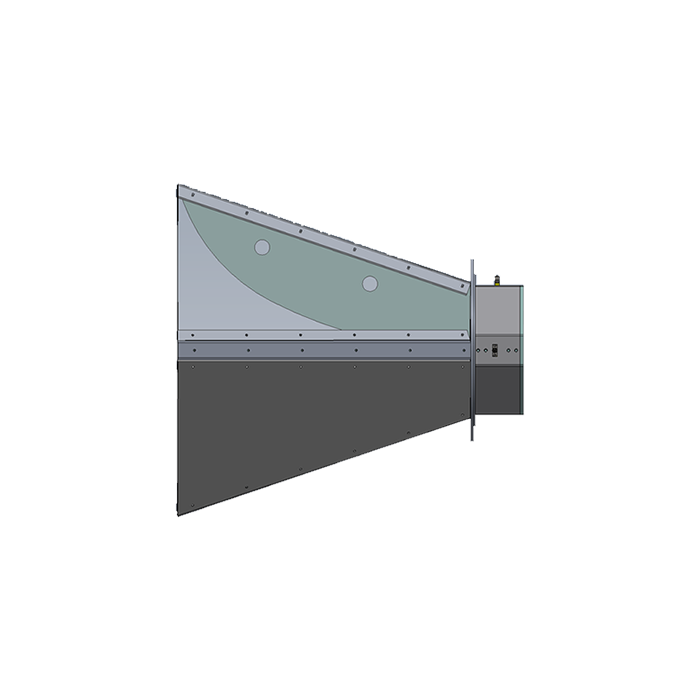

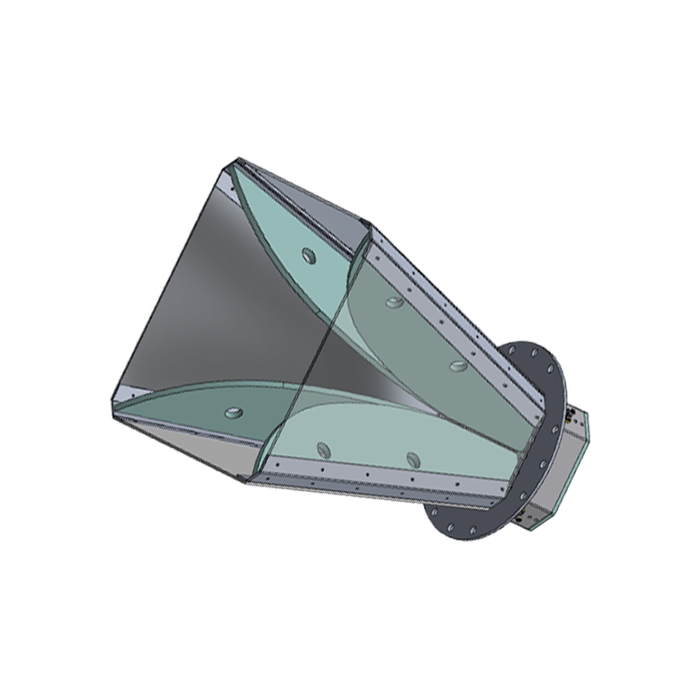

Mechanical Drawing: Download

  • Frequency: 300MHz-6GHz
  • Gain: 3dbi to 14 dBi

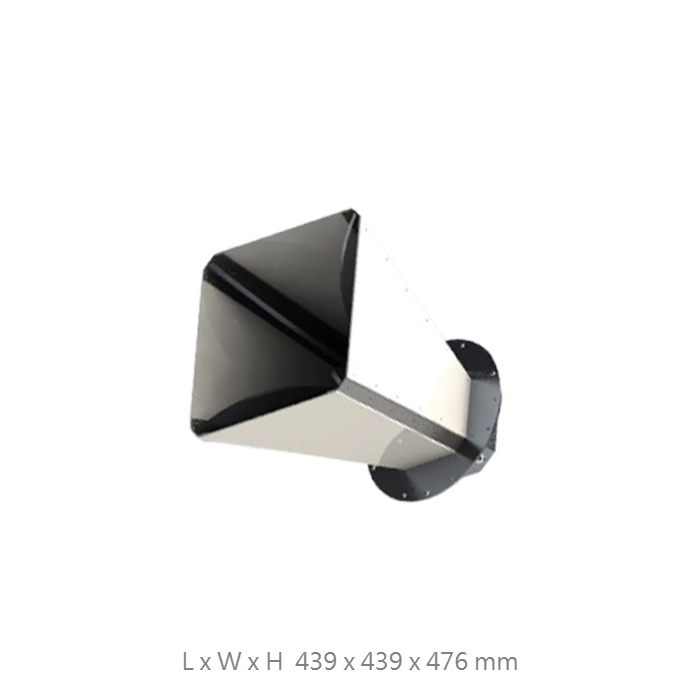

  • LxWxH: 439x439x476mm
  • N.W.: 8.4 KG
Quantity:
INQUIRY

  • Description & Specification

Applications:

  •  300MHz to 6GHz Quad-Ridged Horn Antenna SMA-Female
  •  6061 Aluminum metal alloy
  •  Antenna Measurement
  • Electromagnetic Measurement
  • Electromagnetic Compatibility Testing (EMC test)
  • Ultra-wideband Radar Detection

Features:

  •  DC Short lightning protection
  •  Low VSWR
  •  Uniform Gain
  •  Consolidated performance database

Mechanical Specifications

Model : HQ-03M06G01-NF
LxWxH : 439x439x476mm
Connector : SMA-Femalex2
Styling : Dual Polarization Horn
Gain : 3dbi-14dBi
-3db Beam-width : 17 deg- 65 deg
N.W. : 8.4 KG
Frequency : 300MHz to 6GHz
Polarization : Vertical and Horizontal or ± 45deg
Max Power(C.W) : 50W
