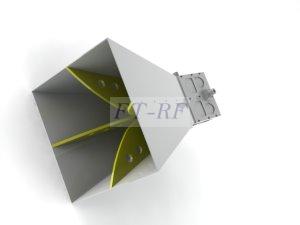

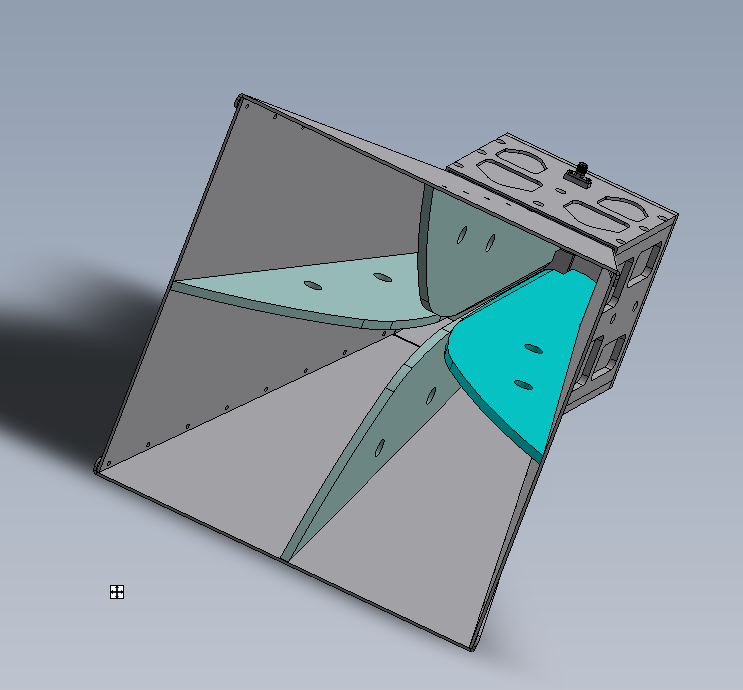

HQ-07M10G-SF Quad-Ridged Horn Antenna
Dual Polarization Broadband Antenna | 700MHz to 10GHz Coverage
The HQ-07M10G-SF is a professional-grade Quad-Ridged Dual Polarization Horn Antenna designed for a wide array of electromagnetic applications. Crafted from premium 6061 Aluminum alloy, it features two SMA-Female connectors to support simultaneous vertical and horizontal (or ±45°) polarization measurements. This antenna is a vital component for Antenna Measurement, EMC testing, and Ultra-wideband Radar Detection, offering uniform gain and exceptionally low VSWR across the 700MHz to 10GHz spectrum.
Technical Specifications
Electrical Specifications
| Frequency Range | 700 MHz - 10 GHz |
| Antenna Type | Dual Polarization Quad-Ridged Horn |
| Gain | 3 dBi - 15 dBi |
| -3dB Beam-width | 17° - 65° |
| Polarization | Vertical & Horizontal / ± 45° |
| V.S.W.R | Low VSWR (Optimized) |
| Impedance | 50 Ohm |
| Connector | SMA-Female * 2 |

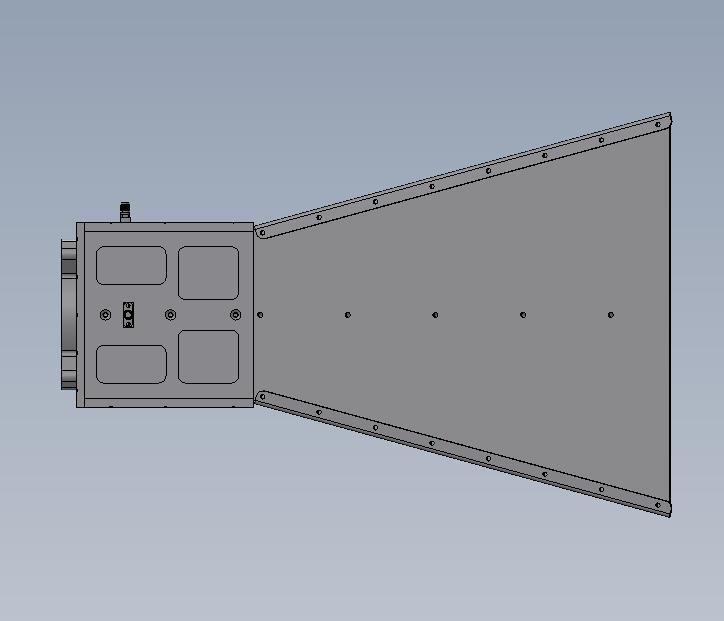

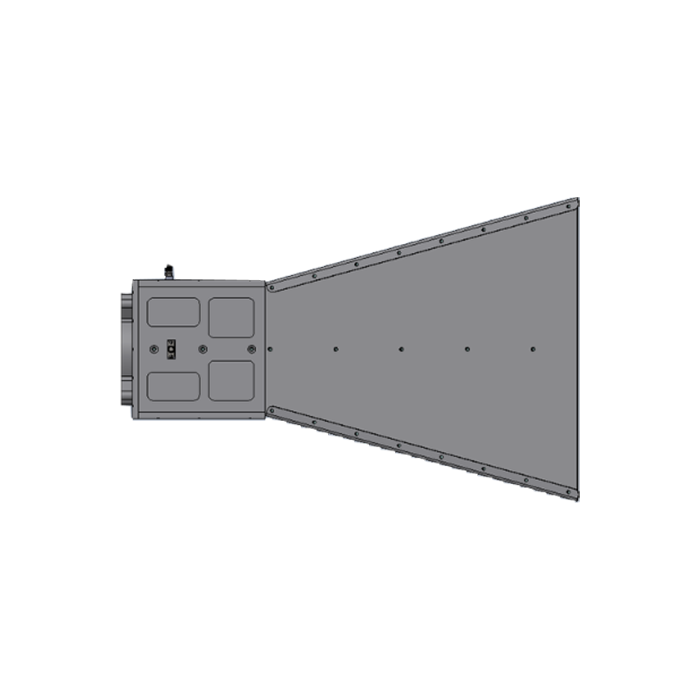

Mechanical & Environmental Specifications
| Dimensions (L x W x H) | 269 x 267 x 402 mm |
| Net Weight (N.W.) | 4.017 kg |
| Material | 6061 Aluminum Alloy |
| Design & Manufacturing | Taiwan Design, Made in Taiwan |
| Compliance | RoHS Compliant |
Key Features
Dual Polarization Capability
Dual port design allows for simultaneous capture of orthogonal polarizations, critical for radar and complex signal analysis.
Dual port design allows for simultaneous capture of orthogonal polarizations, critical for radar and complex signal analysis.
Ultra-Wideband Detection
Seamless performance from 700MHz to 10GHz, ideal for sweeping broad frequency ranges in EMC testing.
Seamless performance from 700MHz to 10GHz, ideal for sweeping broad frequency ranges in EMC testing.
Integrated DC Short Protection
Built-in lightning protection safeguards expensive receivers and measurement systems from electrical transients.
Built-in lightning protection safeguards expensive receivers and measurement systems from electrical transients.

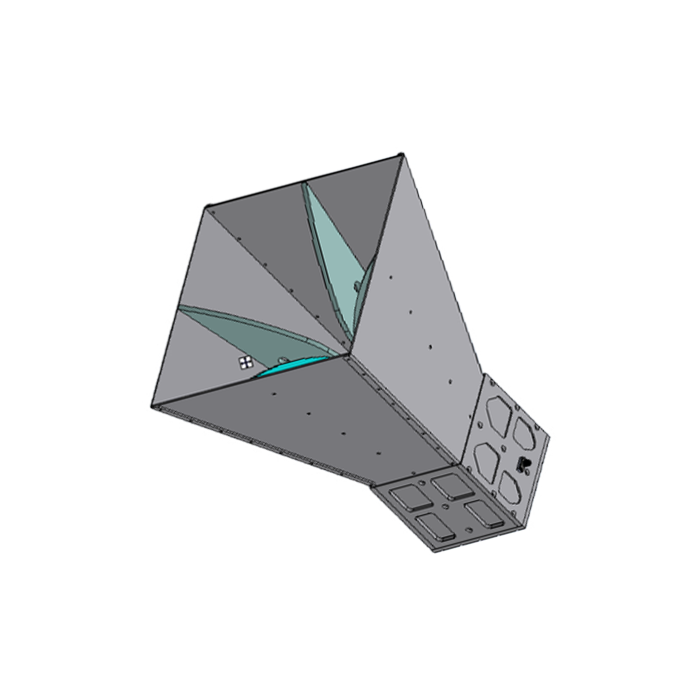

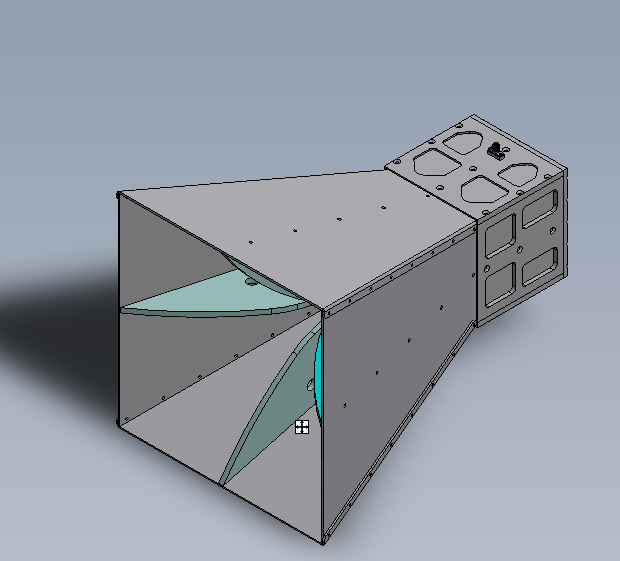

Superior Phase Center Stability
Optimized quad-ridged geometry ensures uniform gain and stable radiation patterns for repeatable results.
Optimized quad-ridged geometry ensures uniform gain and stable radiation patterns for repeatable results.
Premium Materials
Crafted with high-grade 6061 Aluminum and stainless steel connectors for mechanical durability and RF integrity.
Crafted with high-grade 6061 Aluminum and stainless steel connectors for mechanical durability and RF integrity.
Consolidated Database
Performance is backed by a comprehensive database, ensuring reliable calibration and data accuracy.
Performance is backed by a comprehensive database, ensuring reliable calibration and data accuracy.
Contact Us
For quotes, isolation data, or technical support regarding the HQ-07M10G-SF, please contact us:
