HQ-0218G01-SF Quad-Ridged Horn Antenna
Dual Polarization Broadband Antenna | 2GHz to 18GHz Coverage

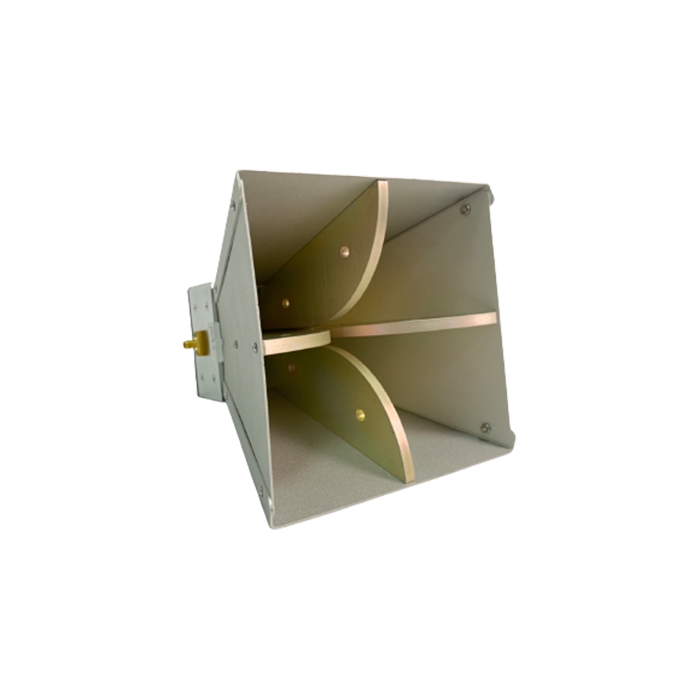

The HQ-0218G01-SF is a high-precision Quad-Ridged Dual Polarization Horn Antenna designed for comprehensive microwave spectrum analysis. Manufactured from premium 6061 Aluminum alloy, it features two SMA-Female connectors to support simultaneous vertical and horizontal (or ±45°) polarization. Covering a wide frequency range from 2GHz to 18GHz, this lightweight (1.06 kg) antenna provides uniform gain and low VSWR, making it an essential tool for EMI/EMC testing, antenna measurements, and advanced radar detection.
Technical Specifications
Electrical Specifications
[Image of quad-ridged horn antenna dual-polarization radiation pattern 2-18GHz]| Frequency Range | 2 GHz - 18 GHz |
| Antenna Type | Dual Polarization Quad-Ridged Horn |
| Gain | 3 dBi - 18 dBi |
| V.S.W.R | Low VSWR (Optimized) |
| Polarization | Vertical & Horizontal / ± 45° |
| Maximum Power | 70W (Peak) |
| Vertical Beam-width (-3dB) | 37° |
| Horizontal Beam-width (-3dB) | 33° |
| Impedance | 50 Ohm |
| Connector | SMA-Female x 2 |
Mechanical & Environmental Specifications

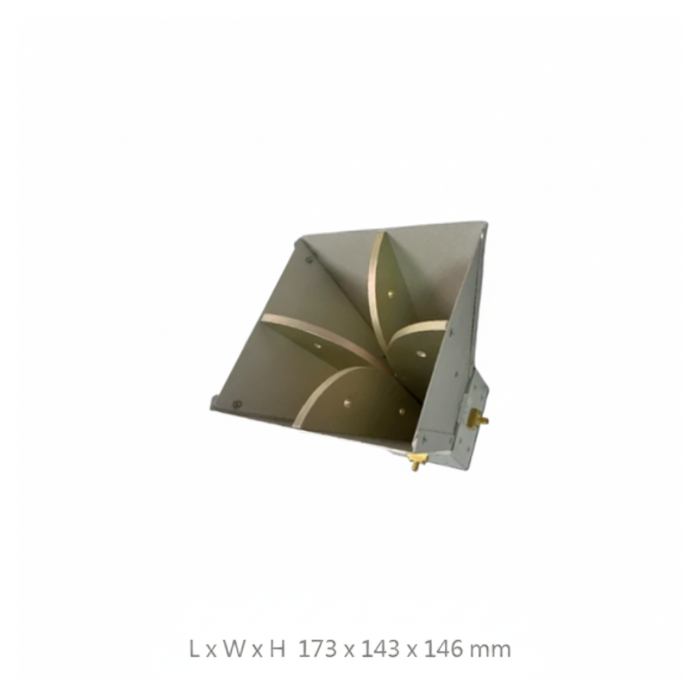

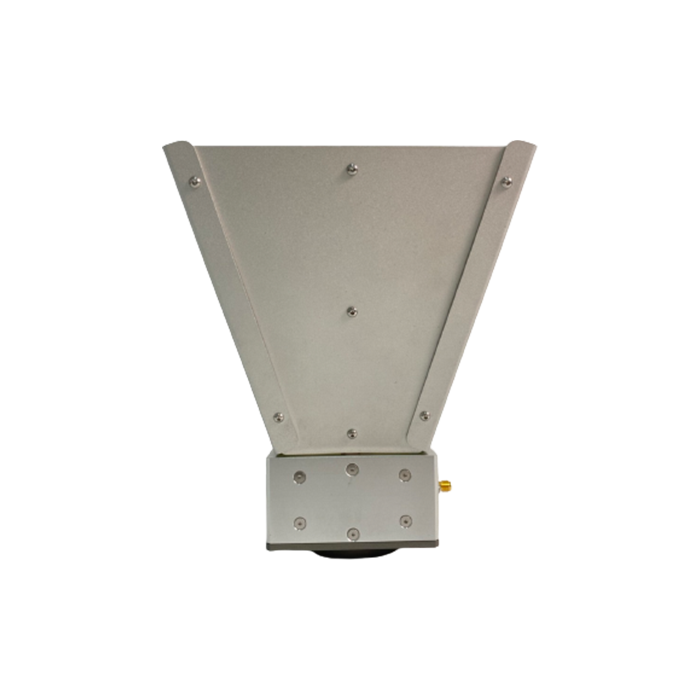

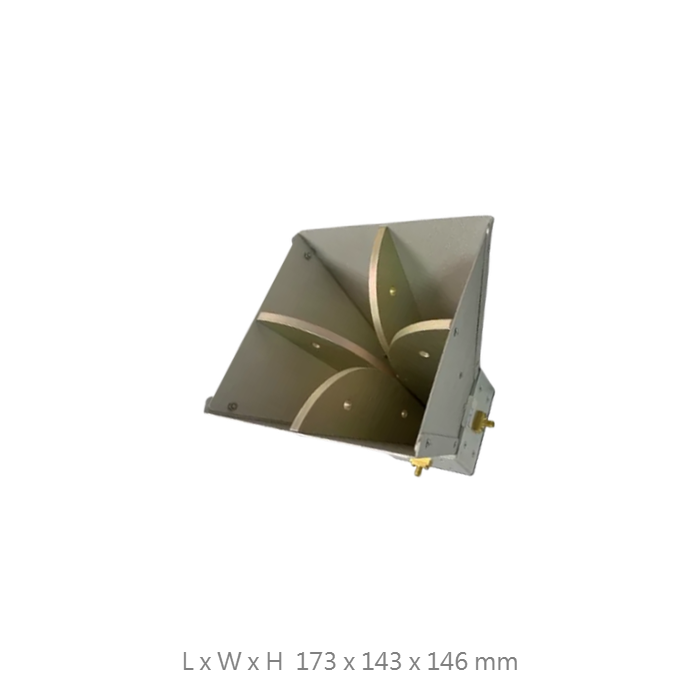

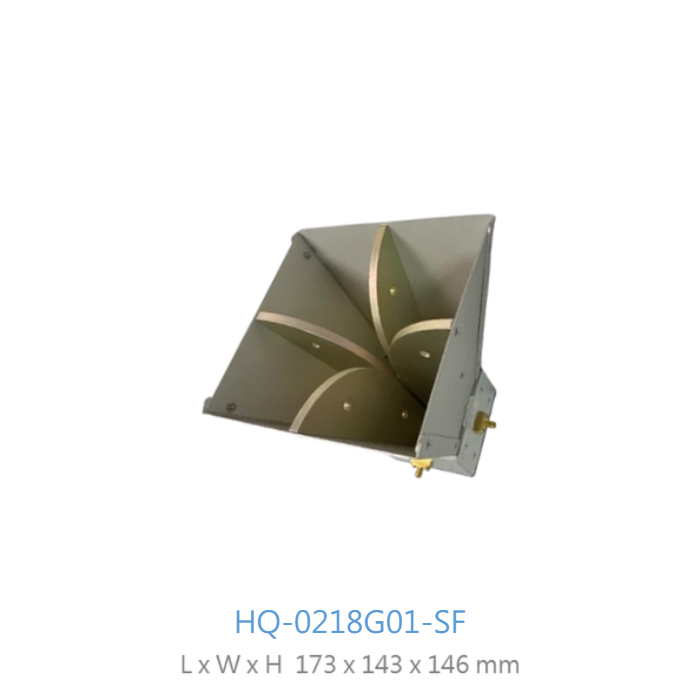

[Image of HQ-0218G01-SF quad-ridged horn antenna mechanical dimensions diagram]| Dimensions (L x W x H) | 173 x 143 x 146 mm |
| Net Weight (N.W.) | 1.06 kg |
| Material | 6061 Aluminum Alloy |
| Design & Manufacturing | Taiwan Design, Made in Taiwan |
| Compliance | RoHS Compliant |
Key Features
Dual Polarization Support
Integrated dual SMA-port feed allows for simultaneous capture of orthogonal polarizations with high isolation.
Integrated dual SMA-port feed allows for simultaneous capture of orthogonal polarizations with high isolation.
Broadband Microwave Coverage
Continuously spans 2GHz to 18GHz, covering S, C, X, and Ku frequency bands in a single unit.
Continuously spans 2GHz to 18GHz, covering S, C, X, and Ku frequency bands in a single unit.
DC Short Lightning Protection
Integrated lightning protection design safeguards connected measurement hardware from transient surges.
Integrated lightning protection design safeguards connected measurement hardware from transient surges.
Superior Beam Consistency
Optimized quad-ridged geometry ensures stable radiation patterns and uniform gain for repeatable results.
Optimized quad-ridged geometry ensures stable radiation patterns and uniform gain for repeatable results.
Compact & Lightweight
Weighing only 1.06 kg, it is ideal for precision mounting in restricted spaces or portable test setups.
Weighing only 1.06 kg, it is ideal for precision mounting in restricted spaces or portable test setups.
Consolidated Database
Performance is backed by a comprehensive database, ensuring reliable calibration and long-term data accuracy.
Performance is backed by a comprehensive database, ensuring reliable calibration and long-term data accuracy.
Contact Us
For pricing, isolation data, or technical support regarding the HQ-0218G01-SF, please contact us:
