Description & Specification

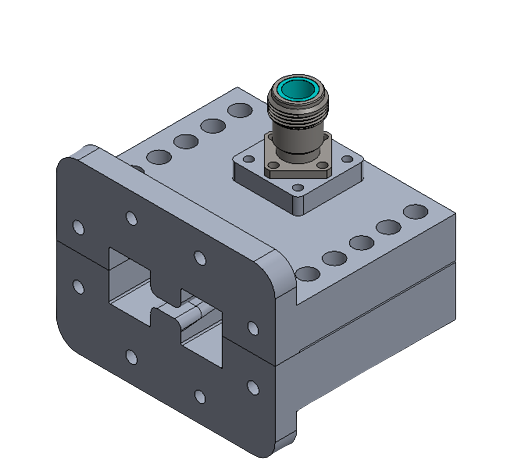

WRD250 Double Ridge Waveguide to Coaxial Adapter
Precision Wideband Transition | Standard Cover Flange Layout | 2.6 GHz – 7.8 GHz
The WC-WRD250-CF-NF is a high-performance microwave Double Ridge Waveguide to Coaxial Adapter professionally engineered for strict compliance with the multi-octave WRD250 architectural layout. Operating continuously across an extended 2.6 GHz to 7.8 GHz frequency spectrum, this premium transition component overcomes the bandwidth limitations of standard rectangular waveguide formats, enabling high-efficiency mode conversion and maximum energy transfer with minimum insertion loss. Manufactured from high-grade aluminum alloy in Taiwan, this robust 81mm adapter features a standardized rectangular Cover Flange (CF) interface mated to a precision coaxial N-Female connector port, ensuring stable electrical contact in high-vibration systems. This advanced configuration makes it the definitive choice for wideband electronic intelligence surveillance, multi-band radar sub-systems, high-intensity tactical communications, and broadband laboratory measurement arrays where uncompromising Signal Integrity is mandatory.
Electrical & RF Performance
| Waveguide Geometry Standard | WRD250 (Double Ridge Layout) |
| Frequency Range | 2.6 GHz - 7.8 GHz (Multi-Octave Continuous) |
| Nominal Impedance | 50 Ohms |
| Coaxial Interconnect Interface | N-Female Port Layout |
| Standard Compliance | Tactical Grade Precision RF Interconnect Standard |
Mechanical & Physical Specifications

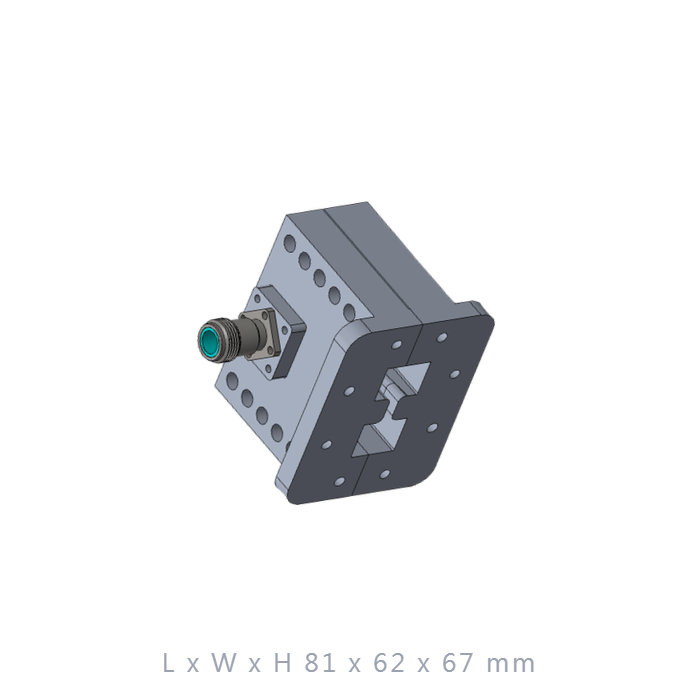

| Physical Dimensions (L x W x H) | 81 x 62 x 67 mm |
| Waveguide Flange Designation | Standard Cover Flange (CF Layout) |
| Structural Body Material | High-Grade Structural Aluminum Alloy |
| Surface Architectural Finish | Professional High-Durability Anti-Corrosion Shield Coating |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Broadband Double Ridge Design
The specialized WRD250 ridge architecture provides a significantly wider operating frequency spectrum compared to traditional rectangular formats, making it ideal for multi-band tactical arrays.
Superior Signal Defense
Precision internal launch vectors eliminate cavity reflections, ensuring unwavering transmission coupling mapping, lower return loss, and dependable isolation in severe wideband surveillance deployments.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigid quality assurance guidelines, guaranteeing outstanding mechanical flat tolerances, stable internal launcher boundaries, and calibration constancy.
Professional N-Type Interface
Equipped with a high-durability, precision-aligned coaxial N-Female connector port, ensuring reliable electromechanical contact stability and excellent wear resistance for mobile measurement platforms.
Tactical Mechanical Survival
Constructed from premium structural aluminum alloy to provide a perfect balance between mechanical layout rigidity and lightweight durability, allowing secure mounting on laboratory masts or tracking positioners.
Get a Quote / Custom RF Solutions
Contact our technical engineering team today to request certified alternative flange hole drilling layouts, individual certified V.S.W.R plots, alternative connector ports (SMA/TNC), or integrated broadband waveguide assembly requirements.
