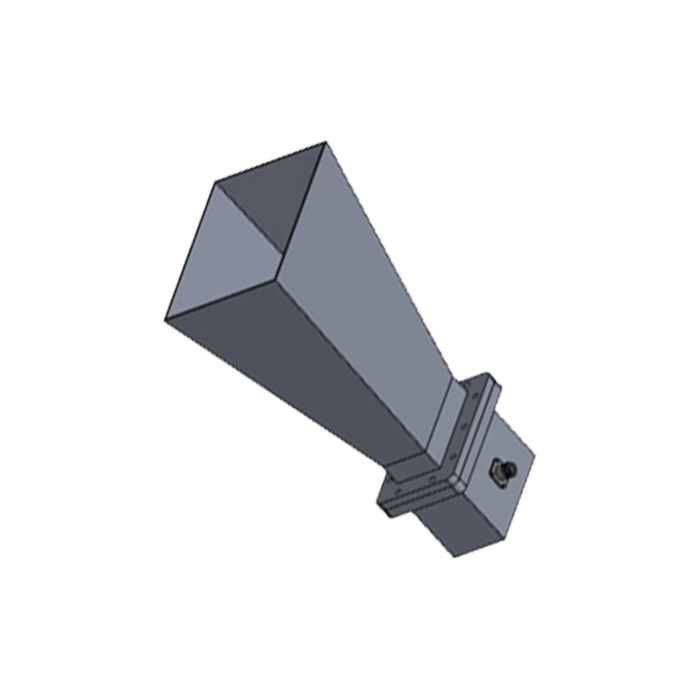

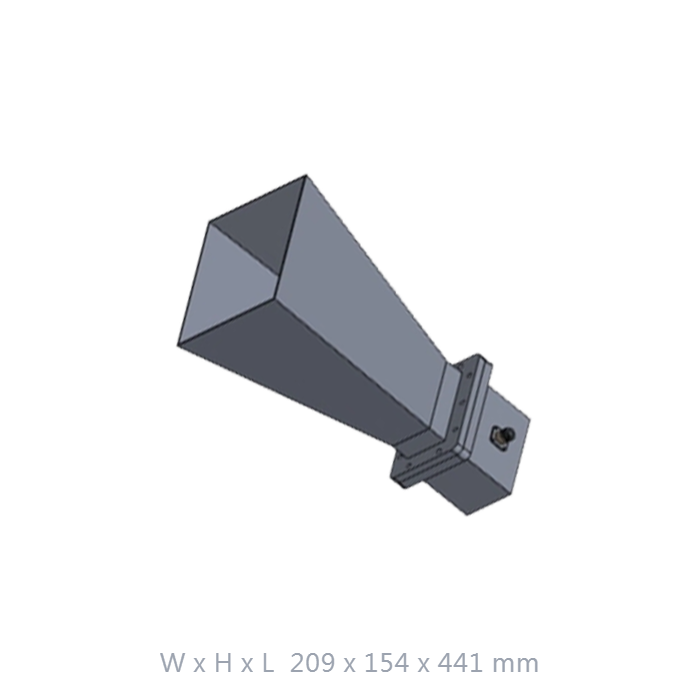

| Frequency Range Class | 1.7 GHz to 2.6 GHz (Continuous Spectral Optimization) |
| Waveguide Standard Size | EIA WR-430 (Rectangular Architecture Profile) |
| Nominal Gain (Typical) | 10 dBi |
| V.S.W.R Profile (Max) | ≤ 1.25 : 1 (Precision Low-Reflection Matching) |
| Maximum Power Handling | 1200 Watts (CW Continuous Wave Thermal Threshold) |
| -3dB Beamwidth (H-Plane) | 54° (Symmetric Pattern Optimization) |
| -3dB Beamwidth (E-Plane) | 54° (Symmetric Pattern Optimization) |
| Input Coaxial Connector | N-Female (Precision 50 Ohm Interface) |
| Physical Dimensions (W x H x L) | 154 x 209 x 441 mm |
| Net Weight Profile | 2700 g / 2.7 kg (Precision Rigid Footprint) |
| Waveguide Interface Flange | Standardized UG-435/U Flange (UDR Style Layout Compatible) |
| Structural Body Material | Premium Grade High-Conductivity Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Robust aluminum architecture supports intensive high-power continuous wave transmission, ideal for long-duration radar simulation and high-field immunity testing.
Equipped with perfectly matched 54° horizontal and vertical beam envelopes, ensuring highly stable radiation patterns for repeatable laboratory measurements.
Features a factory-calibrated waveguide-to-coaxial transition block terminating in an N-Female interface, offering immediate deployment versatility without separate adapter loss variables.
Optimized internal WR-430 profile yields an ultra-low maximum VSWR of 1.25:1, protecting expensive source instrumentation from disruptive power reflections.
Precision manufactured from premium aluminum in Taiwan to deliver high thermal dissipation coefficients and long-term electromechanical calibration longevity.
Contact our technical engineering division today to request official quote sheets, custom mounting brackets, tripod orientation kits, or individual factory certified calibration charts.
