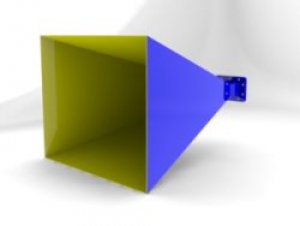

WR187 3.95GHz to 5.85GHz 15dbi Waveguide input Flange Type01

WR187 3.95GHz to 5.85GHz 15dbi Waveguide input Flange Type01

Model No: WI-187-A1-15

Frequency: 3.95GHz to 5.85GHz
Gain: 15 dbi
LxWxH: 307x172x128mm
N.W.: 0.7 KG
Flange: Type01
Waveguide Type: WR187
Quantity:
INQUIRY

  • Description & Specification

Model :WI-187-A1-15
LxWxH :307x172x128mm
Frequency :3.95GHz to 5.85GHz
Polarization :Vertical or Horizontal
-3db Beam-width :Horz.25 Deg Vert.24 Deg
N.W. :0.7 KG
Gain :15 dbi
Styling :WR187
