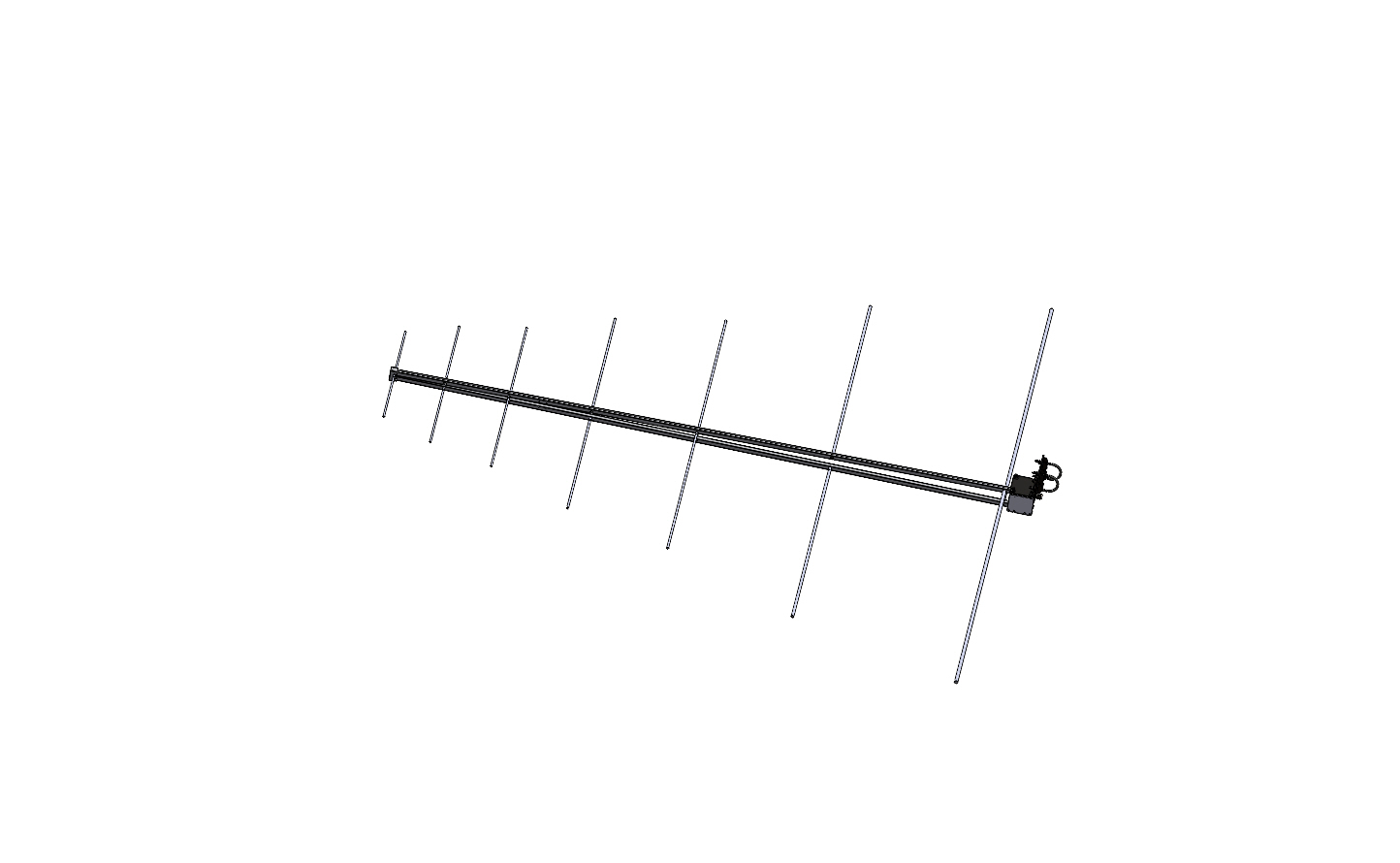

80MHz to 300MHz 7dbi Outdoor Log-periodic N-Female Antenna

80MHz to 300MHz 7dbi Outdoor Log-periodic N-Female Antenna

Model No: IP-08300M07-NF

Frequency: 80MHz to 300MHz

Gain: 7dBi

Weight: 4kg

Dimension: 1800x1900x200mm

Quantity:

INQUIRY

info-tw@ft168.com.tw

Taiwan Antenna Manufacturer - Horn Antenna for EMC/ EMI testing

We provide measurement and calibration Tests, ODM/ OEM/ OBM/ R&D services

Videos

Description & Specification

Description & Specification

Frequency: 80MHz to 300MHz

Gain: 7dBi

Weight: 4kg

Dimension: 1800x1900x200mm

Horizontal polarization angle: 110 deg

Vertical polarization angel: 56 deg

Connector: N-Female

Ambient temperature: -30 to 120deg

Humidity: 95%
