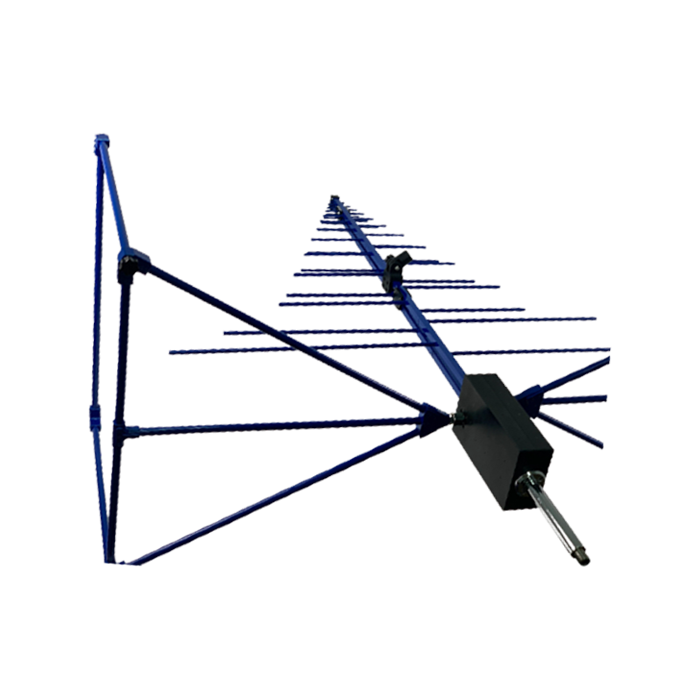

LO-30M06GA1-NF Broadband Log Periodic Antenna
30MHz to 7GHz Broadband Directional Antenna
The LO-30M06GA1-NF is a high-performance broadband log periodic antenna designed to operate across an extensive frequency range from 30 MHz to 7 GHz. With its directional radiation pattern and excellent VSWR characteristics, it is ideal for EMC testing, signal monitoring, spectrum analysis, and various wireless communication testing applications. Built with 6061 aluminum alloy and featuring DC short lightning protection.
Technical Specifications
Electrical Specifications
| Frequency Range | 30MHz - 7,000MHz (6GHz standard, usable up to 7GHz) |
| VSWR | < 2.5 : 1 |
| Antenna Type | Log Periodic |
| Radiation | Directional |
| Gain | 5 - 11 dBi |
| Polarization | Vertical or Horizontal |
| Maximum Input Power | 50W (CW) |
| Vertical Beamwidth | 76° (Average) |
| Horizontal Beamwidth | 52° (Average) |
| Impedance | 50 Ohm |
| Connector | N-Female |
| 3dB Beamwidth | Horizontal: 65°, Vertical: 120° |
Mechanical Specifications
| Dimensions (L×W×H) | 1255 × 1147 × 609 mm |
| Antenna Weight (NW) | 7 kg |
| Parts Material | 6061 Aluminum Alloy |
| Connector Material | Stainless Steel |
| Application | Indoor / Outdoor |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Design & Manufacturing | Made in Taiwan |
| Compliance | RoHS, WEEE, CE, FCC, ISO 9001:2015, ISO 14001:2015 |
Key Features
Ultra-Wide Frequency Coverage
30 MHz to 7 GHz broadband operation, ideal for multi-band testing and monitoring
30 MHz to 7 GHz broadband operation, ideal for multi-band testing and monitoring
DC Short Lightning Protection
Built-in protection for enhanced durability in outdoor and harsh environments
Built-in protection for enhanced durability in outdoor and harsh environments
Low VSWR Performance
Consistently low VSWR across entire frequency range for optimal signal transmission
Consistently low VSWR across entire frequency range for optimal signal transmission
Durable Construction
6061 Aluminum alloy with stainless steel N-female connector for long-term reliability
6061 Aluminum alloy with stainless steel N-female connector for long-term reliability
Dual Polarization
Supports both vertical and horizontal polarization for flexible deployment
Supports both vertical and horizontal polarization for flexible deployment
Certified Quality
Compliant with RoHS, CE, FCC, and ISO 9001/14001 standards
Compliant with RoHS, CE, FCC, and ISO 9001/14001 standards
