Description & Specification

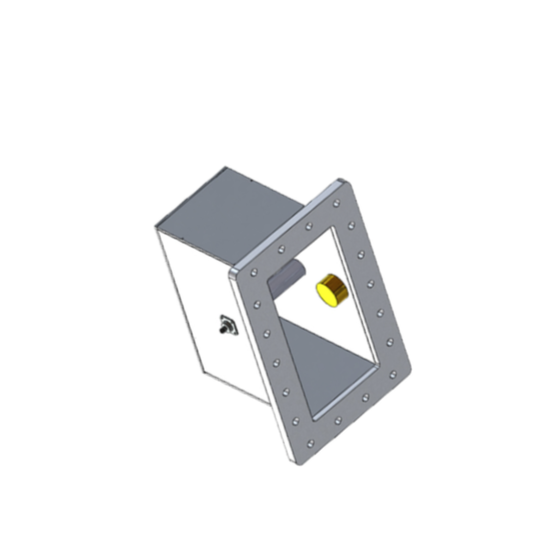

UHF-Band Waveguide Coaxial Adapter
Model: WC-975-UDR-SF | 750 MHz - 1150 MHz | N-Female Connector
The WC-975-UDR-SF is a high-power industrial adapter designed for precise signal transition between WR-975 waveguide systems and coaxial N-type interfaces. Operating in the 750MHz to 1150MHz range, it provides a stable and efficient RF path for high-power transmissions up to 1000W. Built from premium Aluminum with a robust UDR flange, this adapter meets international standards for mechanical precision and electrical performance, making it the definitive choice for long-range Radar, satellite ground stations, and mission-critical Signal Defense sub-systems.
Core Electrical Specifications
| Frequency Range | 750 MHz to 1150 MHz |
| Maximum Power Handling | 1000 Watts |
| Waveguide Type | WR-975 |
| Flange Interface | UDR Flange |
| Connector Interface | N-Female |
| Impedance | 50 Ohm |
Mechanical & Environmental Parameters

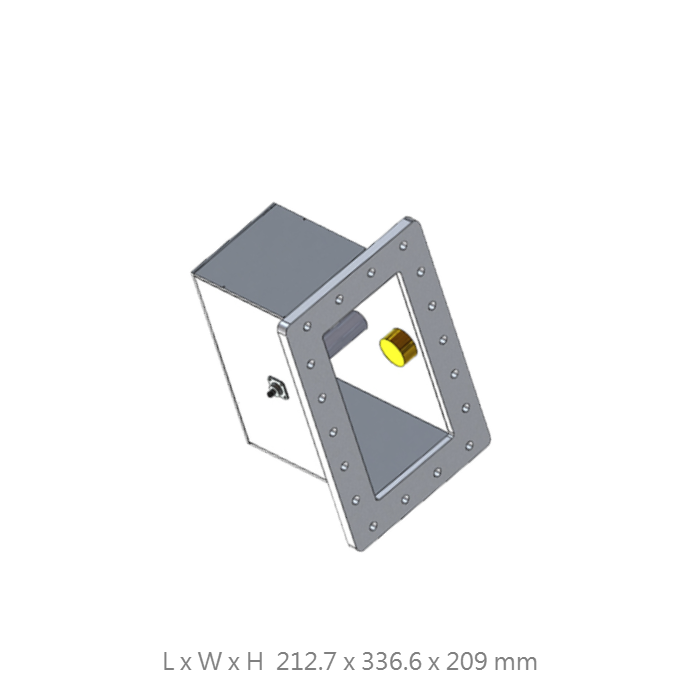

| Dimensions (L x W x H) | 212.7 x 336.6 x 209 mm |
| Net Weight (N.W.) | 4000 g |
| Material Composition | High-Quality Aluminum |
| Optional Customization | Waterproof / Custom Color / Mounting Plates |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Industrial Features
High-Power Industrial Robustness
Engineered to handle up to 1000W continuous wave power, making it a primary component for high-intensity L-band radiators and transmitters.
Precision Signal Transition
Designed to maintain high Signal Integrity with minimal insertion loss during the transition from large waveguide apertures to coaxial lines.
International Standard Compliance
Fully compliant with WR-975 dimensions and UDR flange standards, ensuring seamless compatibility with global industrial RF hardware.
Environmental Adaptation
Available with custom waterproof structures and specialized coatings to meet the demands of outdoor tactical deployments and maritime environments.
