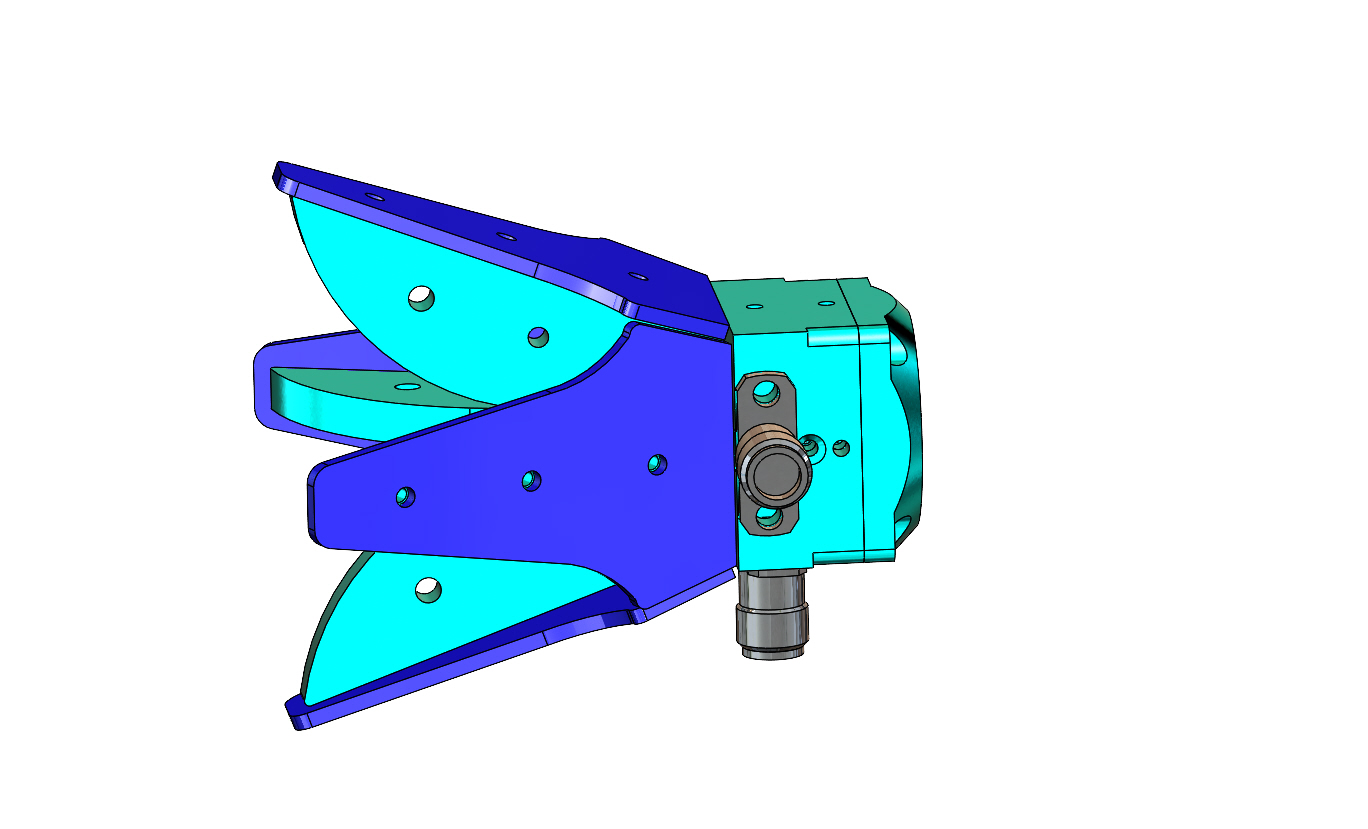

5 GHz to 70 GHz Open Boundary Quad-Ridged Horn Antenna
Model: HR-0570GB-VF | Millimeter-Wave EMC Testing | 1.85mm-Female
The HR-0570GB-VF is a high-performance, ultra-broadband Open Boundary Quad-Ridged Horn Antenna specifically engineered for millimeter-wave analysis and advanced Signal Security testing. Operating across the 5 GHz to 70 GHz frequency range, it provides dual-linear polarization with uniform gain characteristics. Precision-machined from 6061 Aluminum alloy with high-fidelity stainless steel interfaces, it delivers exceptional Signal Integrity for mission-critical electromagnetic compatibility (EMC) measurements and professional laboratory deployments[cite: 563, 579, 580].
Technical Specifications
Electrical RF Performance
| Frequency Range | 5 GHz to 70 GHz |
| Polarization | Dual Linear |
| V.S.W.R (MAX) | Low VSWR Performance |
| Gain | Uniform broadband Gain |
| Connector Type | 1.85mm-Female (Precision Grade) |
| Impedance | 50 Ohm |
Mechanical & Environmental
| Dimensions (L x W x H) | 55.27 x 55.27 x 61.41 mm |
| Estimate Weight | 55.54 g [cite: 570] |
| Antenna Type | Open Boundary Quad-Ridged Horn [cite: 579] |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
| Mounting Holes | M2.50 x 0.45 [cite: 593] |
| Design & Origin | Taiwan Design / Made in Taiwan [cite: 586] |
Key Tactical & Lab Features
Ultra-Broadband Coverage
Spans from 5 GHz to 70 GHz, enabling comprehensive millimeter-wave analysis and cross-spectrum Signal Security verification.
Open Boundary Geometry
Specialized quad-ridged architecture ensures minimal pattern distortion and consistent gain profiles for high-precision EMC testing.
Aerospace-Grade Build
CNC-machined from 6061 Aluminum alloy to ensure long-term structural rigidity and stable performance under mechanical stress.
Consolidated Performance Data
Supported by comprehensive calibration data for accurate system integration and traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, mechanical drawings, or specialized mounting hardware solutions.
New Products
Related Products
NEW
HR-03M18G-SF
300MHz to 18GHz Open Boundary Quad-Ridged Horn Antenna, S-Female Connector
View Details
Made in Taiwan
| Frequency Range: | 300 MHz - 18 GHz |
| Gain (Avg): | 2 to 18 dBi |
| Polarization: | Dual Pol. / ± 45° |
| Connector: | SMA-Female * 2 |
NEW

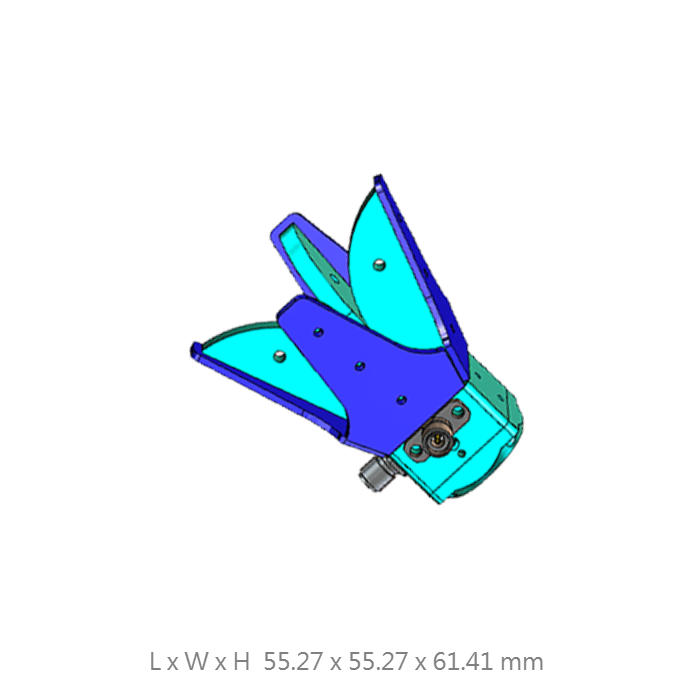

HR-0540GB-KF
