Description & Specification

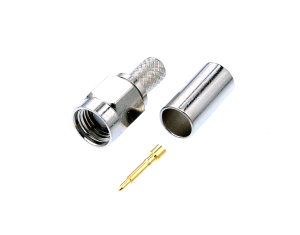

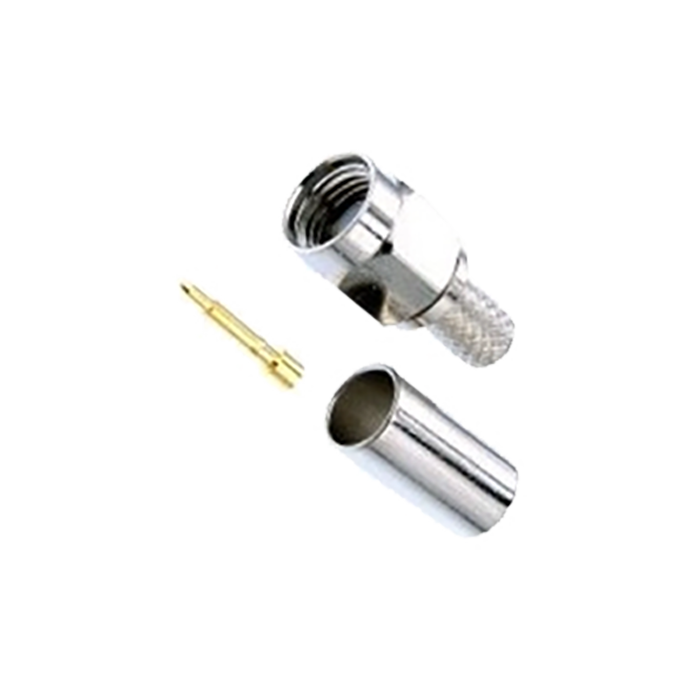

SMA Series Straight Male Connector
Model: CO-XXXSA00MCR-2A | 50 Ohm | Plug/Male | Straight Outline
The SMA Straight Male series is a high-reliability interconnect solution for mission-critical RF applications. Designed for Signal Defense systems and advanced communication dominance, these Plug / Male connectors support a broad range of high-performance coaxial cables including LMR and RG series. Precision-machined for 50 Ohm stability and featuring a secure Crimp mating interface, they ensure superior mechanical survival and low loss in mobile tactical command units and professional-grade shielding environments.
Technical Specifications
Core Performance Parameters
| Series | SMA |
| Connector Gender | Plug / Male |
| Impedance | 50 Ohm |
| Mating Type | Crimp / Clamp |
| Outline | Straight |
Coaxial Cable Compatibility & Models
| Compatible Cable Type | Model Number |
| RG-58 / RG58AU | CO-058SA00MCR-2A |
| RG-141 / RG-142 | CO-142SA00MCR-2A |
| RG-174 / RG-178 / RG-316 | CO-316SA00MCR-2A |
| LMR-195 / CFD-200 / LMR-240 | CO-240SA00MCR-2A |
| LMR-400 / FT-400 | CO-400SA00MCR-2A |
| OD0.81 / OD1.13 / BT 3002 | CO-113SA00MCR-2A |
Key Technical Features
Inline Signal Integrity
The straight outline design ensures a direct signal path, minimizing VSWR and insertion loss for critical communication links.
High-Strength Crimp Interface
Features a specialized crimp mating type for unwavering mechanical retention and professional-grade durability in mobile tactical units.
Universal Application
Supports a wide array of industrial and defense cables from standard RG series to high-performance low-loss LMR cables for maximum signal integrity.
Precision Signal Defense
Optimized for 50 Ohm precision, supporting advanced signal management and interference mitigation in professional communication networks.
Get a Quote / Custom Assemblies
Contact us for bulk procurement, specific cable stripping services, or alternative gold-plated connector requirements.
