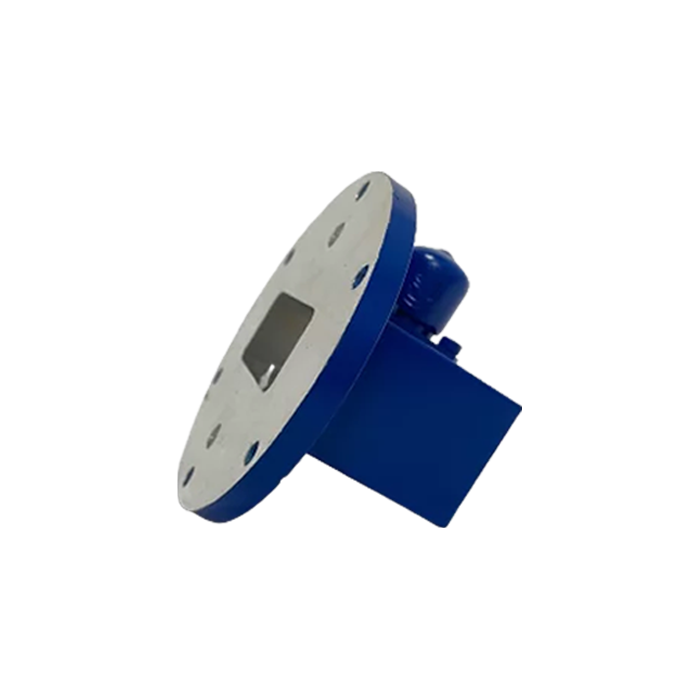

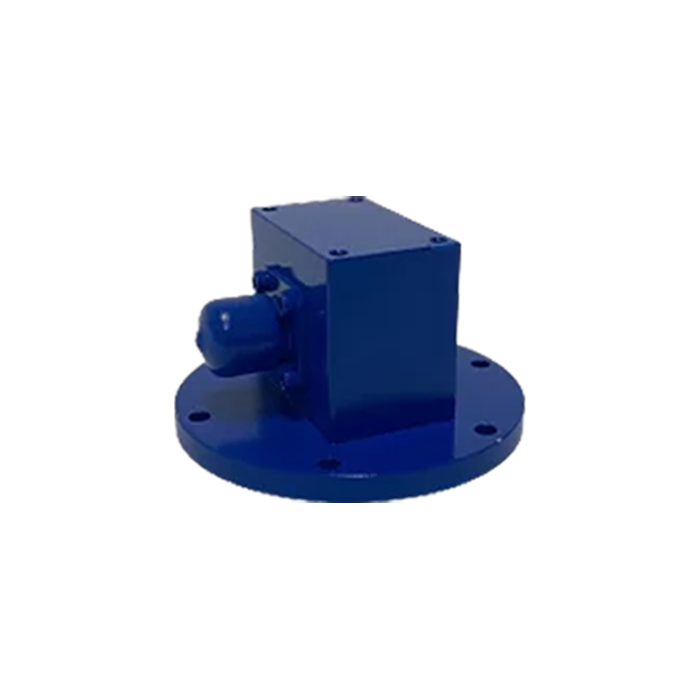

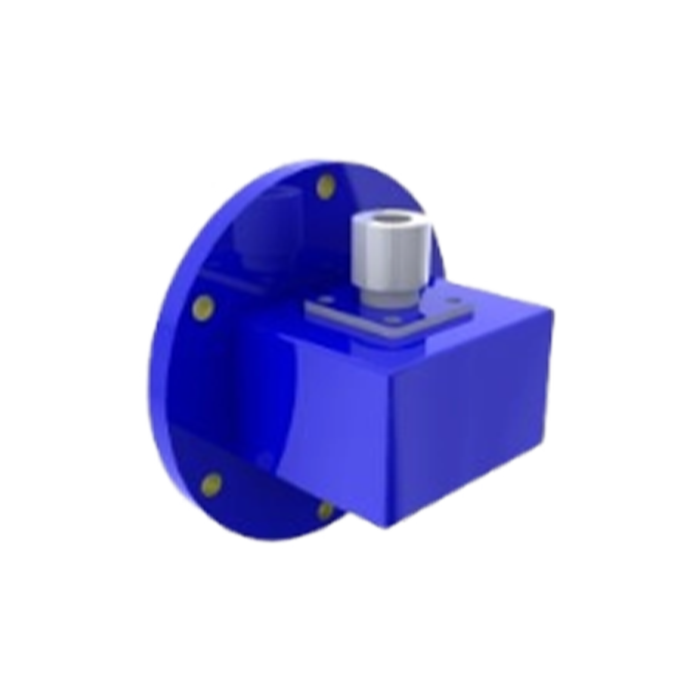

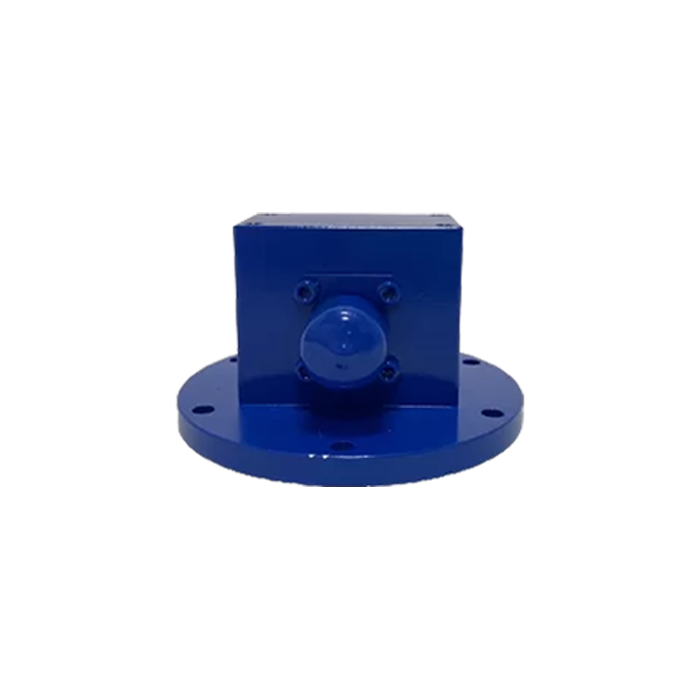

WR159 4.9GHz to 7.05GHz N-Female Waveguide Coaxial Adapter Flange:type01(Aluminum)

WR159 4.9GHz to 7.05GHz N-Female Waveguide Coaxial Adapter Flange:type01(Aluminum)

Model No: WC-159-A1-NF

Model: WC-159-A1-NF
Frequency Range: 4.9 GHz - 7.05 GHz
Connector: N-Female
Waveguide / Flange: WR-159 / UDR 58
Dimension: 48.4 x 85.92 mm (Round)
Stock: Contact us for availability | Delivery: 5-7 working days
Quantity:
INQUIRY

  • Description & Specification

WR159 Waveguide to Coaxial Adapter (Model: WC-159-A1-NF)

4.9 - 7.05 GHz | Stainless Steel N-Type | Round Flange Profile
The WC-159-A1-NF is a specialized C-Band adapter designed for robust RF applications between 4.9 GHz and 7.05 GHz. Distinguished by its Stainless Steel N-Female Connector, this unit offers superior resistance to corrosion and mechanical wear compared to standard brass connectors. Its unique round mechanical profile (Round Flange) allows for versatile installation in rotating joints or confined spaces where rectangular clearances are limited. Capable of handling 250W continuous power, it is a reliable choice for radar up-converters and satellite communication links.
Technical Specifications
Electrical Specifications
Frequency Range 4.9 GHz to 7.05 GHz (C Band)
Waveguide Size WR-159 (WG13 / R58)
Connector Type N-Female (Stainless Steel)
Max Power Handling 250 Watts (CW)
Polarization Linear (Horizontal or Vertical)
Mechanical Specifications

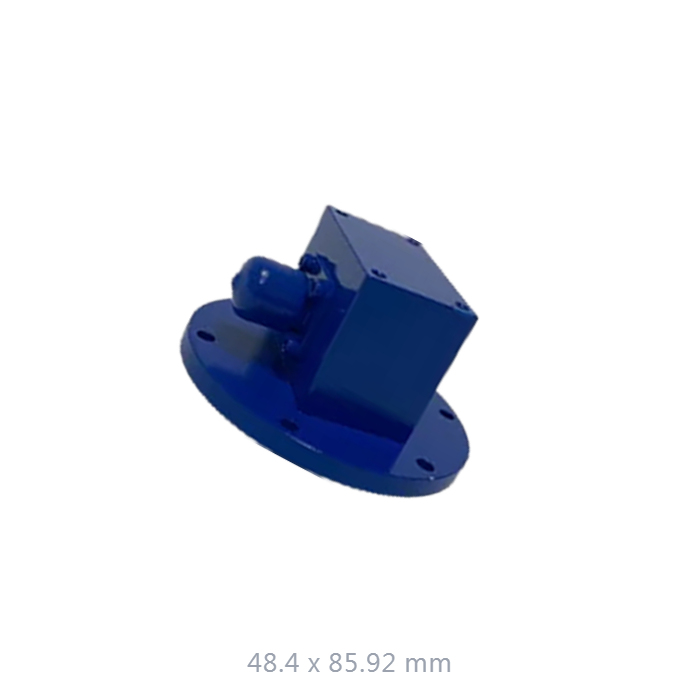

Dimensions 48.4 x 85.92 mm (Round Profile)
Net Weight 0.245 KG (245 g)
Flange Style Round (Compatible with WR159)
Connector Material Stainless Steel
Key Features (Model Specific)

C-Band Precision

Optimized for the 4.9-7.05 GHz range, covering critical Public Safety and Satellite uplink bands.

Stainless Steel Interface

Features a heavy-duty Stainless Steel N-Female connector for enhanced durability and mating cycle longevity.

Round Profile Design

Unique round mechanical structure (85.92mm diameter) ideal for specific flange mountings or rotary applications.

250W CW Power

Reliably handles up to 250 Watts of continuous wave power for mid-range transmission systems.

Compact 245g

Lightweight construction facilitates easy installation without adding significant load to antenna structures.

Get a Quote / Customization

Contact us for custom flange drilling or specific plating options.
