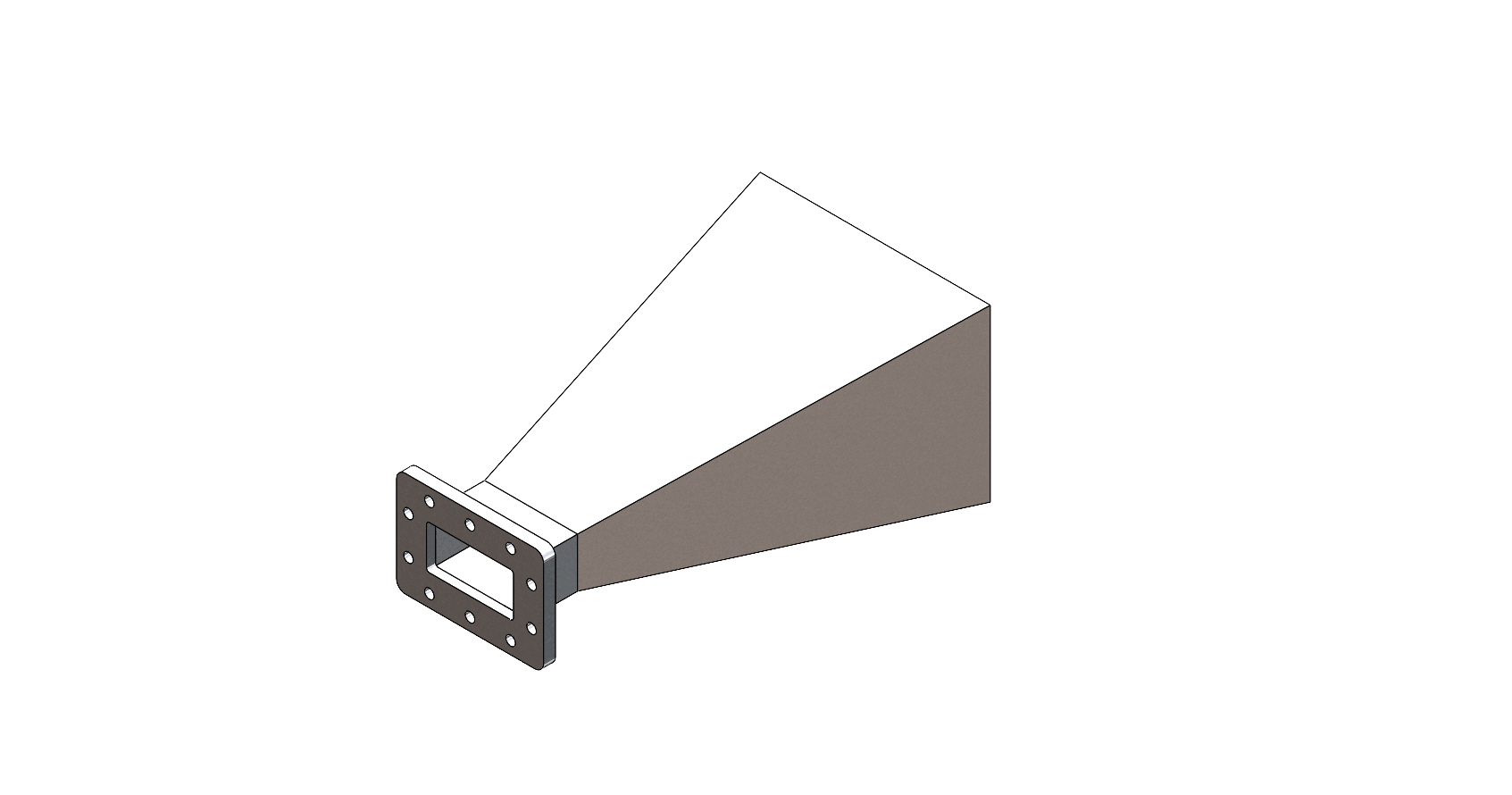

WR229(3.3 to 4.9GHz)15dbi Waveguide Horn Input /Flange:UDR

WR229(3.3 to 4.9GHz)15dbi Waveguide Horn Input /Flange:UDR

Model No: WI-229-UDR-15

Mechanical Drawing: Download

  • Waveguide: WR-229
  • Frequency: 3.3GHz to 4.9 GHz
  • Gain: 15 db
Quantity:
INQUIRY

  • Description & Specification

  • Model: WI-229-UDR-15
  • Waveguide: WR- 229
  • Frequency:3.3GHz to 4.9 GHz
  • Gain: 15 dbi
  • Max Power(W): 1000W
  • H-plane(-3db): 32deg
  • E-plane(-3db): 31deg
  • Size(mm): 154x114x271
  • Weight(g): 600
  • Waveguide Flange: CPR 229F/ G (UDR)
  • V.S.W.R: 1.25
