| Frequency Range | 2.6 GHz to 3.95 GHz (S-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-284 (R32 / WG10 Layout) |
| Waveguide Flange Designation | PAR Style Flange Standard Layout |
| Coaxial Connector Interface | N-Female Interface Premium Port |

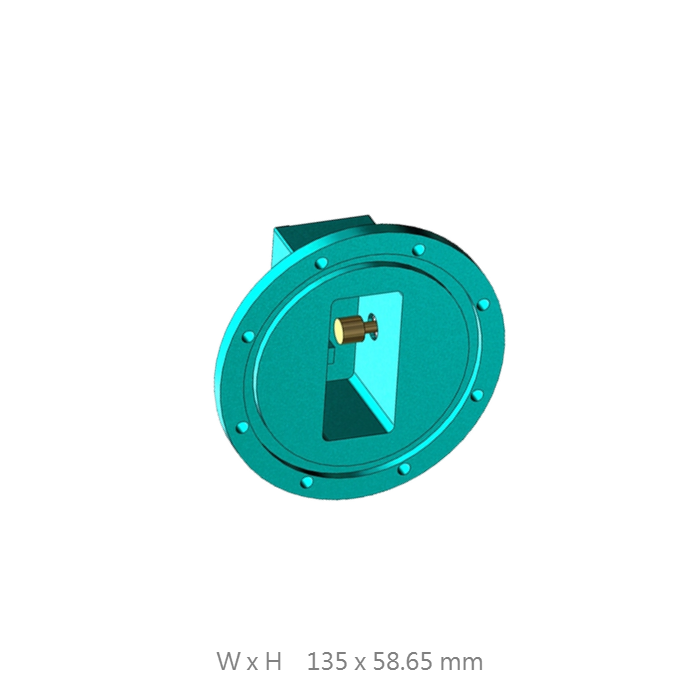

| Physical Dimensions (W x H) | 135 x 58.65 mm |
| Net Weight | 530 g |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal signal leakage and clean mapping flatness across the full 2.6–3.95 GHz operating spectrum.
Equipped with a high-durability, precision-aligned coaxial N-Female connector port, ensuring reliable electrical contact stability and long-term wear resistance for repeatable laboratory duty cycles.
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring outstanding mechanical flat tolerances and enduring calibration constancy.

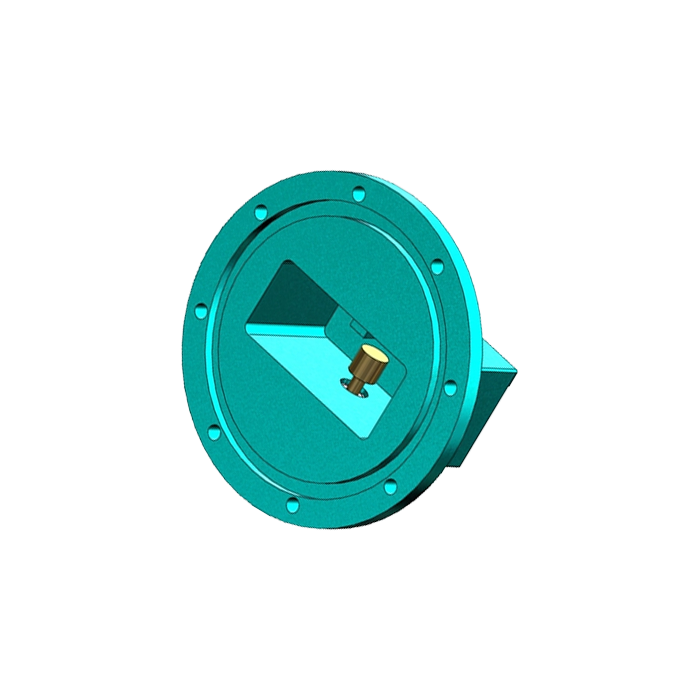

Features a specialized PAR waveguide flange for secure mechanical coupling, ensuring stable power transitions and repeatable, uncompromised test results in severe RF testing configurations.
Contact our technical engineering team today to request certified individual V.S.W.R plots, detailed radiation pattern documentation, or custom waveguide flange hole configurations.
