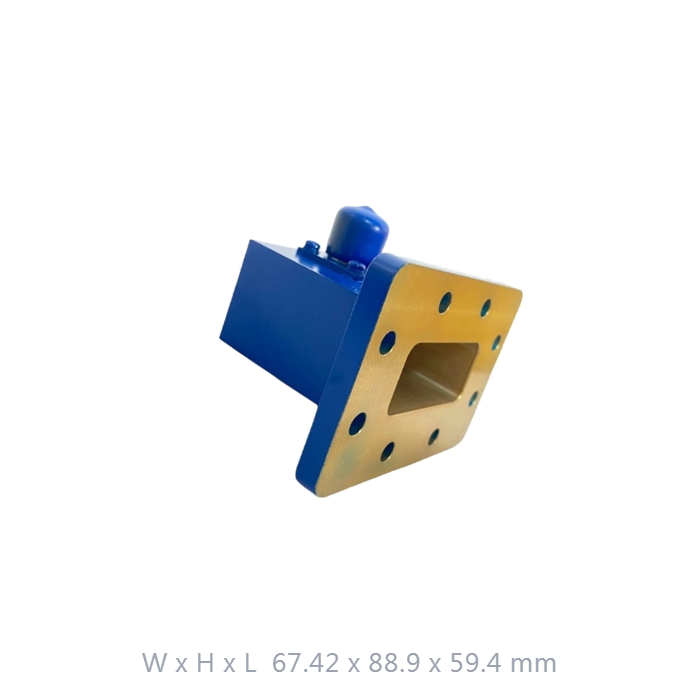

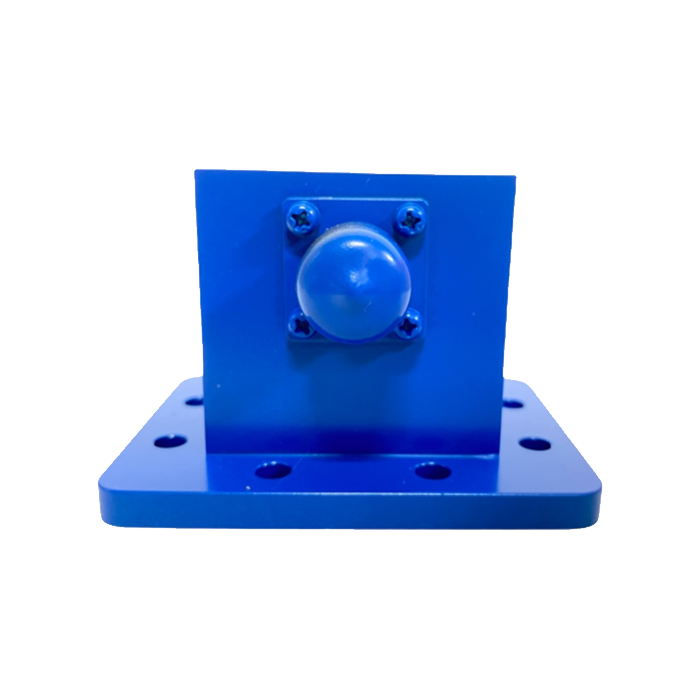

WR187 Waveguide Coaxial Adapter, frequency from 3.95GHz to 5.85GHz, N-Female connector, UDR Flange

WR187 Waveguide Coaxial Adapter, frequency from 3.95GHz to 5.85GHz, N-Female connector, UDR Flange

Model No: WC-187-UDR-NF

Mechanical Drawing: Download

  • Original Model No.: WC-187-A1-NF
  • Waveguide: WR-187
  • Frequency: 3.95 to 5.85GHz
  • Max Power(W): 300W
  • Size(mm): 67.42x88.9x59.4



Quantity:
INQUIRY

  • Description & Specification

Application:

  • WR187 Waveguide Coaxial Adapter 3.95GHz to 5.85GHz, N-Female connector, UDR Flange
  • Use with WR187 Standard gain horn antenna

Feature:

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • Customize Color

Specification:

  • Waveguide: WR-187
  • Frequency: 3.95 to 5.85GHz
  • Max Power(W): 300W
  • Size(mm): 67.42x88.9x59.4
  • Weight(g): 260
  • Waveguide Flange: UDR
  • Connector: N-Female
  • V.S.W.R: 1.25
  • Body: Aluminum
