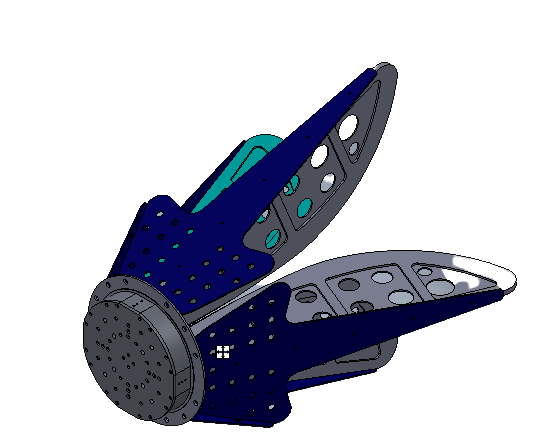

300 MHz to 18 GHz Open Boundary Quad-Ridged Horn Antenna
Dual Polarization SMA-Female | Industrial Grade EMC/EMI Solution
The Open Boundary Quad-Ridged Horn Antenna is a high-performance solution professionally engineered for ultra-wideband EMC/EMI testing, operating across the 300 MHz to 18 GHz spectrum. Designed for versatile Signal Integrity measurements, this antenna features dual SMA-Female connectors supporting vertical, horizontal, and ±45° polarizations. Its robust aluminum construction and DC Short lightning protection make it the definitive standard for laboratory EMI surveillance and tactical Signal Defense sub-systems. Proudly Made in Taiwan by FT-RF, this Industrial Grade instrument delivers stable radiation patterns and predictable performance for mission-critical RF testing.
Technical Specifications
RF & Electrical Performance
| Frequency Range | 300 MHz - 18 GHz |
| V.S.W.R (Avg) | < 2.0 : 1 |
| Standard Gain | 2 to 18 dBi |
| Polarization | Vertical / Horizontal / ± 45° (Dual Pol.) |
| Max Power Handling | 100W (<1GHz) / 50W (1-8GHz) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Dimensions (W x H x L) | 513 x 513 x 528 mm |
| Net Weight | 6.5 kg |
| Connector Type | SMA-Female * 2 (Stainless Steel) |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
| Lightning Protection | DC Short |
Professional Tactical Features
Ultra-Wideband Signal Integrity
Covers a massive 300MHz to 18GHz range with stable gain, ensuring peak Signal Integrity for complex EMC/EMI diagnostic testing and wide-band surveillance.
Versatile Dual Polarization
Equipped with dual SMA inputs to support simultaneous vertical and horizontal measurement or specialized ±45° slant polarization setups without physical rotation.
Industrial Grade Aluminum Build
Precisely machined open-boundary structure reduces overall weight while maintaining rigid structural integrity for repeatable and accurate range results.
Tactical Signal Security
Integrated DC Short protection ensures reliability in intensive Signal Management operations and long-term EMI surveillance in high-stakes environments.
Request a Professional Quote
Contact our engineering team to obtain individual gain charts, VSWR plots, or customized mounting bracket requirements.
