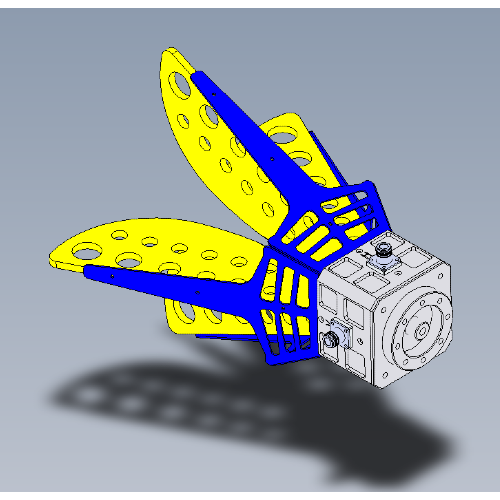

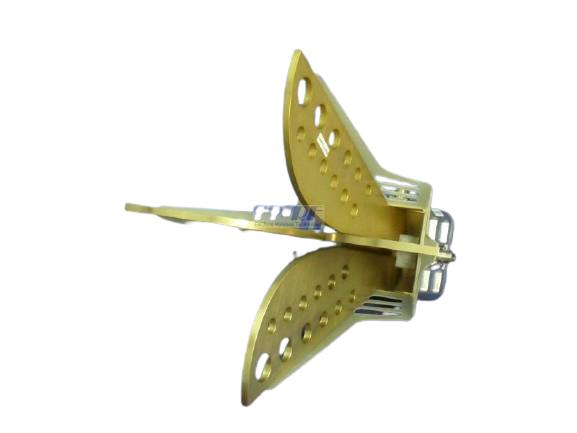

700MHz to 6GHz Open Boundary Quad-Ridged Horn Antenna
Ultra-Wideband Dual Polarization | Sub-6GHz Measurement Specialized
The 700MHz to 6GHz Open Boundary Quad-Ridged Broadband Horn Antenna is a precision instrument designed for high-fidelity antenna measurements and electromagnetic compatibility (EMC) testing. Constructed from 6061 Aluminum alloy with stainless steel N-female connectors, it supports simultaneous vertical and horizontal (or ±45°) polarization. Its open boundary design ensures uniform gain and stable radiation patterns, making it ideal for characterizing 5G Sub-6GHz devices and wideband radar detection systems.
Technical Specifications
Electrical Specifications
[Image of open boundary quad-ridged horn antenna radiation pattern 700MHz-6GHz]| Frequency Range | 700 MHz - 6 GHz |
| V.S.W.R (Avg) | 2.5 : 1 |
| Antenna Type | Quad-Ridged Horn |
| Radiation | Directional |
| Gain | 3 dBi to 13 dBi |
| Antenna Factor | 24 - 39 dB/m |
| Polarization | Vertical & Horizontal / ± 45° |
| Maximum Power Handling | 50 W |
| Vertical Beamwidth | 51° |
| Horizontal Beamwidth | 72° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 15 dB |
| Connector | N-Female |
Mechanical & Environmental Specifications

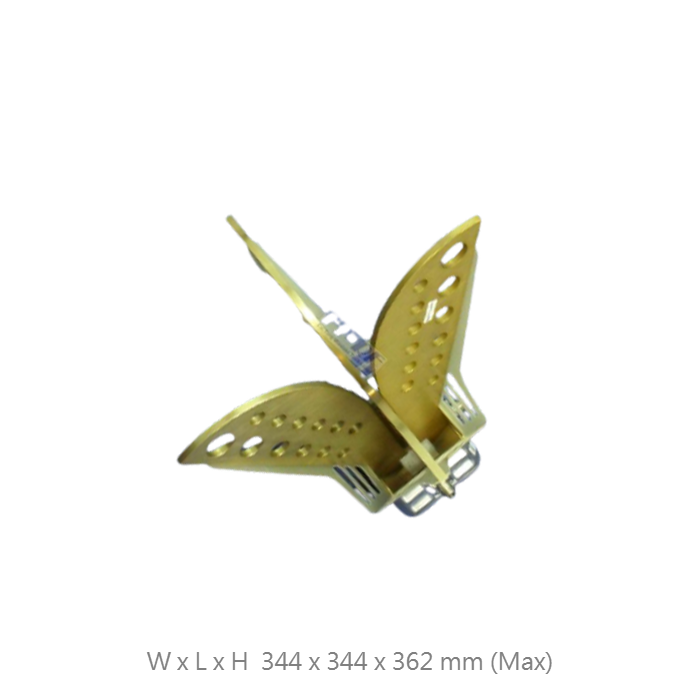

[Image of quad-ridged broadband horn antenna mechanical dimensions diagram]| Dimensions (WxL) | 344 x 344 mm (Max) |
| Height | 362 mm (Max) |
| Antenna Weight (G.W) | 3.3 kg |
| Material | 6061 Aluminum Alloy |
| Mounting Style | Antenna Mounting 8mm Screws |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
Open Boundary Architecture
Minimizes weight and edge diffraction, providing clean radiation patterns and stable phase center across the band.
Minimizes weight and edge diffraction, providing clean radiation patterns and stable phase center across the band.
Sub-6GHz Optimization
Specifically tuned to cover vital 4G/5G mobile bands and early microwave frequencies with high fidelity.
Specifically tuned to cover vital 4G/5G mobile bands and early microwave frequencies with high fidelity.
Dual Polarization (V/H)
Precision-engineered quad-ridged feed allows for simultaneous capture of orthogonal polarizations with high isolation.
Precision-engineered quad-ridged feed allows for simultaneous capture of orthogonal polarizations with high isolation.
DC Short Safety
Integrated lightning protection design prevents damage to sensitive RF front-ends from electrical transients.
Integrated lightning protection design prevents damage to sensitive RF front-ends from electrical transients.
Uniform Gain Profile
Ensures consistent gain ranging from 3 dBi to 13 dBi, facilitating reliable and repeatable measurement data.
Ensures consistent gain ranging from 3 dBi to 13 dBi, facilitating reliable and repeatable measurement data.
Taiwan Engineering Excellence
Proudly designed and manufactured in Taiwan using aerospace-grade Aluminum for superior durability.
Proudly designed and manufactured in Taiwan using aerospace-grade Aluminum for superior durability.
Contact Us
For pricing, calibration reports, or technical inquiries regarding the Type:05 Horn, please contact us:
Email: info-tw@ft168.com.twNew Products
