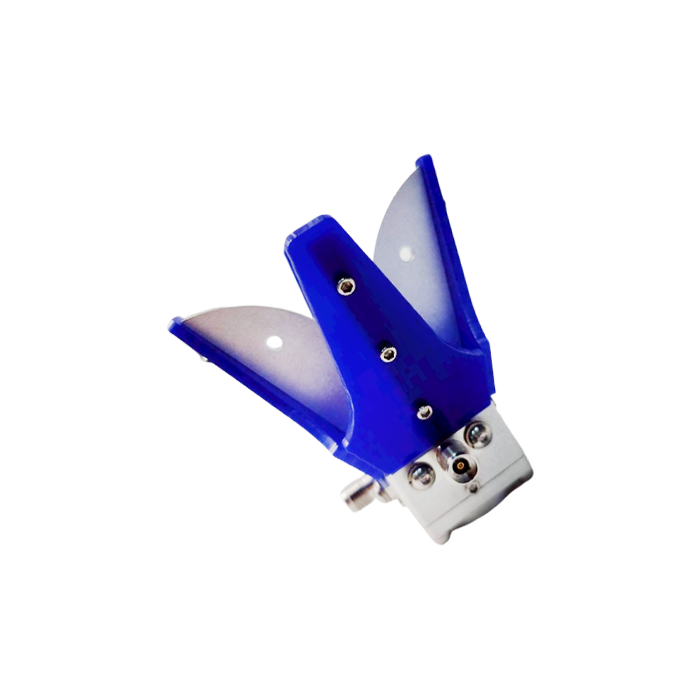

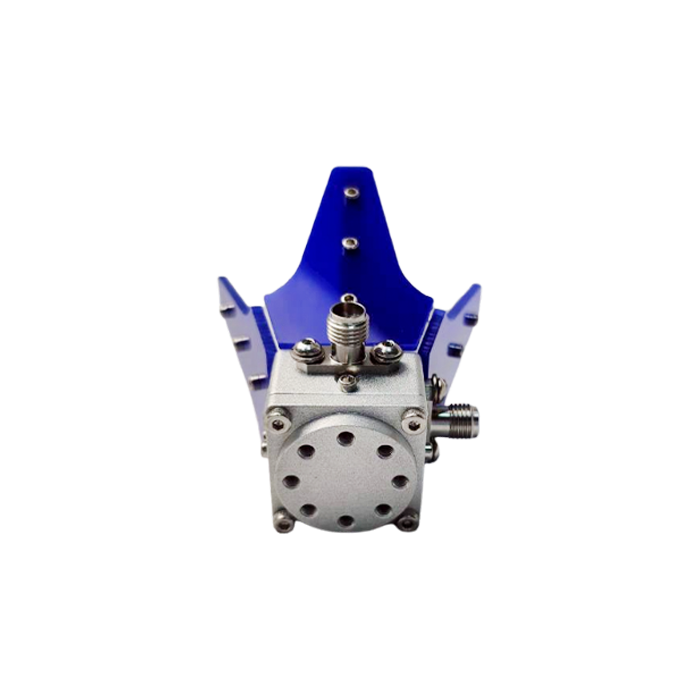

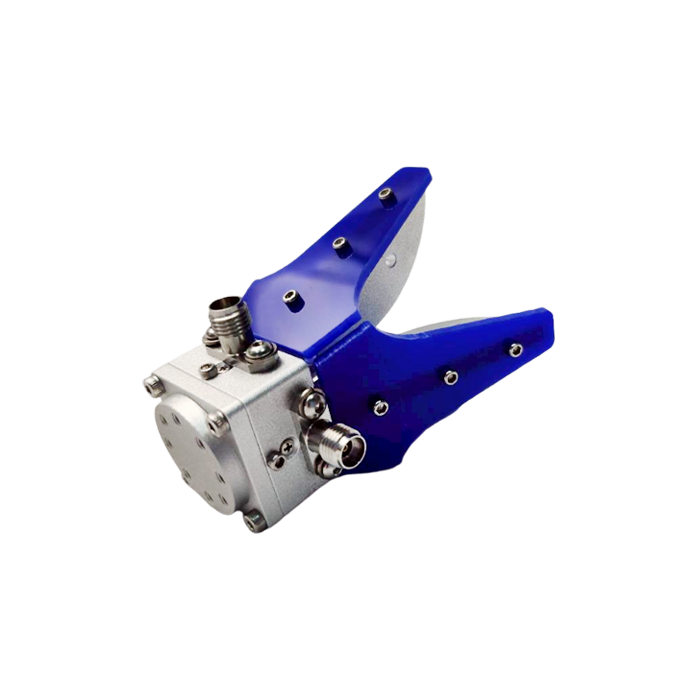

Open Boundary Quad-Ridged Broadband Horn Antenna
Model: HR-0540GB-KF | 5 GHz to 40 GHz | 2.92mm Female
The HR-0540GB-KF is a precision-engineered Open Boundary Quad-Ridged Broadband Horn Antenna designed for mission-critical applications across the 5 GHz to 40 GHz spectrum. Featuring a dual-polarized quad-ridged structure, it ensures consistent gain and superior radiation patterns for antenna measurements and wireless communication testing. Optimized for high-frequency Signal Security research, this antenna provides unwavering Signal Integrity and performance for advanced laboratory research and Signal Defense deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 5 GHz - 40 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Polarization | Dual Linear (Vertical / Horizontal) |
| Connector Type | 2.92mm Female (K-Connector) |
Mechanical & Construction

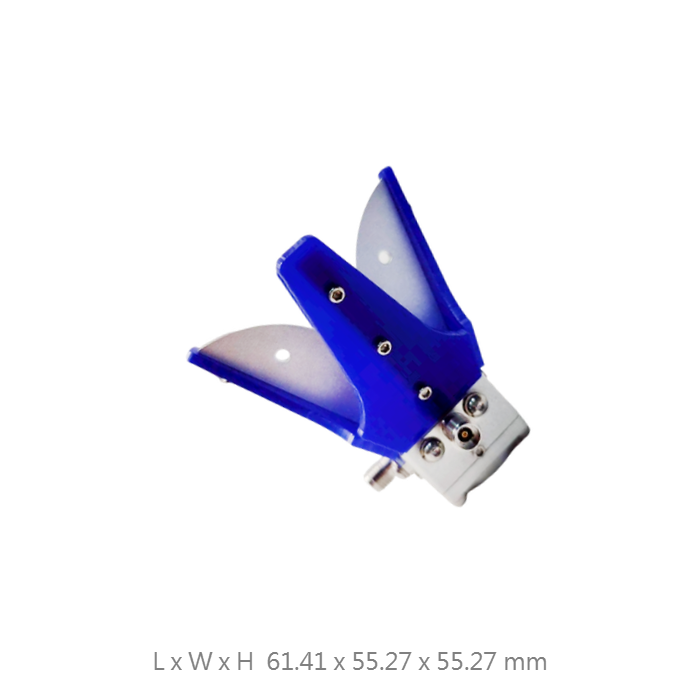

| Overall Dimensions (LxWxH) | 61.41 x 55.27 x 55.27 mm |
| Estimated Weight | 53.10 g |
| Mounting Interface | M2.50x0.45 Threaded Holes |
| Origin | Made in Taiwan (FT-RF) |
