Description & Specification
Applications:

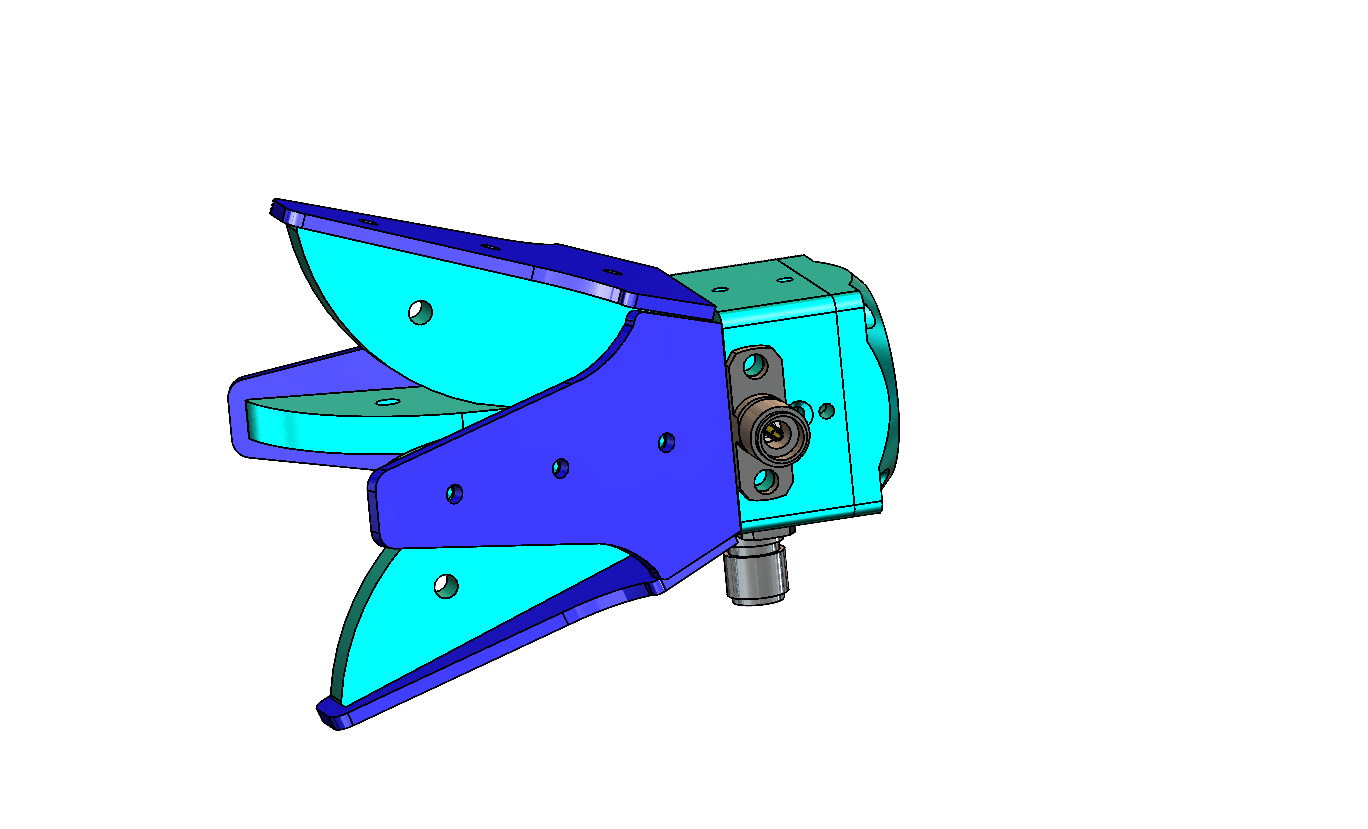

- 5 GHz to 40 GHz Open Boundary Quad-Ridged Horn Antenna, 2.92-Female connector
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- EMC testing
Features:
- Low VSWR
- Uniform Gain
