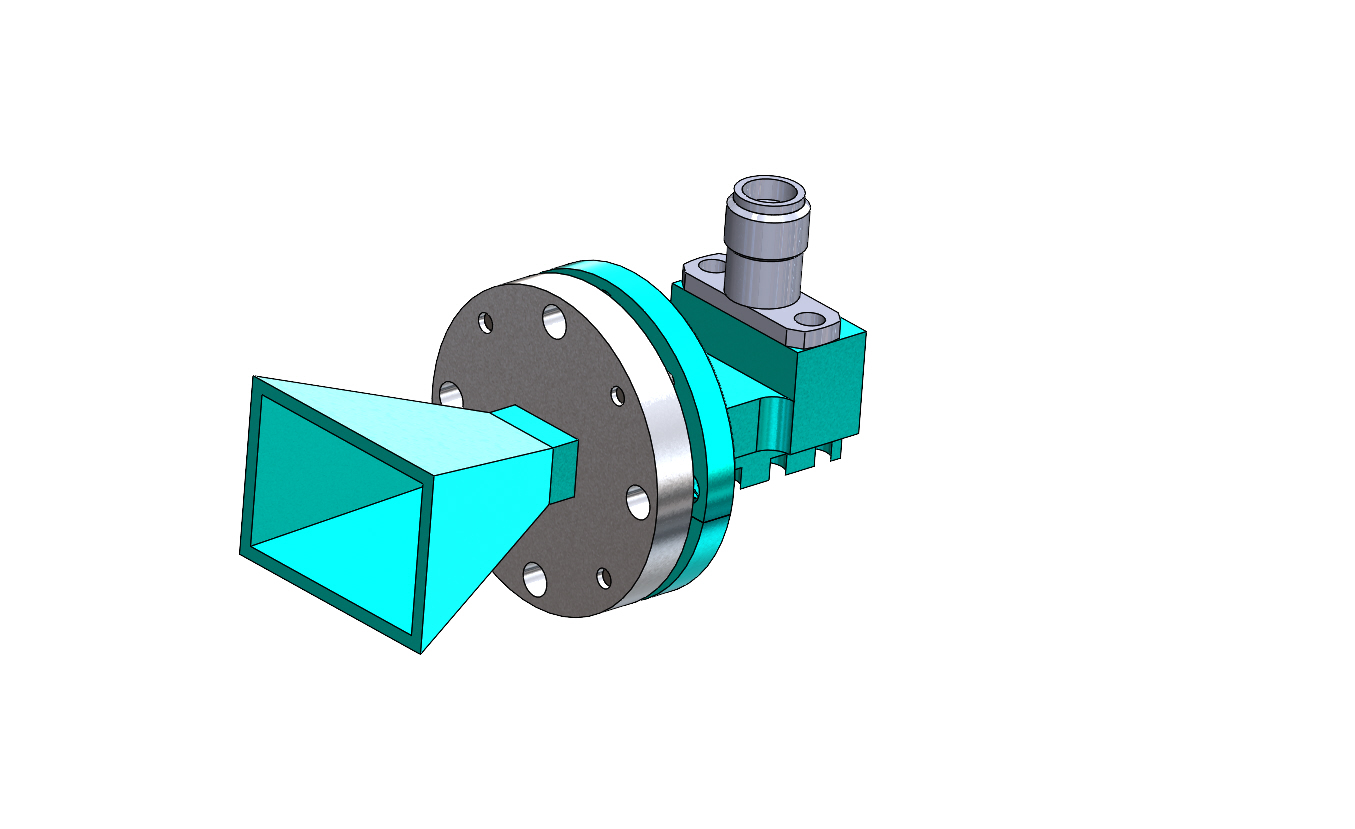

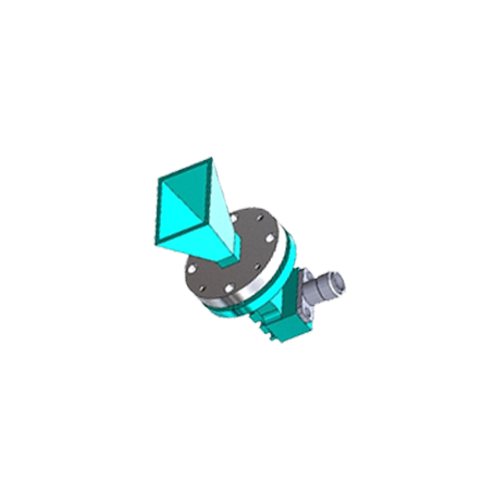

WR-22 Standard Gain Horn Antenna
Model: HS-022-UG-15A-VF | 32.9 - 50.1 GHz | 15 dBi | Q-Band
The HS-022-UG-15A-VF is a high-precision WR-22 Waveguide Horn Antenna designed for Q-Band millimeter-wave applications within the 32.9 GHz to 50.1 GHz spectrum. Optimized for professional Signal Security operations and high-frequency laboratory measurements, it provides a consistent 15 dBi gain with a 32° beamwidth. Featuring a premium aluminum construction and a precision 1.85mm V-Female connector, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 32.9 - 50.1 GHz (Q-Band) |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 80 Watts (CW) |
| V.S.W.R (Max) | 1.4 : 1 |
| 3dB Beamwidth (H/E Plane) | 32° / 32° |
Mechanical & Construction
| Waveguide Size | WR-22 (R400) |

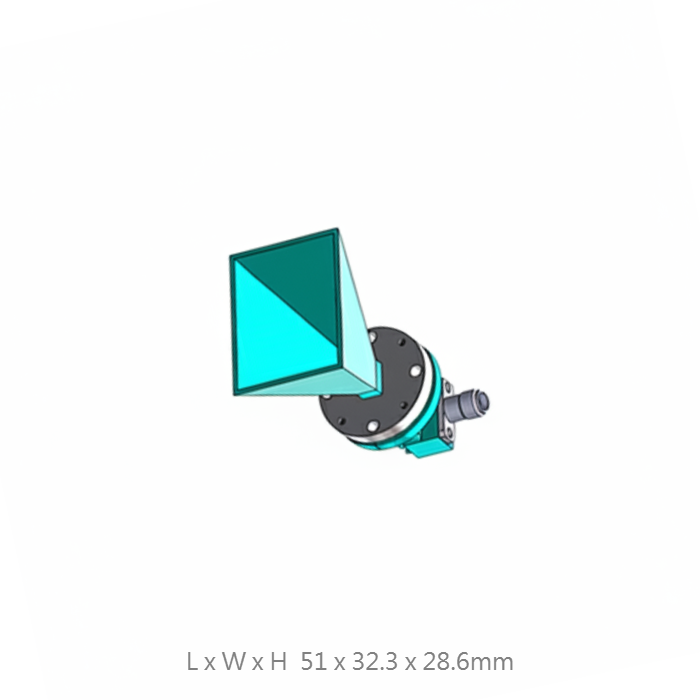

| Dimensions (WxHxL) | 32.3 x 28.6 x 51 mm |
| Net Weight | 28 g |
| Waveguide Flange | UG Compatible |
| Body / Connector Material | Premium Aluminum / 1.85mm V-Female |
| Origin | Made in Taiwan (FT-RF) |
