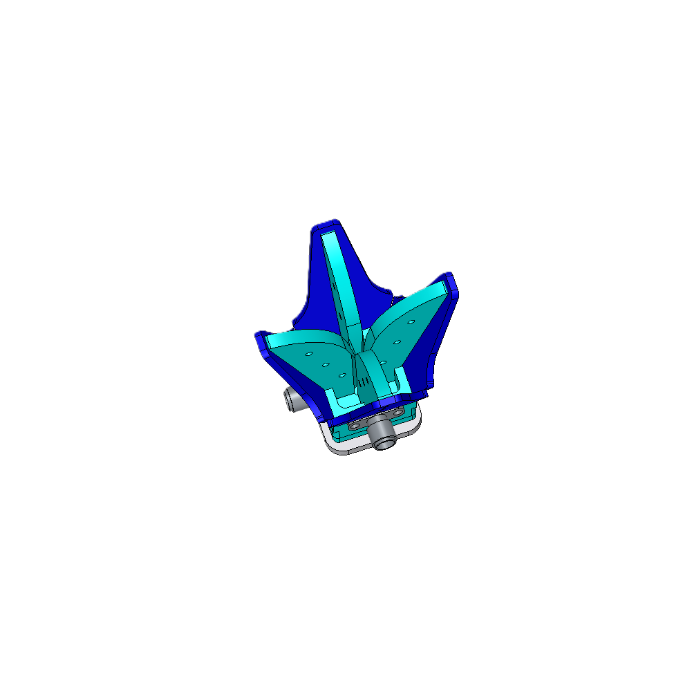

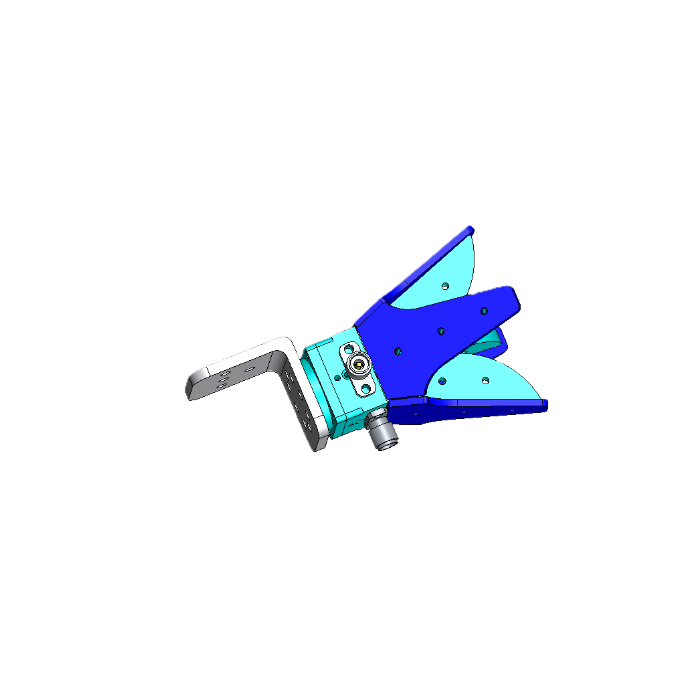

8GHz to 20GHz Open Boundary Quad-Ridged Broadband Horn Antenna
Dual Linear Polarization | Open Boundary Geometry | Model: HR-0820GB-VF
The HR-0820GB-VF is a high-performance Open Boundary Quad-Ridged Broadband Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 12]. Operating across the microwave frequency band from 8 GHz to 20 GHz, it features an advanced open boundary quad-ridged structure measuring 56.21 x 56.21 mm with an overall length of 61.41 mm[cite: 12]. Designed for dual linear polarization, it provides excellent cross-polarization isolation and low return loss across multi-octave bandwidths. Constructed from precision CNC-machined aluminum alloy weighing approximately 66.3 g, it is equipped with a high-grade 1.85mm (V-Female) coaxial connector, offering an optimal standard for radar systems, broadband surveillance, EMI/EMC compliance, and anechoic chamber measurements[cite: 12].
Technical Specifications
| Frequency Range | 8 - 20 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Polarization | Dual Linear (Orthogonal) |
| Impedance | 50 Ω |
| Connector | 1.85mm (V-Female) |
Mechanical & Physical Data

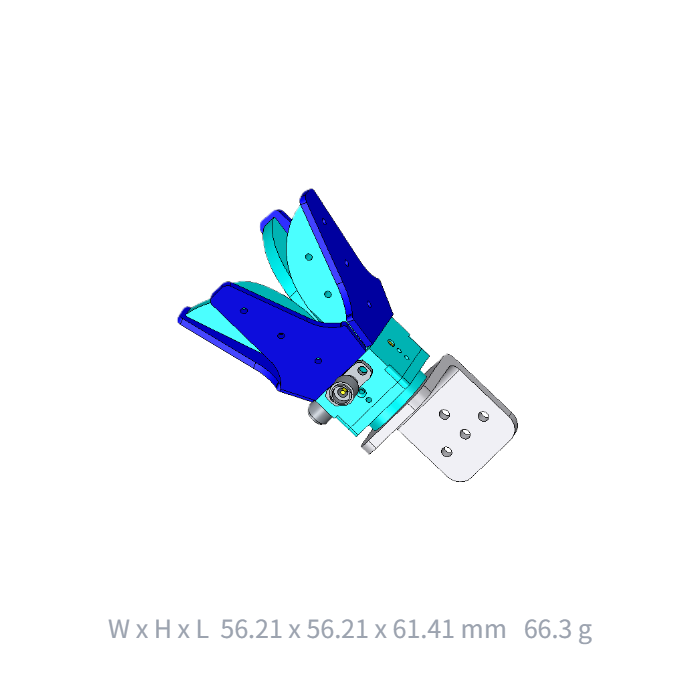

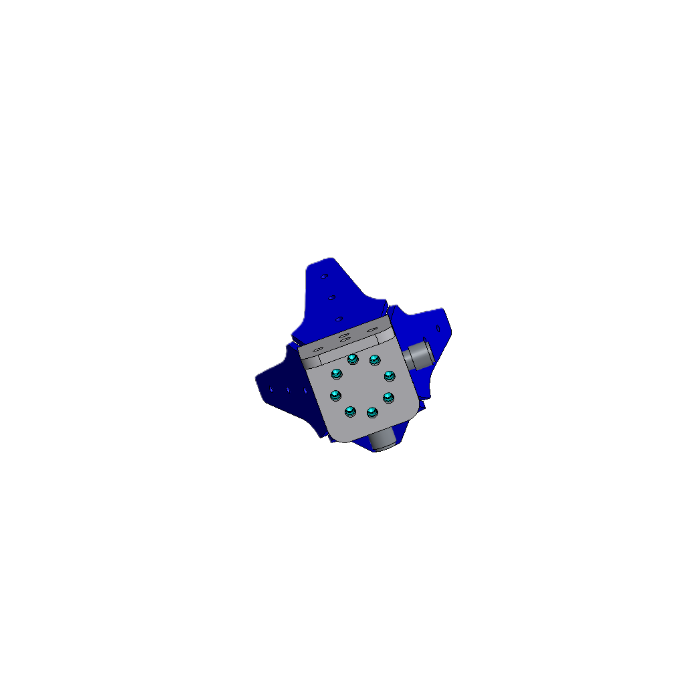

| Dimensions (W x H x L) | 56.21 x 56.21 x 61.41 mm |
| Weight | 66.3 g (Estimated ~66.26 g) |
| Body Material | Precision Aluminum Alloy |
| Mounting Interface | M2.50 x 0.45 Threaded Holes (3 x 8 Pattern) |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Quad-Ridged Open Boundary
Open boundary geometry minimizes side-lobe reflections while maintaining stable radiation patterns.
Dual Linear Polarization
Supports orthogonal dual linear polarization for multi-channel microwave signal reception.
Ultra-Compact & Lightweight
Aperture footprint of 56.21 x 56.21 mm weighing only ~66.3 g enables flexible test bench setup[cite: 12].
Taiwanese Precision
Precision CNC machined from high-grade aluminum alloy in Taiwan for maximum measurement repeatability[cite: 12].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
