Standard Gain Horn Antennas (HS)

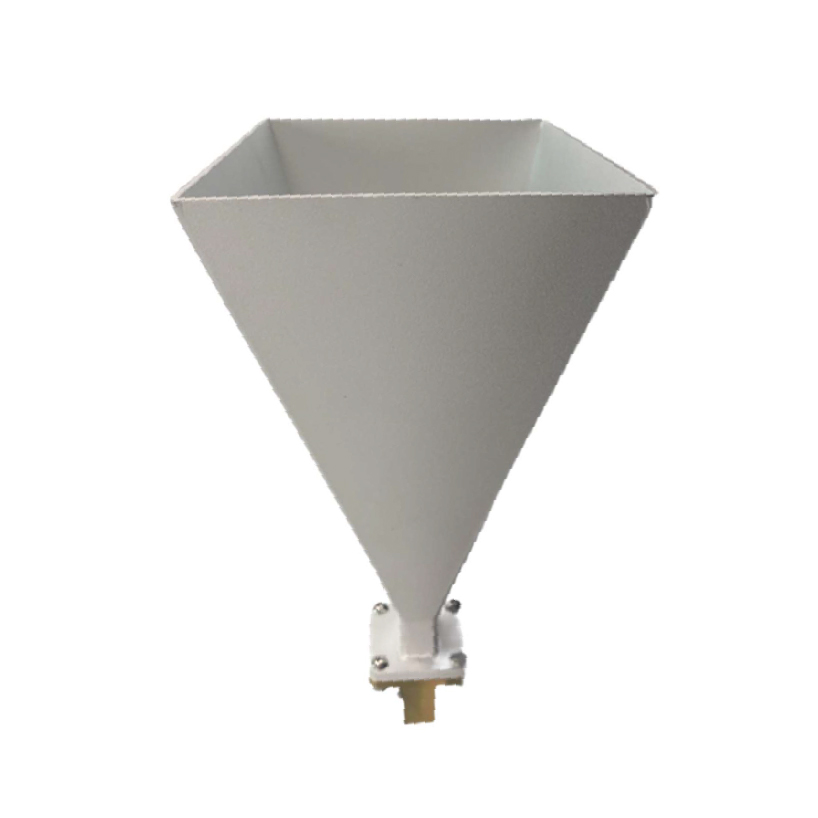

The HS Series Standard Gain Horn Antennas serve as trusted calibration reference standards for measuring the absolute gain and radiation characteristics of other test antennas. Engineered through a precise combination of a Standard Gain Horn and an integrated Waveguide-to-Coaxial Adapter, these antennas deliver exceptional accuracy, high power stability, and reliable performance spanning frequencies from 320 MHz up to 70 GHz.
⚡ Next-Gen Calibration Highlights
Accurate Reference Gain
Designed with meticulous electromagnetic precision to provide accurate, reliable gain standards across all standard waveguide bands.
Integrated Adapter Assembly
Seamlessly combines Waveguide Inputs with low-loss Waveguide-to-Coaxial Adapters for effortless lab equipment integration.
Standardized Gain Options
Available in standard nominal gain steps of 10 dBi, 15 dBi, 20 dBi, and 25 dBi tailored to specific measurement setups.
Extensive Band Coverage
Comprehensive sizing supporting standard waveguide sizes from WR15 (70 GHz) down to WR2300 (320 MHz).
Key Operational Applications:
| Key Technical Parameter | HS Series Specification Overview |
|---|---|
| Frequency Range | 320 MHz – 70 GHz (Full Waveguide Band Coverage) |
| Nominal Gain Options | 10 dBi, 15 dBi, 20 dBi, and 25 dBi Options |
| Antenna Structure | Standard Gain Horn + Waveguide-to-Coaxial Adapter Assembly |
| Supported Waveguide Sizes | |
| Polarization & Impedance | Linear Polarization / 50 Ω Nominal Coaxial Interface |
| Primary Function | Reference Gain Standard & Antenna Characterization |
320 MHz – 70 GHz Range Gain: 10, 15, 20, 25 dBi WR15 to WR2300 Waveguides
