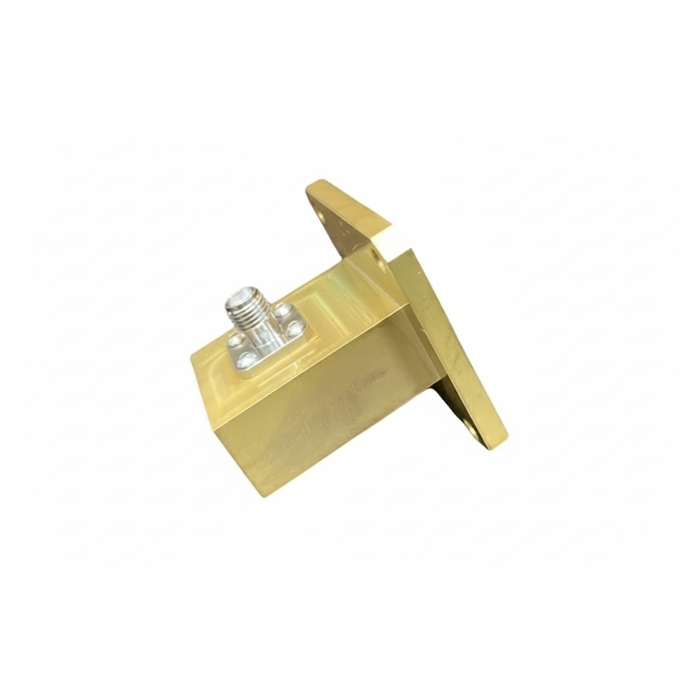

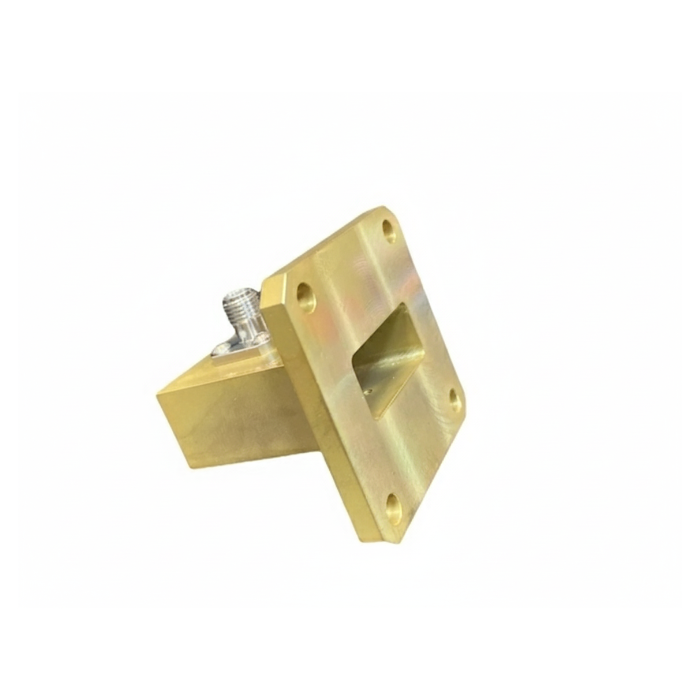

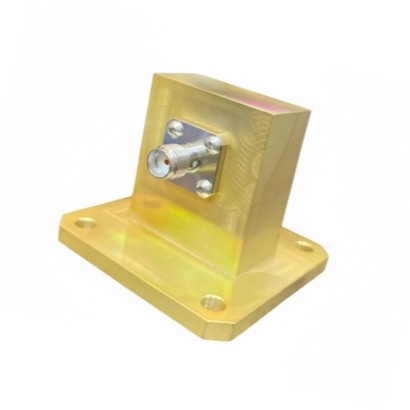

WR90 Waveguide Coaxial Adapter, 8.2GHz to 12.4GHz, SMA-Female Connector, UBR Flange

WR90 Waveguide Coaxial Adapter, 8.2GHz to 12.4GHz, SMA-Female Connector, UBR Flange

Model No: WC-090-UBR-A2-SF (WC-090-A1-SF)

Mechanical Drawing: Download

  • Waveguide: WR-90
  • Frequency: 8.2 to 12.4GHz
  • Max Power(W): 100W
  • Size(mm): 41.4x41.4x36
  • Weight(g): 70
  • Waveguide Flange: UG-39/U
  • Connector: SMA-Female
  • V.S.W.R: 1.3(Avg.)
  • Body: Aluminum
  • Connector:Stainless Steel
Quantity:
INQUIRY

  • Description & Specification

Application:

  • WR90 Waveguide Coaxial Adapter, 8.2GHz to 12.4GHz, SMA-Female Connector, UBR Flange

Feature:

  • Meet international standards
  • Good appearance design

Electrical Specs

Frequency Range

8.2GHz - 12.4GHz

V.S.W.R(Max)

1.5 :1

Radiation

Directional

Polarization

Vertical or Horizontal

Maximum Power

200 W

Impedance

50 Ohm

Antenna Design

Waveguide

Connector

SMA-Female

Mechanical Specs

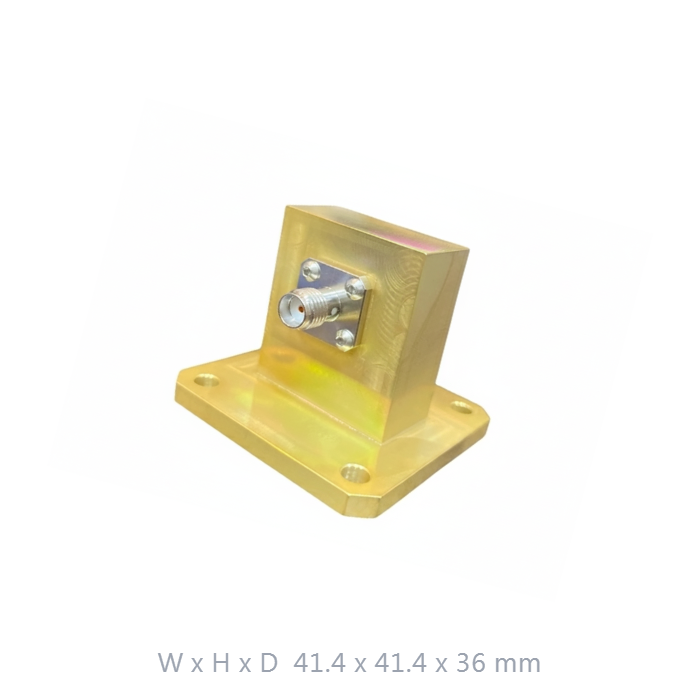

Dimension (mm) 41.4x41.4x36

Antenna Weight

70g

Application

Indoor / Outdoor

Parts Material

Aluminum

Storage Temperature

-20 to +80

Operating Temperature

-10 to +60

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission, and other

RoHS
