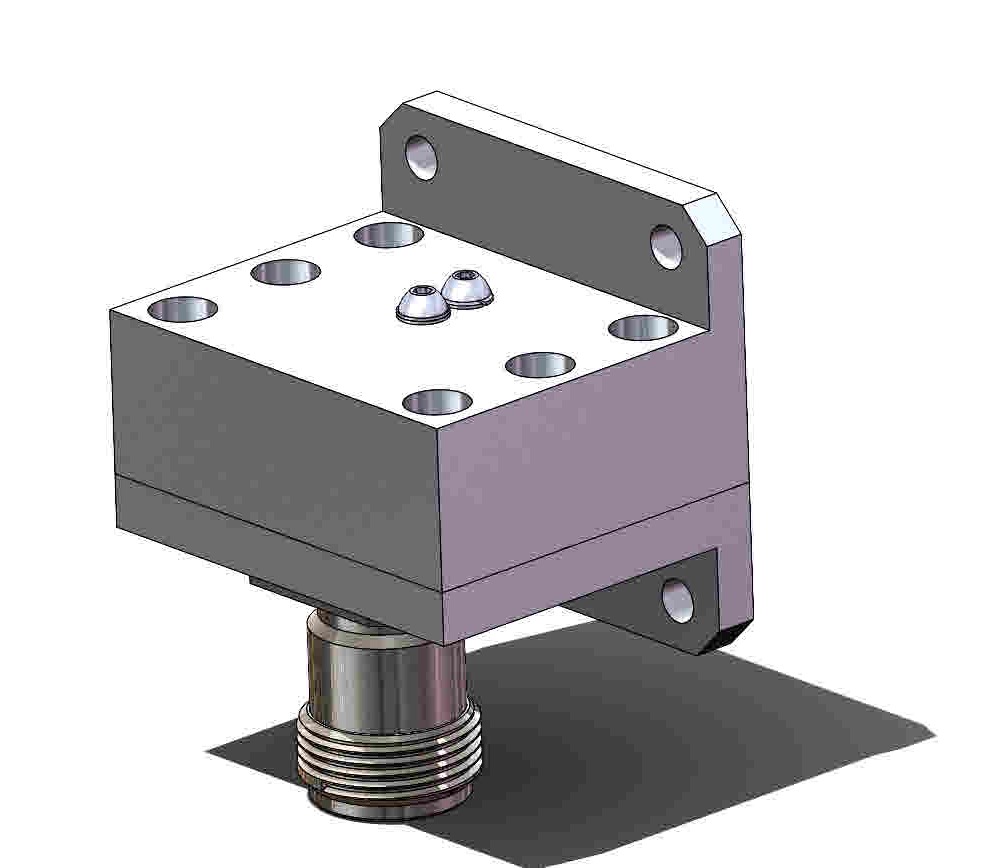

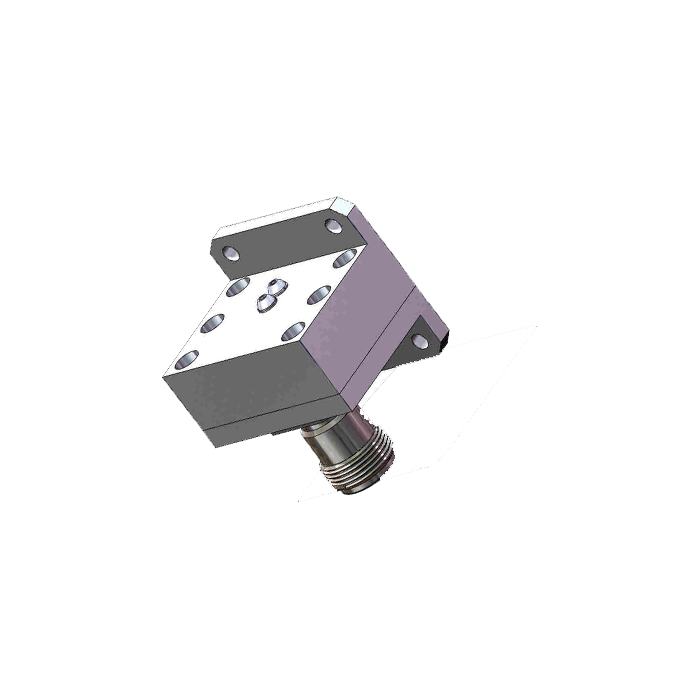

8.2 GHz to 12.4 GHz WR-90 Waveguide to Coaxial Adapter
Model: WC-090-UBR-A2-NF | N-Female Connector | 300W High Power
The WC-090-UBR-A2-NF is a high-performance Waveguide to Coaxial Adapter professionally engineered for the WR-90 waveguide standard. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this precision component is essential for pairing with professional waveguide systems and standard gain horn antennas in EMI/EMC testing and laboratory measurement ranges. Featuring a robust N-Female connector and a standardized UG-39/U (UBR) flange, it ensures low-loss coupling and exceptional Signal Integrity for mission-critical RF deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 8.2 GHz to 12.4 GHz |
| Waveguide Standard | WR-90 / R100 / WG16 |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

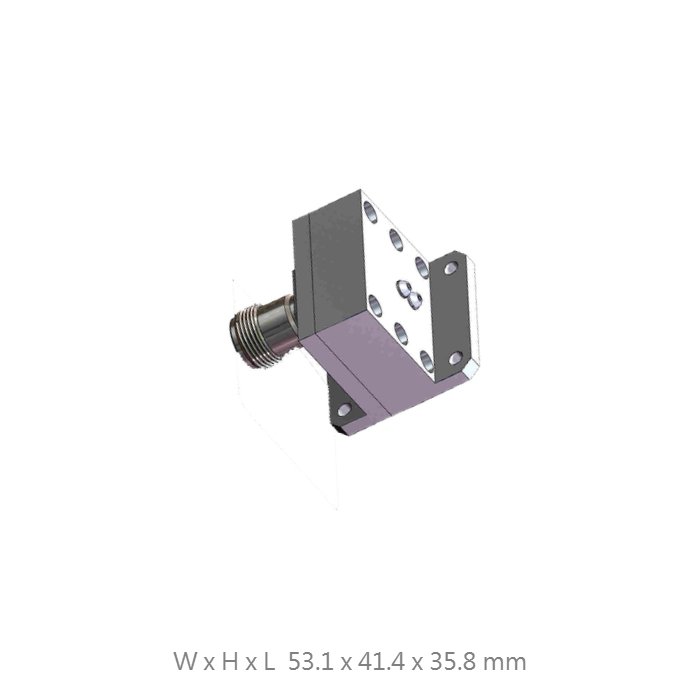

| Dimensions (W x H x L) | 53.1 x 41.4 x 35.8 mm |
| Net Weight | 90 g (Precision Build) |
| Waveguide Flange | UG-39/U (UBR Style) |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | N-Female |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
X-Band Spectrum Integrity
Optimized internal transition geometry ensures minimal signal leakage and reflection when paired with professional X-Band waveguide hardware or antennas.
300W High-Power Domination
Precision-engineered to handle massive continuous power loads, providing a robust transition for high-intensity transmitter feeds and industrial RF radiators.
Precision Aluminum Architecture
At only 90g, this compact adapter provides high structural rigidity while remaining easy to deploy on laboratory positioners or tactical masts.
Standardized UBR Interface
Features a specialized UG-39/U waveguide flange for secure mechanical coupling, ensuring repeatable results in demanding Signal Defense deployments.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling patterns, or alternative waveguide adapter designs.
