8.2 GHz to 12.4 GHz WR-90 Waveguide to Coaxial Adapter
Model: WC-090-UBR-A2-SF | SMA-Female Connector | 200W Power
The WC-090-UBR-A2-SF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the WR-90 standard. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this precision component is essential for pairing with professional waveguide systems and standard gain horn antennas in EMI/EMC testing, laboratory measurement ranges, and Signal Defense calibration. Featuring a high-quality SMA-Female connector and a standardized UG-39/U (UBR) flange, it ensures low-loss coupling and exceptional Signal Integrity for mission-critical RF deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band) |
| Waveguide Standard | WR-90 / R100 / WG16 |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 200 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

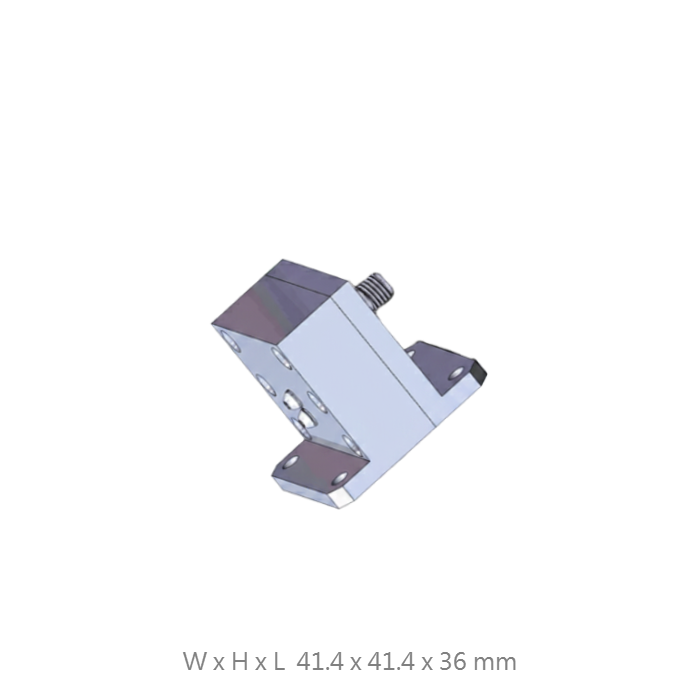

| Dimensions (W x H x L) | 41.4 x 41.4 x 36 mm |
| Net Weight | 70 g (Ultra-Lightweight) |
| Waveguide Flange | UG-39/U (UBR Style) |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | SMA-Female |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
X-Band Spectrum Integrity
Optimized internal transition geometry ensures minimal signal leakage and reflection when paired with professional X-Band waveguide hardware or antennas.
Precision SMA Interface
Equipped with a high-durability SMA-Female connector to provide superior electrical contact stability and structural longevity for repeatable laboratory measurements.
Ultra-Lightweight Architecture
At only 70g, this compact aluminum adapter ensures minimal load on precision laboratory positioners while maintaining the structural rigidity required for field tactical deployments.
Standardized UBR Interface
Features a specialized UG-39/U waveguide flange for secure mechanical coupling, ensuring repeatable results in demanding Signal Defense environments.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling patterns, or alternative waveguide adapter designs.
