Description & Specification
Applications:

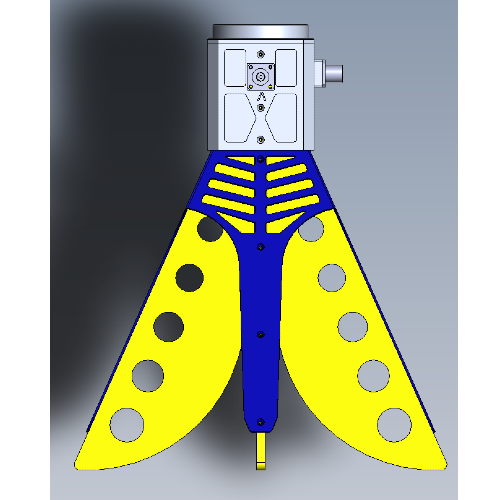

- 700MHz to 6GHz Type:09 Open Boundary Quad-Ridged Broadband Horn Antenna N-Female
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- Taiwan Design, Made in Taiwan
Features:
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
| Model : | HR-07M06G09-NF |
| LxWxH : | 418x350x350mm |
| Connector : | N-Female x 2 |
| Styling : | Dual Polarization Horn |
| Gain : | 3dbi-15dBi |
| -3db Beam-width : | 17 deg- 65 deg |
| N.W. : | 3.45 KG |
| Frequency : | 700MHz-6GHz |
| Polarization : | Vertical and Horizontal or ± 45deg |
| Max Power(C.W) : | 50W |
