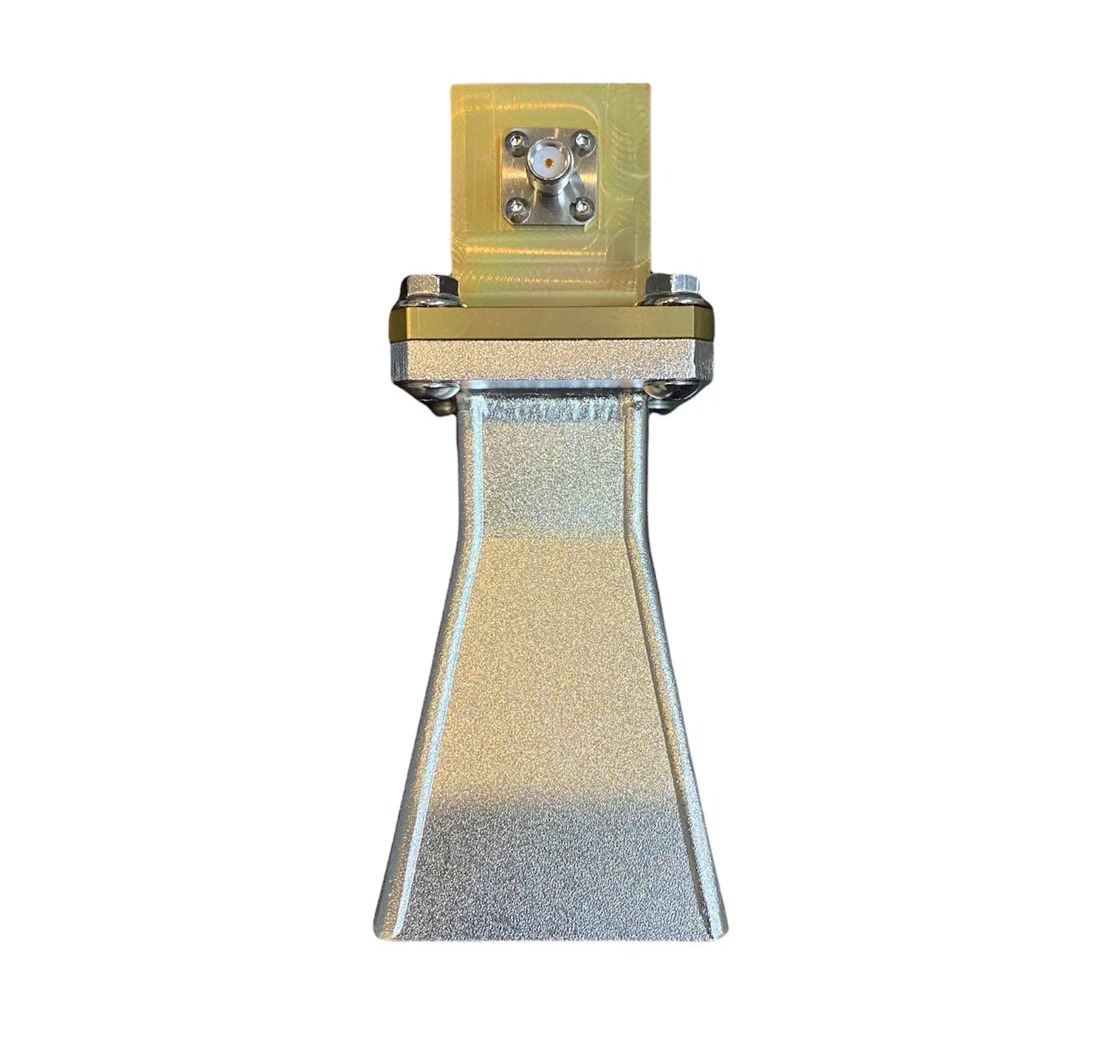

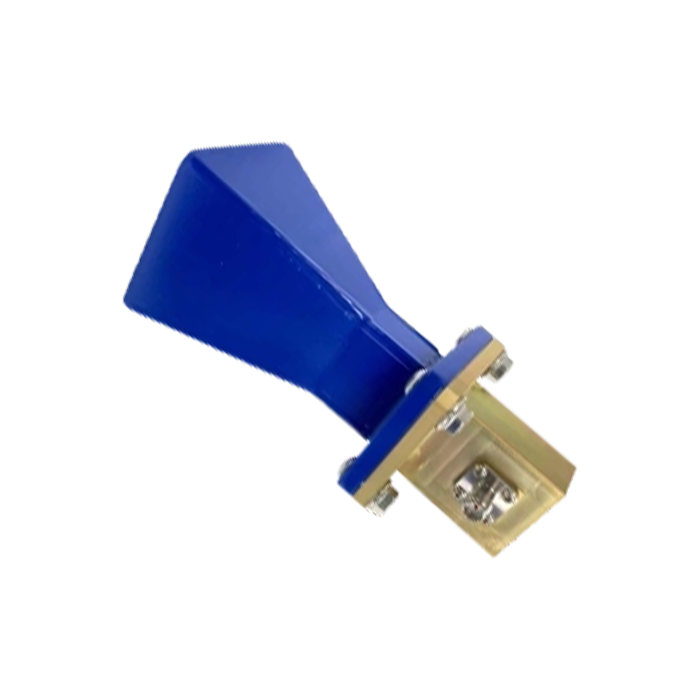

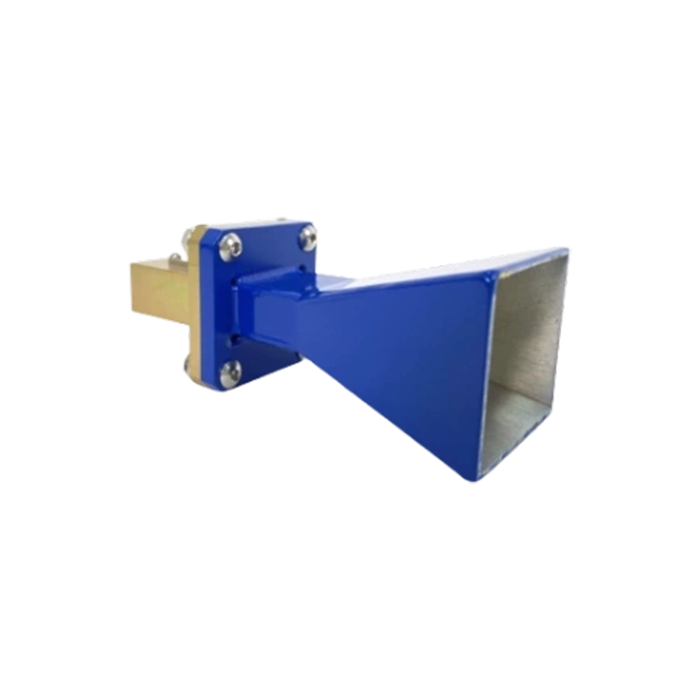

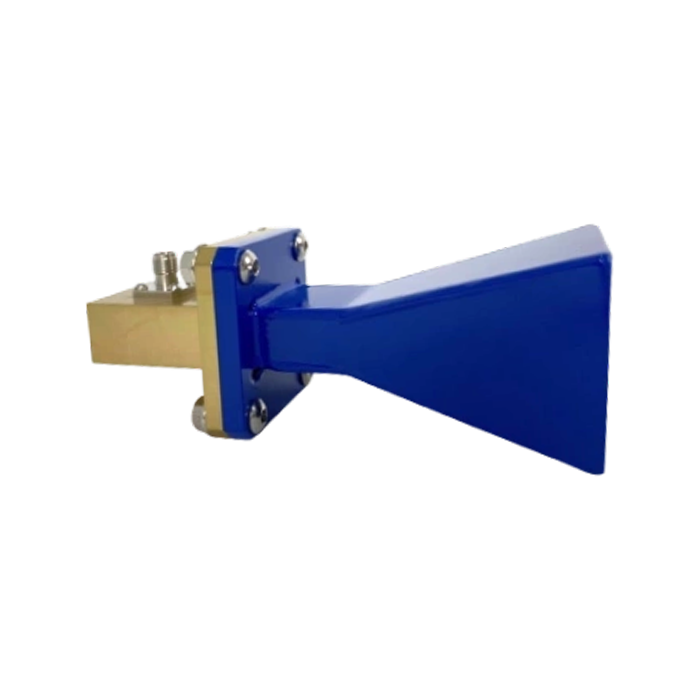

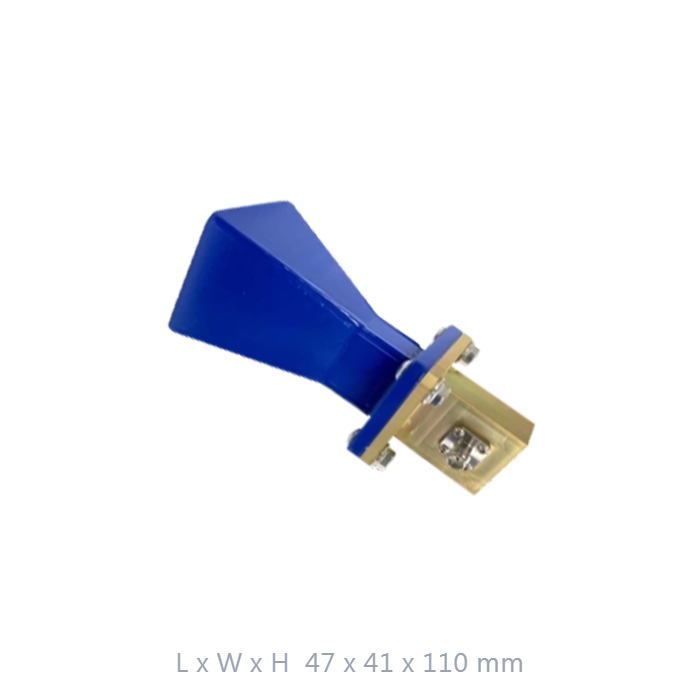

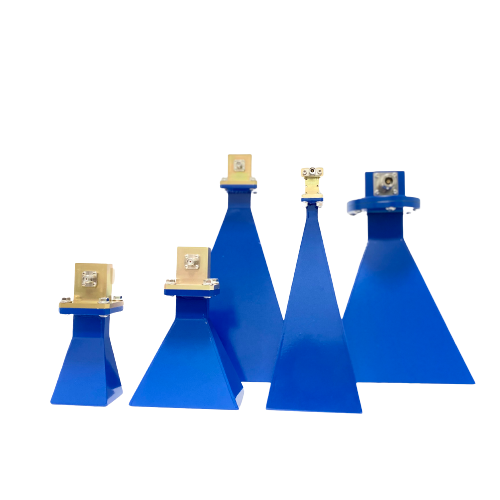

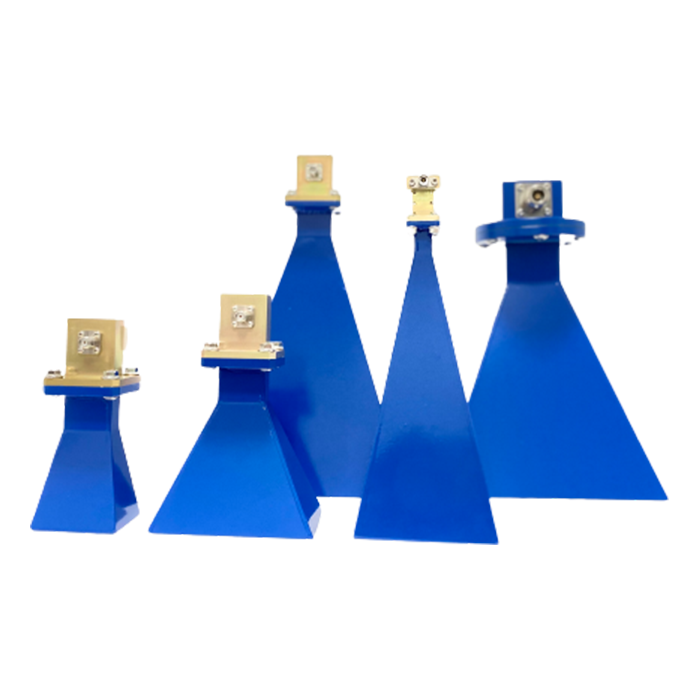

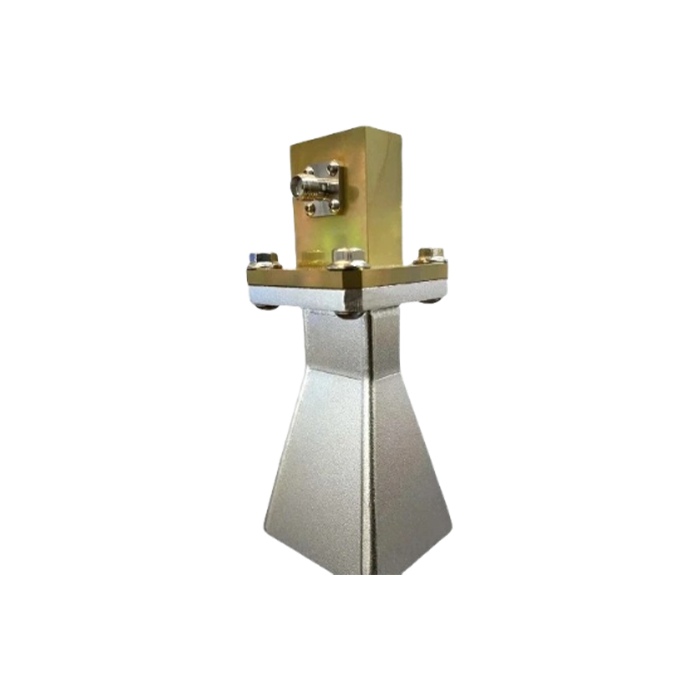

WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 10dbi, SMA-Female Connector, UBR Flange

WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 10dbi, SMA-Female Connector, UBR Flange

Model No: HS-090-UBR-10A-SF

MECHANICAL DRAWING DATASHEET
Model: HS-090-UBR-10A-SF
Frequency Range: 8.2 to 12.4 GHz
Gain: 10 dBi
Waveguide / Flange: WR-90 / UBR
Connector: SMA-Female
Stock: 10+  in stock  | Delivery:  5-7 working days
Quantity:
INQUIRY

  • Description

  • Specifications

  • Video

Applications:

  • Original Model No.: HS-09010A-SF
  • WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 10dbi, SMA-Female Connector, UBR Flange
  • EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
  • Calibration devices that measure the gain of other antennas

Features:

  • Uniform Gain
  • Aluminum metal alloy
  • Consolidated performance database
  • Stainless steel SMA-Female

Electrical Specs

Frequency Range

8.2GHz - 12.4GHz

VSWR

<1.5:1

Antenna Type

Horn

Radiation

Directional

Gain

10dBi - 14dBi

 Polarization

Vertical or Horizontal

Maximum Power

250 Watts

Vertical Beamwidth

41 Degree

Horizontal Beamwidth

43 Degree

Impedance

50 Ohm

Waveguide flange

 UG39/U, UG40A/U(UBR)

Connector

SMA-Female

  Mechanical Specs

Length

110 mm

Diameter

47 x 41 mm

Antenna Weight

150 g

Accessories

N/A

Application

Indoor

Parts Material

Aluminum

Storage Temperature

-20 to +100

Operating Temperature

-20 to +80

Operating Humidity

10%~70% non-condensing

Storage Humidity

5%~50% non-condensing

Safety, Emission and other

RoHS
